The defrost cycle can also be terminated by a pressure switch, where a pressure control is used as the defrost termination switch. … When it senses a pressure that will ensure all the ice is removed from the evaporator, it will close and terminate defrost.

How is defrost termination in this system?

A defrost termination thermostat is mounted onto the coil to detect when the coil is free of ice and will often be set to “terminate” or stop the defrost heat when the coil reaches around 55°F-60°F to ensure that the entire coil is ice-free.

Which component will trigger the defrost cycle?

A defrost cycle runs when the heating component attached to the evaporator coil is activated. During the defrost, the coil runs hot to melt accumulated frost and ice, which allows the evaporator to resume its optimal heat absorption and freezer cabinet cooling functions.

Which valve activates or deactivates the hot gas defrosting cycle?

The solenoid valve on the defrost line is opened, releasing the superheated vapor (on high pressure and high temperature) to the unit cooler, starting defrost process.

What causes a refrigerator to not defrost?

If the defrost sensor fails to shut off the defrost heater, the fuse will blow in order to shut off the defrost heater. If the defrost sensor fuse blows, the defrost system will not work, and the refrigerator will not defrost. … If either the defrost sensor or fuse does not have continuity, replace the defrost sensor.

What is a defrost termination solenoid?

This action by the defrost termination solenoid (release solenoid) prevents the system from sitting idle for 30 minutes in defrost with the heaters off. It terminates the defrost mode and puts the refrigeration mode back into service.

What happens to the evaporator fan motor when the defrost cycle is terminated?

Upon defrost termination there may be a drip down time; a short period of time that will allow the melted frost to drip off the evaporator surface and into the drain pan. In addition, the evaporator fan motors will be delayed from restarting for a short amount of time after the refrigeration cycle commences.

What controls the length of the defrost cycle on most commercial refrigeration systems?

The temperature termination set point controls the length of the defrost cycle. Temperature termination controls can be adjustable or fixed types.

Why the DX evaporator is preferred to flooded type?

Characteristics of flooded systems. An advantage of flooded evaporators is that the potential problem of poor refrigerant distribution in the evaporator is reduced. The refrigerant is 100% liquid, and a liquid stream is much better distributed between the channels compared with the two-phase mixture of DX systems.

What three changes take place during a hot gas defrost cycle to remove ice from the evaporator?

During the defrost cycle, a solenoid valve interrupts the refrigerant flow to the evaporator. Then, the electrical heating elements are energized, and the evaporator fan blows hot air over the evaporator coil, melting the ice accumulated during the refrigeration cycle.

Article first time published on

What is commonly used to control defrost operations?

The temperature-operated defrost method replaces the low-pressure control with a temperature control. The control device is usually a remote bulb-type thermostat. The bulb is attached to the evaporator at the point most suitable for the evaporator used and the temperatures required.

Which component actuates the defrost cycle in frost free refrigerator?

“Frost-Free” refrigerator/freezer units usually use a heating element to defrost their evaporators, a pan to collect and evaporate water from the frost that melts from the cold plate and/or evaporator coil, a timer which turns off the compressor and turns on the defrost element usually from once to 4 times a day for …

How do I stop my Whirlpool refrigerator from defrosting?

  1. Unplug your Whirlpool refrigerator/freezer from the electrical outlet for approximately one minute.
  2. Turn the thermostat(s) to the “OFF” position. …
  3. Plug your Whirlpool refrigerator/freezer into the electrical outlet.

Can a fridge work without a defrost timer?

Refrigerators with defrost timers are called self-defrosting refrigerators. … If your refrigerator is lacking a defrost timer or has one that is not working, it is still possible to run your refrigerator — you just have to defrost it manually. Refrigerators without defrost timers must be emptied out periodically.

How does a defrost termination switch work?

The function of this temperature-activated switch is to terminate defrost when the evaporator coil has been defrosted, and to delay the evaporator fans from coming on immediately after defrost. Defrost time clocks can be programmed for certain defrost duration periods.

For which of the following actions is the last part of the evaporator used?

For which of the following actions is the last part of the evaporator used? Heat flows from the product into the evaporator because: The evaporator is at a lower temperature than the product. How can a technician verify that a condenser and evaporator are an AHRI match?

What is flooded evaporator?

Evaporator is said to be flooded type if liquid refrigerant covers the entire heat transfer surface. This type of evaporator uses a float type of expansion valve. … The refrigerant from expansion valve is fed to these tubes. The liquid refrigerant evaporates inside the tubes and cools the air whose density increases.

What does a defrost timer control?

A defrost timer is nothing more than a motor-driven clock that opens and closes internal contacts that control the electric current flowing to the hermetically sealed compressor and to the defrost heating elements.

How long should the defrost cycle last?

There are timers built into the computer control of the system that restrict how often defrosting can occur. Generally, a unit must run for a minimum of about 35 minutes after starting up before completing its first defrost. From there, defrosts should occur no more often than approximately every 40 minutes.

What is shell and tube evaporator?

The main function of Shell & Tube Type Evaporator is to act as a heat exchanger in a vessel form. This is mainly done to cool closed circuit for re-circulating fluid flow. … The refrigerants passed through the expansion device that passed into tubes and evaporates to produce a cooling effect.

What is the difference between a flooded and a dry type evaporator?

The main difference between dry and flooded evaporators is that the flooded evaporator is full of liquid refrigerant. … The dry evaporator design is the most common: the liquid refrigerant enters and flows through the evaporator and is slowly boiled off (evaporated), leaving the evaporator as a vapor.

What is the difference between a direct expansion and a flooded evaporator?

The difference between a flooded evaporator and a direct expansion evaporator is the presence of a low-pressure receiver. … In a flooded evaporator, the refrigerant is not fully evaporated and heated, while in a direct expansion evaporator, the refrigerant is fully evaporated and heated at a high temperature.

What is coil pressure drop?

A dirty coil has more airflow resistance than a clean coil. For example, a new, clean, residential three-ton cooling coil is rated by the manufacturer to have a pressure drop of . 30” w.c. at 1200 cfm. If you measure coil pressure drop and its . 50”, you know the coil is dirty and must be cleaned.

What causes a walk in freezer to freeze up?

The presence of warm, humid air in your walk-in is the most likely reason for ice build up issues. Your walk-in door may not be sealing properly because of old or damaged gaskets. … Ice can also develop near your drain if your drain line becomes clogged. Clogs cause water to pool and freeze over time.

What does Txv mean in HVAC?

A thermostatic expansion valve (TXV) (see Figure 1) is a refrigeration and air conditioning throttling device that controls the amount of refrigerant liquid injected into a system’s evaporator—based on the evaporator outlet temperature and pressure—called the superheat.

What happens during hot gas defrost?

In hot gas defrost, refrigerant vapor from either the compressor discharge or the high pressure receiver1 is used to warm the evaporator coil and melt the frost that has collected there. The vapor condenses to a liquid during this process, and is then routed back to a protected suction line or to an accumu- lator.

How is the water from the melting frost removed during an automatic defrost?

During the defrosting process, heating elements behind the wall of the unit heat the cooling element (evaporator coil). As a result, any ice formed on the back wall melts and the water runs in the evaporator tray located on the top of the compressor. The heat of the compressor evaporates the water into the air.

How hot does gas bypass work?

The hot gas bypass is a valve that automatically regulates the cooling temperature in the dryer exchanger based on the refrigerant pressure. The pressure measured after the heat exchanger directly correlates to the temperature in the system. A low pressure means there will be a low temperature.

What are the three common types of defrost systems used in coolers and freezer evaporators?

There are several methods we can use to remove ice from evaporator coils and the three most common are air defrost, electric defrost, and hot gas defrost. Water defrost and embedded glycol defrost are less common but are seen in some specific applications, with embedded glycol becoming a bit more popular.

How does heat pump defrost cycle work?

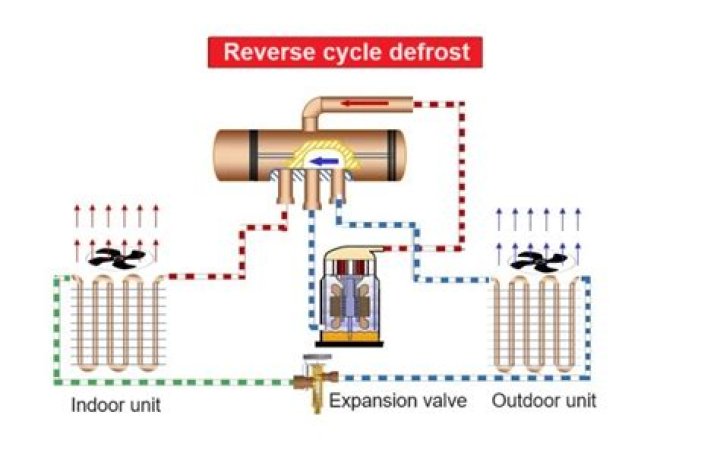

Defrost Cycle A heat pump pulls heat from the outside air and transfers it inside so you get warm. When the temperature outside gets cold (in the mid 30F) the moisture in the air freezes on the heat exchanger. The defrost cycle kicks in to rid the exchanger of this ice.

How does a hermetically sealed compressor work?

In hermetically sealed compressor, the compressor and the motor are enclosed in the welded steel casing and the two are connected by a common shaft. This makes the whole compressor and the motor a single compact and portable unit that can be handled easily.
