In Rommon mode, it can be change with “confreg” command. Below, we are changing Configuration Register as 0x2142. After this configurationi we should reset the router to use this new value,or to force the router boot through this config register.

How do I change the configuration register in Rommon?

In Rommon mode, it can be change with “confreg” command. Below, we are changing Configuration Register as 0x2142. After this configurationi we should reset the router to use this new value,or to force the router boot through this config register.

How do I change my Cisco router configuration register?

  1. Connect a terminal or PC to the router console port. …
  2. Configure your terminal or terminal emulation software for 9600 baud (default), 8 data bits, no parity, and 2 stop bits.
  3. Power on the router.

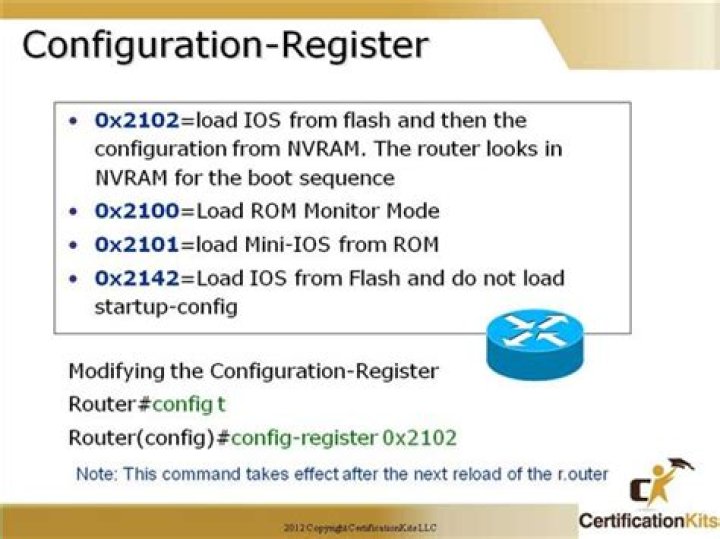

What is config register 0x2102?

The factory-default setting for the configuration register is 0x2102. This indicates that the router should attempt to load a Cisco IOS software image from Flash memory and load the startup configuration.

How do I find Cisco config register?

To view the current setting of the configuration register, establish a console or Telnet session with the router. Issue the show version command, and input the contents into the Output Interpreter.

What is config register 0x102?

The most common configuration register settings are 0x102 and 0x2102. When the configuration register is set to 0x0102, it has the Break key disabled when the router is operating, and it looks into the configuration to determine the boot sequence.

What is config register 0xf?

Config-Register is basically a hexadecimal or decimal value that represents. the 16-bit configuration register value that will be used the next time the switch is. restarted. The value range is from 0x0 to 0xFFFF (0 to 65535 in decimal).

What is config register 0x142?

Symptom: When start-up configuration is ignored by setting ROMMON boot parameter (SWITCH_IGNORE_STARTUP_CFG) or start-up configuration is removed, the default config register value will be shown as 0x142 instead of 0x102. … OR “write erase” is executed and switch is booted.

Which command displays the configuration register setting?

Which command displays the configuration register setting? Explanation: The show version command provides you with the current configuration register setting.

What does Confreg 0x2142 do?

Terms in this set (20) What does the command confreg 0x2142 provide? A. It is used to restart the router.

Article first time published on

What is config register in Cisco router?

Cisco IOS routers and switches use a configuration register for some specific settings. These are settings that are not stored in the startup or running configuration. There are 16 bits (4 hexadecimal digits) reserved for the configuration register.

How do I boot my router from ROMmon mode?

Now let us look at the procedure in detail. To manually boot into the ROMmon mode, you will need to reboot the device and break the boot sequence. Pressing the Ctrl+Break key combination during boot usually does this.

How do you enter ROMmon mode on a Cisco router?

Press break on the terminal keyboard within 1 minute of power up in order to the router into ROMmon. Enter in confreg 0x2142 at the rommon 1> prompot in order to boot the from Flash. Type reset at the rommon 2> prompt. Type no after each setup question or press Ctrl+C to bypass all questions.

Why would you configure a switch with an IP address?

If you want to be able to manage your switch remotely over the network, your switch needs an IP address. If your switch has multiple VLANs configured, and you want to be able to manage the switch from each VLAN, the switch requires an IP address on a VLAN interface in each VLAN.

How are connected routes added to the routing table?

1.1) The routing table of a router stores information about the following: Directly connected routes—These routes come from the active router interfaces. Routers add a directly connected route when an interface is configured with an IP address and is activated.

What is the default configuration register value of Cisco router?

The factory default value for the software configuration register of a Cisco 7500 Series Router is 0x0101. This value is a combination of the following: binary bit 8 = 0x0100 and bits 00 through 03 = 0x0001.

Why is it important to load the startup configuration into the running configuration?

Loading the startup configuration into the running configuration ensures that the original startup configuration remains intact if the user saves during the password recovery process.

How do I restore my Cisco router from Rommon mode?

  1. Either switch off or shut down the router.
  2. Remove the compact flash that is on the rear of the router. …
  3. Switch on the router.
  4. Once the router is on Rommon mode, reinsert the compact flash.
  5. Type confreg 0x2142 at the rommon 1> prompt in order to boot from Flash. …
  6. Type reset at the rommon 2> prompt.

Which Cisco IOS command can you use to examine the configuration register?

The configuration register includes information specifying where to locate the Cisco IOS Software image. You can examine the register with a show command, and you can change the register value with the config-register global configuration command.

What should be done before a new configuration is entered in the router?

The new configuration should be entered and saved. Explanation: Before you start to configure the router, you should erase the NVRAM with the erase startup-config command and then reload the router using the reload command.

What information is displayed by the show hosts command?

Solution(By Examveda Team) The show hosts command provides information on temporary DNS entries and permanent name-to-address mappings created using the ip host command.

Which command will allow you to see real time translations on your router?

Which command will allow you to see real-time translations on your router? Explanation: The command debug ip nat will show you in real time the translations occurring on your router.

What is the meaning of the up up part of the output?

The “up/up” output on the same line as the interface name indicates the Layer 1/Layer 2 interface state. This is the same as the Status and Protocol columns in the equivalent IPv4 command. The output displays two configured IPv6 addresses per interface.

Which command would you type to backup Nvram to a TFTP server?

3. Log in > Go to enable mode > issue a “copy running-config tftp”* command > Supply the IP address of the TFTP server > Give the backup file a name. Note: You can also use startup-config to copy the config saved in NVRAM rather than the running-config.

What is boot system command?

The boot system command allows you to specify not only which IOS images to boot from, but also the order to try them in if it has trouble booting. In the example, this router will try a succession of three different IOS images. If they all fail, it will resort to using its boot ROM image.

Which two of the following commands are required when configuring SSH on your router?

To configure SSH on your router, you need to set the username command, the ip domain-name, login local, and the transport input ssh under the VTY lines and the crypto key command.

Which command will change the configuration register to 0x2100?

Use command “config-regiter 0x2100” to change configuration register setting.

What information does the show startup config command display?

For the Cisco 7000 family, the show startup-config command shows the configuration file specified by the CONFIG_FILE environment variable. The Cisco IOS software informs you whether the displayed configuration is a complete configuration or a distilled version.

What is write erase?

Enter write erase, which erases the NVRAM file system and removes all files. At the prompt, confirm that you want to erase all files. Enter reload, and enter no when prompted whether to save the configuration. (Otherwise, the switch will reload the current running configuration.)

How do you enter Rommon mode without a Break key?

  1. Connect to the router with these terminal settings: 1200 baud rate. …
  2. Power cycle (switch off and then on) the router and press the SPACEBAR for 10-15 seconds in order to generate a signal similar to the break sequence.
  3. Disconnect your terminal, and reconnect with a 9600 baud rate.

How do I switch to Rommon mode?

You should already have a console connection to the Supervisor to see the previous output and perform the recovery. … The reboot continues until autoboot is prevented when you press Control-C and go into ROMmon mode.
