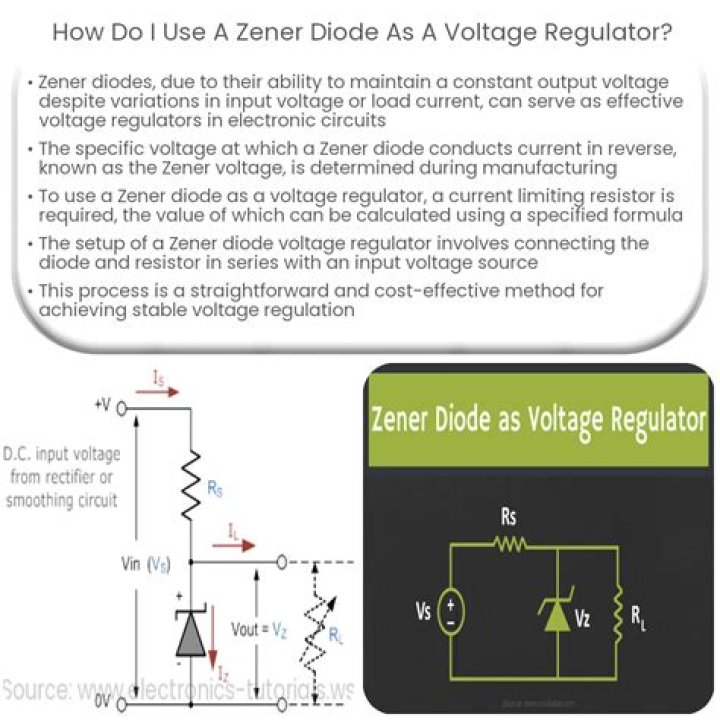

Resistor, RS is connected in series with the zener diode to limit the current flow through the diode with the voltage source, VS being connected across the combination. The stabilised output voltage Vout is taken from across the zener diode.

Do you need a resistor with a zener diode?

The zener diode operates in the diodes reverse breakdown mode. When the reverse breakdown voltage for a diode is exceeded the currrrent is extremely high (called avalanche current flow) and must be limited to avoid damage to the diode. A resistor is used to limit this current to a safe value.

Why do we need series load resistance while connecting zener diode as voltage regulator?

A zener diode can be used as a voltage regulator or voltage stabilizer, to provide a constant voltage from a source whose voltage may vary over a particular range. … The series resistance R is used to absorb the output voltage fluctuations, so as to maintain constant output voltage across RL .

What happens when zener diodes are connected in series?

Connecting Zener Diodes in Series End-to-end arrangements are arranged in series with the cathodes facing each other, or with the anodes facing each other. In this case, one Zener diode will be forward biased while the other is reverse biased.

What is series resistance of zener diode?

Zener impedance is the equivalent series resistance of a Zener diode when it is conducting current. It is calculated as a change of Zener voltage, ΔVZ, that occurs as a result of a tiny change in Zener current, ΔIZ. Zener impedance should ideally be zero, but in reality, a Zener diode has some impedance.

Why do we use Zener diode?

Zener diodes are used for voltage regulation, as reference elements, surge suppressors, and in switching applications and clipper circuits. The load voltage equals breakdown voltage VZ of the diode. The series resistor limits the current through the diode and drops the excess voltage when the diode is conducting.

Why must an external resistor be connected to a diode when connecting to a voltage source?

A diode is connected in series with a resistor because a diode essentially acts like a short while forward biased and a open when reverse biased, when a diode is forward biased its resistance is very very low so it will produce a very high circuit current if a resistor is not added in series to increase the total …

What happens when two Zener diodes are connected in parallel?

If two Zener diodes are connected in parallel, the one with the lower Zener voltage will conduct most of the Zener current, possibly exceeding its allowable power dissipation.

Why diodes are connected in series?

Diodes are connected together in series to provide a constant DC voltage across the diode combination. The output voltage across the diodes remains constant in spite of changes in the load current drawn from the series combination or changes in the DC power supply voltage that feeds them. Consider the circuit below.

Why zener diode is not connected in forward bias?

Zener diode is always connected in reverse direction because it is specifically designed to work in reverse direction. If reverse biased voltage applied to the P-N junction diode is highly increased, a sudden rise in current occurs. At this point, a small increase in voltage rapidly increases the electric current.

Article first time published on

How does Zener diode work?

A Zener diode operates just like a normal diode when it is forward-biased. However, when connected in reverse biased mode, a small leakage current flows through the diode. As the reverse voltage increases to the predetermined breakdown voltage (Vz), current starts flowing through the diode.

How do you find the resistance of a Zener diode?

  1. The resistor has to provide a amount of current through the zener as well as the current to the circuit getting the regulated zener voltage. …
  2. Figure the power supply minus the zener voltage as the voltage across the resistor…
  3. Divide the voltage by the current required, that will give you the resistance.

Which of the following is true about the resistance of a Zener diode?

2. Which of the following is true about the resistance of a Zener diode? Explanation: All of the statements are true for the resistance of the zener diode.

Does Zener diode has incremental resistance?

A Zener diode with an incremental resistance 70 ohm has a nominal voltage 12 V at 12 mA current. If the diode current is one-third of the initial value what will be the voltage.

Why do you need a resistor in a circuit?

In electronic circuits, resistors are used to reduce current flow, adjust signal levels, to divide voltages, bias active elements, and terminate transmission lines, among other uses.

What is used of Zener diode Mcq?

Explanation: A Zener diode is used as a voltage regulator in reverse biased mode. The breakdown voltage in the Zener diode when connected in the reverse-biased is called Zener voltage.

Why diodes should be connected in parallel and series?

Provided enough dissipation in the design, the design can deliver higher current in “diodes in parallel”. Putting diodes in series will add the diode drops together. Reverse leakage (and capacitance) should reduce in this configuration.

Do diodes in series have the same current?

The current rating of the diodes in series is the same as the current rating of one of the diodes. In the reverse direction both series diodes have the same reverse leakage current but as shown, the have different values for reverse voltage.

Can you stack Zener diodes in series?

Yes, it is possible to connect multiple Zener diodes in series in order to obtain a desired Zener voltage, but in this case, care should be exercised as to Zener current, Iz. For series-connected Zener diodes, the maximum allowable Zener current becomes equal to the lowest one among their specifications.

When two identical Zener diodes are connected in series What happens to the breakdown voltage of the combination?

The two zener diodes in series will double the breakdown voltage i.e. it will be 10V.

How is a Zener diode connected in a circuit?

To connect a zener diode in a circuit to provide voltage regulation, the zener diode should be connected, in reverse biased, in parallel to the power source which gives the zener diode its voltage, with the power source connected to a resistor. In this project, we will use a 1KΩ resistor.

When a zener diode is used as a voltage stabilizer it is connected?

Zener diodes are widely used as voltage references and as shunt regulators to regulate the voltage across small circuits. When connected in parallel with a variable voltage source so that it is reverse biased, a Zener diode conducts when the voltage reaches the diode’s reverse breakdown voltage.

Why zener diode is used in reverse bias only?

Zener diode always used in reverse bias condition because.. A reverse biased ,zener diode exhibits controlled the breakdown & allows current to keep voltage across zener diode close to the zener breakdown voltage.

When a zener diode is operated in forward biased then?

When the Zener diode is connected in forward bias it behaves like a normal diode. The current passing through the diode is linear with respect to the applied voltage.

Why is Zener barrier used?

Zener barriers are used in control and instrumentation systems for the processing of standardised signals, such as 20 mA and 10 V. Zener barriers contain intrinsically safe circuits that are used to drive intrinsically safe field devices within hazardous areas.

How do you read a zener diode?

The negative or black lead of the multimeter should be on the cathode or marked side of the diode. A forward-biased silicon diode should read 0.5 to 0.7 volts, so this is the reading you should see for the zener. To test the reverse-biased voltage, switch the multimeter leads.

What will decrease the Zener potential of a Zener region?

The increase in junction temperature results in the decrease of Zener voltage value, which is the basic requirement for the diode’s better functioning in reverse bias. We can control it by adjusting the thickness of the depletion region.

What is true about Zener diode?

Zener diode is also known as breakdown diode as it works in reverse bias breakdown for voltage regulation. It is PN junction (silicon PN junction) diode and has a low specified reverse voltage which takes advantage of any reverse voltage applied to it.

Which of the following is true about a Zener diode?

2. Which of the following are true about a zener diode? Explanation: The operation of a zener diode is made in reverse bias when breakdown occurs. So, it allows currnt in reverse direction.

Does Zener diode has dynamic resistance?

A zener has an internal resistance, think of is as a series resistor inside the diode. … Its a dynamic resistance – it changes with current, temperature etc. Power – Remember your zener will heat up by the amount of power it is dissipating, just like say a linear voltage regulator!

Why the zener diode does offers infinite reverse resistance?

Ideally, the reverse resistance of a diode is considered to be infinite. However, in actual practice, the reverse resistance is not infinite because diode conducts a small leakage current (due to minority carriers) when reverse biased. The value of reverse resistance is very large as compared to forward resistance.
