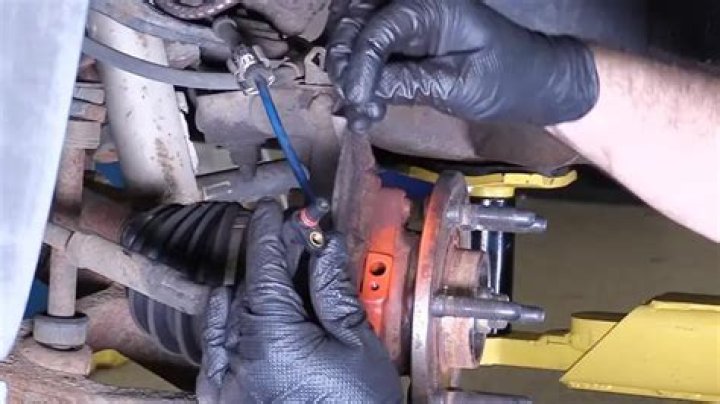

Why do my anti lock brakes keep engaging?
It’s possible for the ABS to engage when it shouldn’t. The most common reason for this is a faulty wheel speed sensor. If a wheel speed senor reads 0 MPH incorrectly while braking, the system will engage and no fault code(s) will be stored.
How much range does regenerative braking add?
Though usually regenerative braking only adds 10-15% more range with city driving and a negligible amount with highway driving, under optimum conditions such as an extended trip downhill, regenerative braking can recharge your vehicle up to 50%. Over time, this can really add up.
What is normal brake pedal travel?
The pedal should feel “springy” and the brakes should feel responsive, controllable, and pull absolutely straight. Usually, the brakes will need bleeding two or three times, and allow them to set for a few days in between bleedings, so the air bubbles all rise to the top.
At what speed does ABS activation?
Generally speaking, ABS doesn’t “kick-in” at speeds below 12-15 mph (20-25 km/h) because the controller (Electronic Control Module) realizes that, when making a turn, the wheels on an axle will, by default, be turning at different speeds.
Can you turn off Tesla regenerative braking?
There was never an option to turn off regenerative braking. The setting was under Driving Settings, enabled changing the level of regenerative braking from Standard to Low. Newer Tesla vehicles do not have the ability to change the level of regenerative braking.
What causes no brake pedal?
An internal failure, corrosion or debris in the brake fluid can cause a valve not to operate properly, resulting in a low or spongy pedal. Important note: If you experience a spongy/soft or low brake pedal, have your vehicle inspected immediately by your mechanic.
How are brake pedals used in Challenge X?
brake pedal positioning sensor which translates the brake pedal position to the ECU in order to control the regenerative braking system. Challenge X: Crossover to Sustainable Mobility is a four-year competition where teams reengineer a Chevy Equinox to minimize energy consumption, emissions, and
What are the requirements for a brake pedal?
There are several basic requirements that our pedal design would have to follow. The physical position and movement would have to be similar if not the same as the stock brake pedal, to be ergonomically pleasing to the driver. Furthermore, our pedal design would not prohibit the use of the friction brakes, as the regenerative braking may not be
How are brake pedals used in regenerative braking?
detect brake pedal movement to be used for regenerative braking. Different design choices were developed, and a final design was chosen with a four-bar linkage with a linear sensor to record brake pedal displacement during the dead band space. A full kinematic, electrical, and structural analysis was conducted on the pedal and linkage.
How are brake pedals used in deep blue?
Different design choices were developed, and a final design was chosen with a four-bar linkage with a linear sensor to record brake pedal displacement during the dead band space. A full kinematic, electrical, and structural analysis was conducted on the pedal and linkage.
