Which radiator hose goes to the thermostat?
upper radiator hose

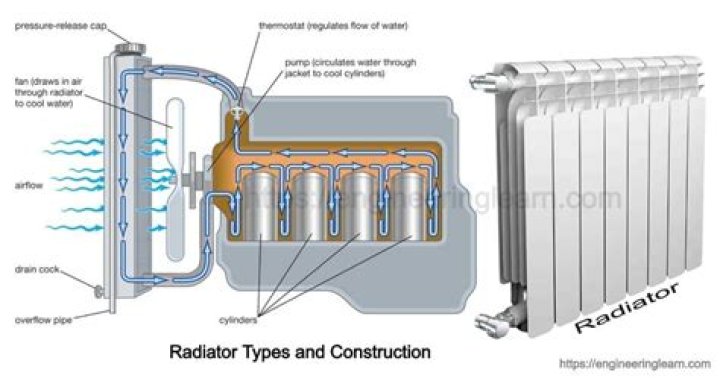

Radiator Hose. Most vehicle cooling systems are comprised of four main hoses. The upper radiator hose is connected to the thermostat housing and to the radiator. From the bottom of the radiator, is the lower radiator hose that is directed to the water pump.
What are signs of a bad radiator hose?
Symptoms of a Bad or Failing Radiator Hose
- Leaking coolant. If you notice green fluid beneath your vehicle, chances are your vehicle is leaking coolant.
- Engine overheating.
- Low coolant.
- Collapsed radiator hose.
- Radiator hose is broken.
What is the coolant system bypass hose used for?
The coolant bypass tube provides a passage for minimum coolant flow, so that the engine does not overheat from insufficient cooling when the thermostat is closed and restricting coolant flow.
Is the lower radiator hose supposed to be cold?
The lower radiator hose should always be cooler than than the upper hose. The upper hose transports hot coolant from the engine to pass through the radiator, while the lower hose transported the cooled coolant from the radiator into the engine.
Why is my car overheating with a new thermostat?
Why is my car overheating with a new thermostat? Your car could be overheating with a new thermostat for a variety of reasons including a faulty water pump, worn belt, clogged radiator, faulty radiator cap or air in the cooling system.
Can you do a coolant flush at home?
Flush the Radiator Remove the radiator cap and pour distilled water into the radiator until full. Replace the cap, then start up the vehicle and let it run for 10 to 15 minutes. This will work the distilled water into the engine, flushing out any loose debris or corrosion along with the last of the old antifreeze.
Why does my car temperature go up when I stop?
Reasons a Car’s Temperature Gauge Spikes at Stops One the reason a car heats up when stopped, but cools when driving, is that air is moving over the engine and causing the fan to spin. Not necessary the end of the engine, but enough to cause some level of damage. Busted fan belt. A fan belt can loosen or just snap.
Where to mount a water temp sensor on a thermostat?
If you are running a thermostat, take the temperature form the stok location in the head.
How to get the top radiator hose to be hot?
1 Remove the splash tray and push the coolant catch tray in. 2 Remove the thermostat cap, usually on the top hose at the engine. 3 Clean the stat seat on the engine and cap. 4 Lube the new stat seal with fresh coolant and fit it, check the orientation (Jiggle valve up). 5 Tighten down the cap bolts and torque to approx 10Nm (89in lbs).
What does the thermostat on a radiator do?
The thermostat has a special function within the circuit, it’s job is to restrict coolant flow back to the radiator when coolant temperature is below 180 deg F (83 deg C). Above this temperature a wax filled cylinder within the stat melts and expands causing the valve to open proportionally until fully open at about 199 deg F (93 deg C).
When does coolant flow back to the radiator?
Coolant is as you know designed to cool your engine, it moves around the the system in a circuit. The thermostat has a special function within the circuit, it’s job is to restrict coolant flow back to the radiator when coolant temperature is below 180 deg F (83 deg C).
Can you put a temperature sensor in a radiator hose?
This adapter allows you to put a temperature sensor with 3/8 NPT threads in your radiator hose. This could be useful if you are looking to add an auxiliary water temperature gauge or fan control kit but do not have a port in the intake manifold or water pump to mount the sensor.
If you are running a thermostat, take the temperature form the stok location in the head.
How does the coolant flow through the radiator?
It is the thermostat which acts as a valve for coolant and allows it to flow through radiator only after exceeding a particular temperature value. Thermostat has paraffin wax in it which expands at a particular temperature and opens it up at that temperature. 4. Coolant Temperature Sensor
How does a water pump cooling system work?
Water pump has a radial impeller inside its casing which is driven by engine itself. Serpentine belt is used to deliver rotational motion of engine main pulley to the water pump pulley. 2. Radiator Radiator acts as a heat exchanger for an engine. it is usually made up of aluminium, and have lots of small diameter pipes with fins mounted on them.
