Which line on master cylinder is for front brakes?

Which line on master cylinder is for front brakes?

Front port goes to rear brakes. Rear port goes to front brakes. The primary port on any two port master cylinder is the port closest to the mounting surface.

Is the brake pedal connected to the master cylinder?

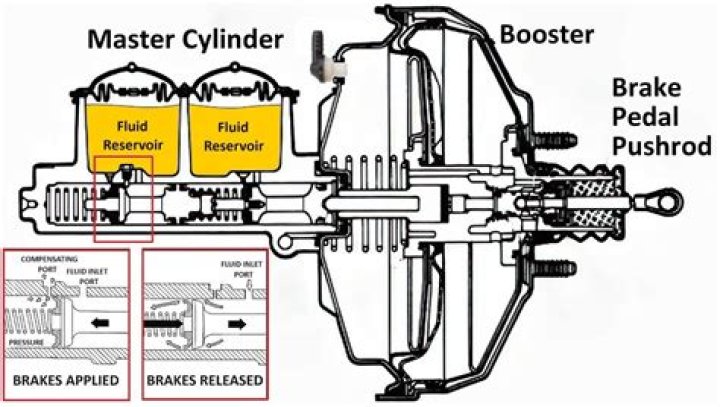

Then, the pressure forces fluid through the brake lines and hoses. For power-assisted brakes, the master cylinder is attached to the Brake Booster. The assembly is mounted on the firewall, in the engine compartment. The brake pedal is linked to the booster.

What is the brake master cylinder connected to?

Where Is The Master Cylinder Found? For manual brakes, the master cylinder is attached directly to the firewall and linked to the brake pedal. In power-assisted brakes, the master cylinder is attached to a brake booster, which supplies more power to the braking system.

What happens if dual master cylinder fails?

What happens if dual master cylinder fails? If the brake line going to one set of wheels is broken or the brake fluid is lost through other means, the other set of brakes will still work properly.

Why does a master cylinder have 2 lines?

So it’s as simple as that. The brake pedal squeezes two pistons inside the master cylinder, which in turn push brake fluid down two separate lines to send equal pressure to all four wheels. The two springs behind the pistons push back when the pedal is released, effectively sucking the pads away from the brake discs.

Which is front and which is rear in a master cylinder?

Master Cylinder Primary and secondary sides, which is front and which is rear? Just uncrossed the brake lines on the frame / fender valve body, as mine, being an 87 had “crossed” brakes. I also took out the rear prop valve as I will be installing an adjustable prop valve at the MC.

Is the master cylinder outlet bigger than the rear brake port?

You’re right, but things are more complicated than that. Even if the rear brake port had a bigger flow area at the master cylinder outlet, the added length of the rear brake lines would make up for it. Either one is a pressure drop, and will limit flow.

Can a master cylinder be stepped on aftermarket brakes?

This feature applies the rear brakes first, which is a good thing on rainy or icy roads. It doesn’t really matter hardly at all on a dry road. But, back to simpler things, the master cylinder bore is not stepped on any GM or aftermarket master cylinder we’d be dealing with for aftermarket brakes on our cars.

Which is front or rear on a Chevy Master?

Pretty much all Chevy masters (early, not new stuff) are front-front, rear-rear. The Vet master is no exception, both bowls same size for 4 whl disc (66-81) but the front is for front brakes.

Which is the primary port on the brake master cylinder?

There are two ports on the brake master cylinder where brake lines connect…referencing the picture in the link below, which one is primary and which one is secondary? Thanks!

This feature applies the rear brakes first, which is a good thing on rainy or icy roads. It doesn’t really matter hardly at all on a dry road. But, back to simpler things, the master cylinder bore is not stepped on any GM or aftermarket master cylinder we’d be dealing with for aftermarket brakes on our cars.

What’s the difference between front and rear master cylinder plumbing?

On the other hand, I’ve never seen any evidence or a good argument that a front port or rear port acted any differently on a GM master cylinder, regardless of the reservoir size. There is a difference, the rear puts out less than the front, at least when you bench bleed them the rear appears to flow less.

Pretty much all Chevy masters (early, not new stuff) are front-front, rear-rear. The Vet master is no exception, both bowls same size for 4 whl disc (66-81) but the front is for front brakes.
