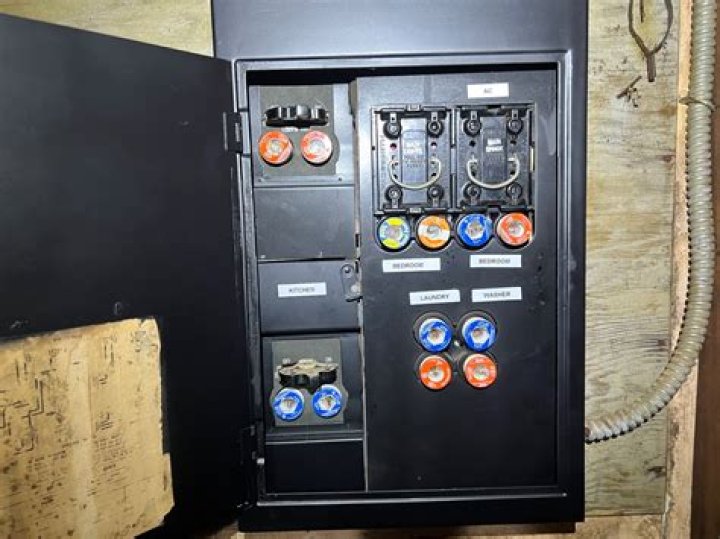

Which fuse is used in Control Panel?
Cartridge fuses They are available up to 600A and 600V AC and widely used in industries, commercial as well as home distribution panels. There are two types of Cartridge fuses. 1. General purpose fuse with no time delay and 2.
How do you know if a fuse is AC or DC?
The voltage rating is usually shown on the fuse and is expressed in Volts. Fuses are usually rated for either voltage AC (eg. 250VAC) or voltage DC (eg. 32VDC).
Can you use a DC fuse for AC?
It’s possible to put a higher rated fuse in a circuit but the amperage is the same. You shouldn’t put a lower rated fuse in a higher rated circuit. The DC fuse wouldn’t work in an AC circuit. …
How do you determine the size of a DC fuse?
B Calculate MINIMUM FUSE AMPERAGE by multiplying product amperage rating by 125%. Minimum fuse amperage provides more protection for the wire but may result in nuisance blows. Example: 80A x 125% = 100A.
Can I use a DC fuse for AC?
The safest answer is; No, DC and AC fuses cannot be used interchangeably. Since many people will not remember which one can be used in place of the other, the prudent recommendation is to discourage any exchange, as a rule. The safest answer is; No, DC and AC fuses cannot be used interchangeably.
Can we use fuse for DC?
Can fuses with an AC voltage rating be used in a DC applications? Fuses must be rated for the voltage AC or DC in which they will be used. Generally, fuses have a DC voltage rating that is half of the maximum AC voltage rating.
How are 120 volt AC appliances protected by fuses?
The 120-volt AC appliances are protected by residential style circuit breakers. The 12-volt DC operation is protected by automotive style fuses and provide power for the roof vents, lights, water pump, and appliance operating on the LP mode. Fuses are not like breakers, meaning once they blow they have to be replaced.
Are there any fuses that work with both AC and DC?
On the other hand, fuses are mostly indifferent to AC or DC, or even differences in voltage. Older-style circuit boxes employing fuses that no longer meet Code for AC wiring will work fine for DC circuits. Up to ratings of 30 Amps, the new style of automotive fuses are also great for DC systems. Standard receptacles will work for DC or AC.
What does it mean when a Fuse goes bad on an RV panel?
Newer RV distribution panel models will have lights underneath the fuses and if the light is on, it is indicating the fuse has gone bad. When working with an RV distribution panel make sure that all power coming into the panel is disconnected and you are wearing the proper safety goggles.
Why do you need a 12 volt DC fuse?
The 12-volt DC operation is protected by automotive style fuses and provide power for the roof vents, lights, water pump, and appliance operating on the LP mode. Fuses are not like breakers, meaning once they blow they have to be replaced.
How to troubleshoot no power and circuit breaker not tripped?
Verify the voltage is correct. No power at the connection terminal while the circuit breaker is in the On position indicates a defective circuit breaker. Remove the receptacle cover from the outlet without power. Check for voltage at the wire connection terminals on the side of the receptacle.
Is the fuse box still in the House?
Most people nowadays have had the old-fashioned fuse panels (also known as fuse boxes) in their homes replaced by modern electrical panels with circuit breakers–if the fuse boxes were even still there when they purchased their houses.
What should I do if I Blew my Fuse?
The Fix: Make sure the faulty device is unplugged and there is no damage to the outlet. First, test the circuit. Then check for any damage on or around the electrical panel. If you see any damage, call an electrician before doing anything else with it. If there is none, flip the breaker switch back to its operating position.
What does it mean when a breaker or Fuse goes off?
So a breaker or fuse going off is often a sign that something else is wrong: a symptom, not a cause of your problem. The problem may be easy to fix or it may not be. Many appliances have sensors on their mechanical parts that will kick a breaker or blow a fuse rather than allow the appliance to continue running in an unsafe mode.
