Which cable is positive on a solar panel?

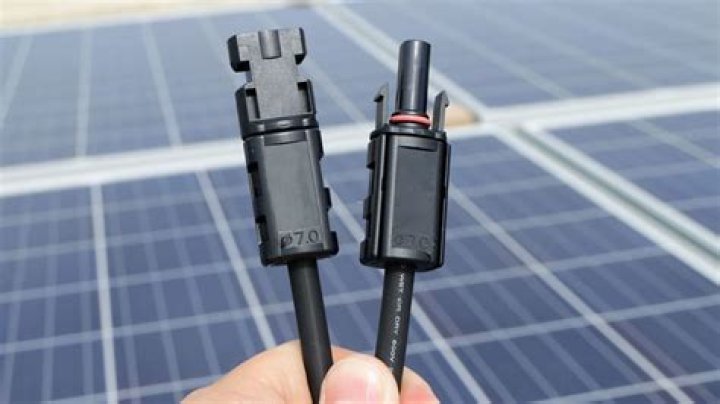

Wiring MC4 Equipped Modules in Series: One wire is the DC positive (+) and the other is the DC negative (-). Generally, the female MC4 connector is associated with the positive lead and the male connector is associated with the negative lead.
What happens if you wire a solar panel backwards?
PV panels are a source of power so connecting them backwards, at least in daylight, is more likely to damage your circuits than damage the panel.
How do you wire a mismatched solar panel?
1) Use panels that have the same ratings. 2) When connecting different solar panels, in order to minimize the losses: Connect only in series panels of the different brands and of the same current. Connect in parallel panels of different brands and of the same voltage.
How can you tell if a solar panel is positive or negative?
To measure across the solar panel terminals or wires, put the red positive meter lead on one side, and the black negative on the other. Switching them over shows a positive number, with no negative symbol, so the red meter lead is on the positive, and the black meter lead is on the negative.
What are the positive effects of solar panels?
Top 4 Ways Solar Positively Impacts the Environment
- Going solar will reduce greenhouse gas and CO2 emissions.
- Add an electric vehicle (EV) and drive on sunshine.
- Solar reduces water pollution.
- Solar reduces strain on finite resources.
How can you tell the polarity of a solar panel?
Another way to find the polarity of the solar panel is to check with a volt meter. A simple voltage reading will show you the polarity of a solar panel, even when inside. To measure across the solar panel terminals or wires, put the red positive meter lead on one side, and the black negative on the other.
Are ZAMP solar panels reverse polarity?
Is the Zamp Solar port reverse polarity? No, but they are different from other brands of solar ports because all of our SAE plugs are polarity-protected for safety reasons.
How do you wire solar panels in parallel?
Wiring solar panels in parallel simply means combining all of the positive wires together into one wire that will go to the charge controller and combining all of the negative wires together into one wire that will go to the charge controller. To combine the wires from the solar panels, you will need to use MC4 branch connectors.
What does white wire mean on a solar panel?
White for negative denotes this is a grounded system and the negative is grounded. Grounding the positive is also NEC compliant and would thus have a white wire carrying positive. If this is an ungrounded system (also compliant in some circumstances) then neither wire should be white.
What are the colors of a solar panel?
But since some of the wires will be exposed to UV light from the sun, the only two colors you will eventually have are black (UV resistant) and white (starting white or bleached to look white).
What kind of wire do you use for solar panels?
Standard wire is the typical choice for larger and outdoor installations. Solar wires can also be classified based on the conductor material used. For domestic and commercial installations, the use of aluminum and copper solar wires is common. Copper wire has superior conductivity compared to aluminum.
What kind of wire does a solar panel use?
As a practical matter many systems use black for all wires and identify the ends (which will be protected from the sunlight) with colored tape, colored plastic rings, etc. SunnyBoy 3000 US, 18 BP Solar 175B panels.
But since some of the wires will be exposed to UV light from the sun, the only two colors you will eventually have are black (UV resistant) and white (starting white or bleached to look white).
What are the steps to wiring a solar panel?
Broadly, there are 5 steps for you to wiring the solar power system Let’s Connect the solar energy system one by one. Note: Short circuit between the positive and negative terminals of the battery or short circuit between the positive and negative wires of the terminal may cause fire and explosion.
Which is the positive cable on a solar panel?
If not your going in the right direction. Only your Meter knows. If you want a legal installation that conforms to code then the wires should be two different colors and the negative one should always be white. The positive can be any color but is usually black.
