Where is wiper linkage?

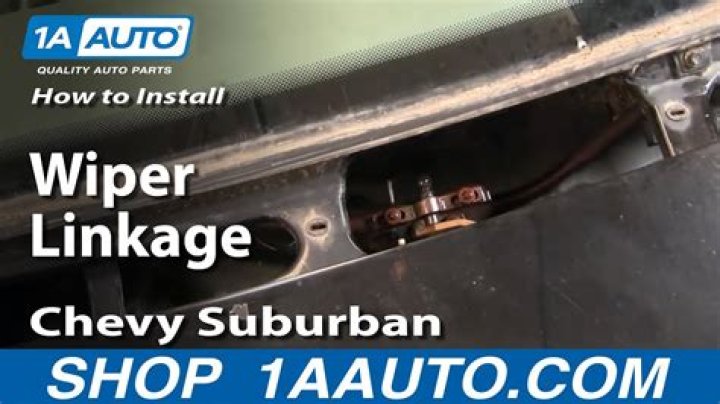

Wiper motor in a car. Working windshield wipers are vital for driver visibility. The vehicle is considered unsafe if the wipers don’t work. The front wiper motor and the wiper transmission mechanism (linkage) are installed below the windshield, under the cowl panel cover.
How do I reconnect my wiper linkage?
Part 1 of 1: Replacing the windshield wiper linkage
- Materials Needed.
- Step 1: Move the wipers to the highest position.
- Step 2: Disconnect the negative battery cable.
- Step 3: Remove the wiper arm nut cover.
- Step 4: Remove the wiper arm retaining nut.
- Step 5: Remove the wiper arm.
- Step 6: Raise the hood.
How do you remove windshield wiper linkage from motor?
How does a wiper linkage work?
The output of the gear reduction operates a linkage that moves the wipers back and forth. The circuit maintains power to the wipers until they are parked at the bottom of the windshield, then cuts the power to the motor. This circuit also parks the wipers between wipes when they are on their intermittent setting.
Why does only one wiper work on my car?
If the nut is a little loose – which is common – the wiper motor will turn the pivot but the wiper arm will not move. You may notice only one wiper working while the other stays at the bottom. If you have this issue, make sure the wiper pivot nuts are tight.
How do I know if my windshield wiper linkage is bad?
Common signs include wiper blades rotating out of sequence, sputtering while operating, not moving at all, and making a grinding noise.
What to do if wipers stop working while driving?
The first thing to check is the fuse. If the fuse is good, you can use a test light to make sure there is power at the fuse and to the wiper motor. Simply touch the test light to both metal tabs on top of the fuse and to the tabs on the wiper motor connector, with the power on, and, if it lights up, you are good.
How much does a windshield wiper transmission cost?
The average cost for a windshield wiper motor replacement is between $339 and $406. Labor costs are estimated between $80 and $102 while parts are priced between $259 and $304.
