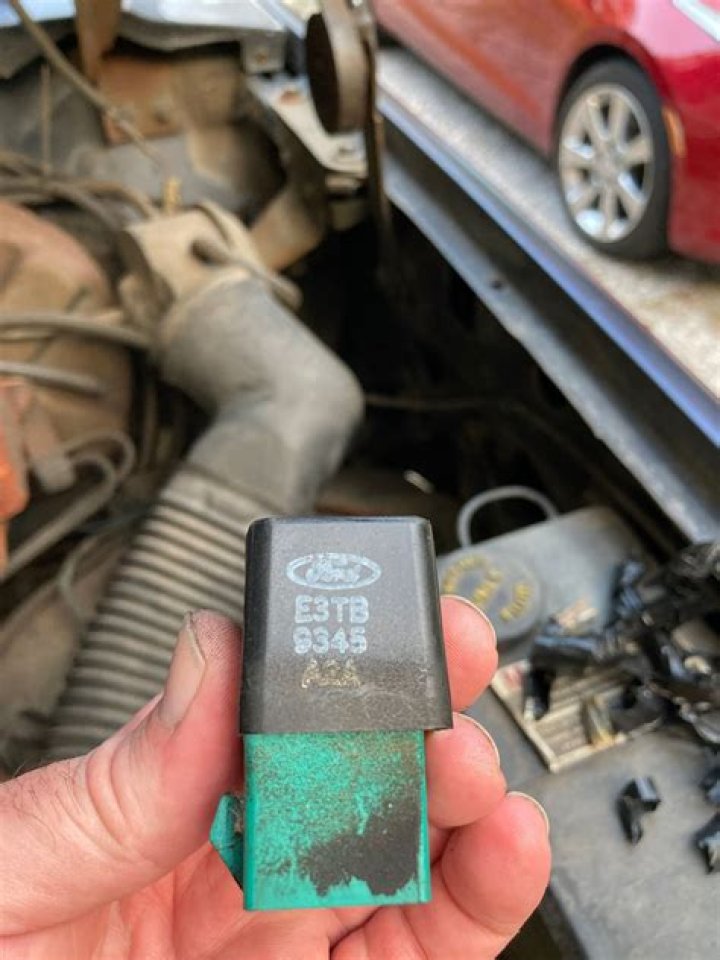

Where is the fuel pump relay on a Ford?
The fuel pump relay of a Ford pickup, also known as the fuel shut off switch, is located in the passenger foot well, behind the behind the kick panel and inside the fuse panel.
Where is the fuel pump fuse on a 2000 Ford F150?
The fuel pump relay is located inside the Battery Junction Box. The Battery Junction Box is located on the left side of the engine compartment.
Where is the fuel pump reset switch on a Ford F150?
The F-150’s pump can be reactivated by resetting the cut-off button to enable start again. The inertia switch for a ford f150 is located on the front part of the passenger door, behind the footwell cover, which is underneath the glove box.
Can you jump a fuel pump relay?
You can jump it, but you must have the ignition switch in the run position or else the relay will not stay closed. The fuel pump primes when the ignition switch is in run. If you want to jump the fuel pump relay it will be pin 30 to 87.
Is it OK to bypass fuel pump relay?
Jumpering or bypassing the fuel pump relay puts a constant +12VDC to the fuel pump. Basically you have voltage directly from the battery to the fuel pump, even with the engine turned off. You could use a jumper assembly with a toggle switch to manually turn on and turn off the fuel pump.
How does the fuel pump relay work in a Ford?
The fuel injection computer then grounds circuit 1. This activates the fuel pump relay to pass current from circuit 4 to circuit 3. Circuit 3 is the one that runs to the fuel pump (via the Inertia Switch) and delivers the voltage/current it needs to activate.
Where was the infamous 15528707 fuel pump relay?
The infamous 15528707 fuel pump relay. This is more of a seed than anything to help out others. Drove motorhome 100 miles home after purchase, tried starting a few days later and poured gas on the ground. Replaced hose at filter and electric fuel pump on rail behind battery box (not stock pump).
Can a 109 fuel pump relay be replaced?
Re: The infamous 15528707 fuel pump relay. You can replace with a standard 109 relay but lose the prime feature and no start shutoff feature. Or contact these folks and have your original repaired (they repaired my wiper module) Re: The infamous 15528707 fuel pump relay. I have a 86 winnie c30 chieftain.
Is there no power to the fuel pump?
No power to the fuel pump and the fuel relay is not getti… Q: No power to the fuel pump and the fuel relay is not getting power. My car has 190000 miles.
The fuel injection computer then grounds circuit 1. This activates the fuel pump relay to pass current from circuit 4 to circuit 3. Circuit 3 is the one that runs to the fuel pump (via the Inertia Switch) and delivers the voltage/current it needs to activate.
The infamous 15528707 fuel pump relay. This is more of a seed than anything to help out others. Drove motorhome 100 miles home after purchase, tried starting a few days later and poured gas on the ground. Replaced hose at filter and electric fuel pump on rail behind battery box (not stock pump).
How can I tell if my fuel pump relay is old?
Unless someone has changed the wiring or it may be old as well. it should be brown on one side and pink on other. regardless check for power on both sides if power on one but not the other then the inertia is bad or the switch has popped.or you can use an ohm meter and see if you get 0 through both.
Re: The infamous 15528707 fuel pump relay. You can replace with a standard 109 relay but lose the prime feature and no start shutoff feature. Or contact these folks and have your original repaired (they repaired my wiper module) Re: The infamous 15528707 fuel pump relay. I have a 86 winnie c30 chieftain.
