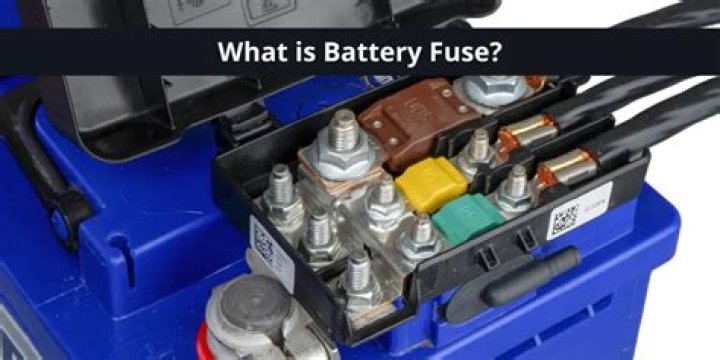

Where is the battery fuse on an ECM?
The first thing to check is the ECM Battery fuse located in the power distribution center. In this video we show you how! Loading…
Where does the power come from on a Ford EEC relay?
This voltage comes from the ignition switch. Power (in the form of 10 to 12 Volts) is always present in circuit 4 . This voltage comes directly from the battery positive terminal across a fusible link on the starter motor solenoid (on the fender). Ground is always present on circuit 1.
What are the numbers on the fuel pump relay?
A high current circuit. This circuit can be identified by the wires labeled with the numbers 3 and 4. This is the circuit that delivers the voltage (and thus current) to the fuel injection computer (EEC Electronic Control Assembly), fuel injectors, fuel pump relay, etc.
Where does the power come from in the Brown relay?
Power (in the form of 10 to 12 Volts) is applied to circuit 2 . This voltage comes from the ignition switch. Power (in the form of 10 to 12 Volts) is always present in circuit 4 . This voltage comes directly from the battery positive terminal across a fusible link on the starter motor solenoid (on the fender).
Where do you find the fuel pump relay?
When you shut off the ignition, it powers down the fuel pump. In most vehicles, the fuel pump relay can often be found in the fuse box in the engine bay, which is usually a long black box which contains fuel pump relay along with various other fuses and relays.
What to do if your ECM power relay is failing?
For this reason, if you suspect that your ECM power relay may be having an issue, have the vehicle inspected by a professional technician, such as one from YourMechanic, to determine if the relay should be replaced. The most popular service booked by readers of this article is Vehicle Engine Electrical Inspection.
Why does my ECM 1 fuse keep blowing?
If the wires leading to the O2 sensor rub against the exhaust, it creates a ground; once the O2 sensor is grounded, the fuse to the ECM 1 blows. The O2 sensor must be installed in a different place to ensure the wires do not short-circuit.
What happens if the ECM fails on a car?
The fuel and ignition systems, as well as several other engine management functions, of many vehicles are controlled by the ECM. If the ECM or it’s relay fail, the entire engine management system will be left without power and will not function as a result.
