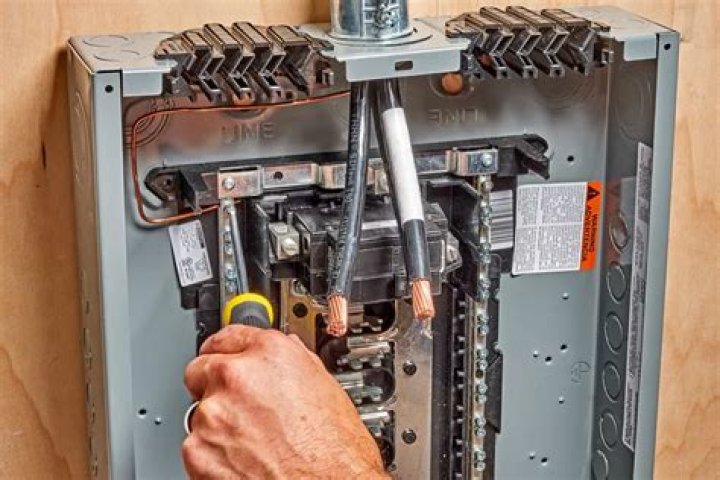

Where does the main ground wire go in a breaker box?

Where does the main ground wire go in a breaker box?

If it’s the main panel, it goes into the neutral bus bar. The ground and neutral wires go into the same bar. If it’s a sub panel then there needs to be a separate neutral and ground bus bar. In that case then it goes to the ground bus bar.

Do neutral and ground go to the same bus?

If the main service panel happens to be the same place that the grounded (neutral) conductor is bonded to the grounding electrode, then there is no problem mixing grounds and neutrals on the same bus bar (as long as there is an appropriate number of conductors terminated under each lug).

What is a bus bar in an electrical panel?

In electric power distribution, a busbar (also bus bar) is a metallic strip or bar, typically housed inside switchgear, panel boards, and busway enclosures for local high current power distribution.

Can you replace bus bar?

Occasionally the bus bar becomes pitted and worn with time, requiring replacement. You can replace this yourself with some safe work habits and a few hours of time.

How can I tell if my breaker box is grounded?

The simple way to find out is to use a volt meter and put the red lead in the hot side of the outlet or touch it to the black wire. The other lead touch it to the metal box. If you get a reading of around 110 to 120 volts it’s grounded.

Does my breaker box need to be grounded?

Without a grounding wire, the circuit breakers on your electrical panel board may not work properly. Circuit breakers will trip if there’s a fault in the system. Because the wire touches the metal enclosure, the circuit would not be broken and the circuit breaker would not trip to cut power to the circuit.

Can you burn out a breaker?

Yes, circuit breakers can wear out and need to be replaced. We say this because we get this question a lot when a circuit breaker: Keeps tripping or. Is in the “on” position, but there’s no power to your outlets.

What causes a bus bar to melt?

Overheating/melting is due to poor connections not current draw. For there to be heat there has to be resistance. It does sound like at the very least you will need a new panel as the old one is damaged. This may also require all new breakers.

Where does the neutral bus run in a breaker box?

One bus runs vertically along the left side of the panel. The second bus runs vertically along the right side. A third metal bar, the neutral bus, receives the electrical current back again after it has exited the breaker box and flowed throughout your home doing its work.

How are the wires in a breaker box wired?

Each circuit has two hot wires feeding into the breaker, as well as a neutral wire that connects to the neutral bus. Together, these three wires exit the breaker box and go on to provide the juice for their designated circuit. There are two main types of breakers:

Where is the main switch on a breaker box?

At the top of the breaker box, the switch that’s bigger than the others is commonly referred to as the “main.” (Technically, it’s called the double pole service disconnect.) This is where, after passing through your electricity meter, two hot wires from the utility company hook up to your house. Each wire carries 120 volts.

Where does the grounding wire go on a shore power sail?

The neutral-side connection will have a silver terminal screw, and the hot side will have a brass, or dark-colored, terminal. Make it clear on the drawing that the white wire connects to the silver terminal and the black wire goes to the brass. Shoreside AC circuits in North America have a third wire, which is called the grounding wire.

One bus runs vertically along the left side of the panel. The second bus runs vertically along the right side. A third metal bar, the neutral bus, receives the electrical current back again after it has exited the breaker box and flowed throughout your home doing its work.

Can a ground wire be run into a breaker box?

You can now run the wire into the breaker box. Where you connect the wires depends on the number of wires you have to connect. In all cases, however, the ground wire will connect to a bar; which bar will depend on the age of the breaker box. With three-wires installation, one wire will be green, one will be white, and the last will be black.

Where are the Breakers on a split bus panel?

At the back of the panel box, the two bus bars (vertical strips of metal that connect to each breaker to supply power to the wiring) are separated in the middle, with all of the main breakers connected to the top bus sections.

At the top of the breaker box, the switch that’s bigger than the others is commonly referred to as the “main.” (Technically, it’s called the double pole service disconnect.) This is where, after passing through your electricity meter, two hot wires from the utility company hook up to your house. Each wire carries 120 volts.
