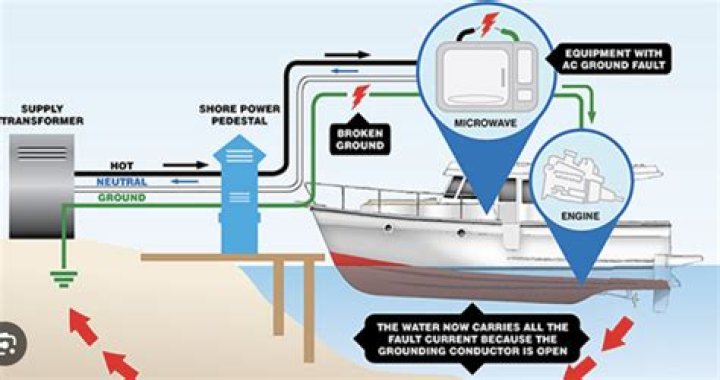

Where does the AC current come from on shorepower?
The AC current can be described as coming in through the black wire and exiting through the white neutral, while the green grounding wire carries no current at all.
Why do I have trouble plugging in shore power?
If you have had trouble lately plugging into shorepower, you are not alone. What used to be a relatively simple and reliable procedure has become a bit of a guessing game with new regulations aimed at reducing risk of electric shock, both to those onboard and those swimming near boats in marinas.
How to calculate the short circuit rating of a generator?
Rating (Sr). The rating power of the generator in kVA. Impedance (Zk). The short circuit impedance of the generator as a percentage. The short circuit impedance can be specified for the sub-transient, transient or steady state phase of the generator fault. For simplification the resistance can be ignored and only the reactance can be considered.
Why is the green wire on standby for shore power?
In this drawing (fig. 1) we can see that the hot and neutral wires bring shore power to the appliances. The green wire is on “standby,” with no current flowing through it. If current does flow in the green wire, a “ground fault” has occurred.
How to troubleshoot a direct excited generator ( brush )?
Troubleshooting “Direct Excited” (Brush Type) Generators Refer to Figure 3.17 Test 1:— Check AC Output Voltage & Frequency Connect the test leads of an AC voltmeter or a volt-ohm- millimeter VOM into a generator receptacle.Also connect an (AC) frequency meter.Disconnect any electrical loads.
What kind of windings are in a BC generator?
The BC generator is a brushless, self-excited generator which requires only the driving force of the engine to produce an AC output. The stator houses two sets of windings; the main stator windings and the exciter windings.
How do you turn on a generator in a coach?
Be sure all loads are turned off, then plug the shoreline cord into that receptacle and start the generator. If all the breakers are set properly, you should get power to the coach. Of course, you may have a problem with the transfer switch itself if your coach is so equipped.
What kind of power does a 30 amp camper use?
On this trip we are speaking of, we were staying in a 30-amp campground we had used before, in the spring, summer, and fall, and where we had never had any problems with our RV or its appliances, AC, heat, or fridge. We were connected to the site’s utilities, including AC power, water supply, and a sewer hookup.
What happens to batteries when plugged in to shore power?
When plugged into shore power at the campground, presumably the AC to DC converter will charge the auxiliary battery bank. All the lamps, fans, water pump, etc., still operate on 12-volts DC, just that the DC electricity is provided by the converter instead of the batteries while plugged in.
On this trip we are speaking of, we were staying in a 30-amp campground we had used before, in the spring, summer, and fall, and where we had never had any problems with our RV or its appliances, AC, heat, or fridge. We were connected to the site’s utilities, including AC power, water supply, and a sewer hookup.
When plugged into shore power at the campground, presumably the AC to DC converter will charge the auxiliary battery bank. All the lamps, fans, water pump, etc., still operate on 12-volts DC, just that the DC electricity is provided by the converter instead of the batteries while plugged in.
What’s the difference between 50 amp and 30 amp service?
On the other hand, large RVs usually have 50-amp service to power their more lavish setups (think double AC units, washer/dryers, etc.). 50-amp plugs have two 120-volt hot pins, a flat neutral pin, and a round ground.
Can a 30 amp outlet be connected to a 50 amp outlet?
Sometimes only a 30-amp outlet is available, but you have a 50-amp cord. Or maybe you want to hook up to a home outlet to store your RV for the winter. Fortunately, adapters make it easy to hook your 30-amp cord to a 50-amp outlet (or vice versa), plug into a generator, or connect to a home outlet.
