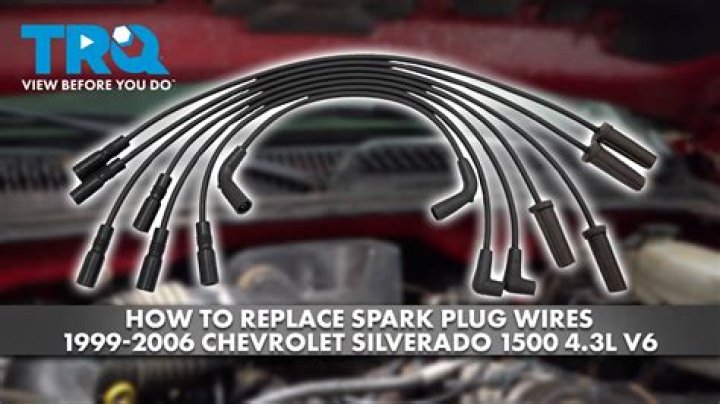

Where do the spark plug wires connect to?
The wire from each spark plug is just long enough to reach the distributor, without excess. Each end of a spark plug wire has a metal terminal that clips onto the spark plug and distributor, coil, or magneto.
Are spark plug wires directional?
Depending on how the secondary winding is connected to the spark-plug wires (through the distributor), the resultant current could presumably be in either direction. Is there a good reason for current to flow “towards” the spark plug versus “away” from the spark plug?
Can you put spark plug wires on wrong?
Putting spark plug wires is an easy process, but you need to be very careful. If you place the spark plugs wrongly, then it will affect the performance of the engine. If your mistakes are more severe by interchanging more than two plugs, the engine will not start.
Are spark plug wires all the same?
Does size matter? For overall spark transfer, not necessarily. However, thicker wires, like these Moroso Super Max II 11mm wires, can provide added RFI suppression and insulation. That’s why it’s important to select a good quality set of spark plug ignition wires to deliver juice to your spark plugs.
Is there a difference between spark plug wires?
The major difference is the materials, such as the conductor wire, that make up these replacement wires. These are much more durable than the standard wires that come with your car. The wires are designed with a fiberglass braid that quickly and efficiently sends a spark to your spark plugs.
Can spark plug wires add horsepower?
While spark plug wires may not “make” horsepower in the traditional sense of adding a performance part to your engine, they can certainly help create the strongest, hottest spark for your combustion chamber, which aids in helping all your other performance engine upgrades like heads, cam, and carburetor to make the …
How are spark plug wires connected in the correct order?
However, the points and steps are always the same. Connect the wires according to the firing order on the distributor. Since the first spark plug is already connected, turn the distribution rotor once. If it lands on terminal 3, connect the terminal with the third cylinder.
What’s the best way to test a spark plug?
1. Inspect the wires and clips In a well-lit area, remove and visually inspect the spark plug wires one at a time.
Where is the distributor cap on a spark plug?
Start by removing the distributor cap. This is a big round part where all four spark plug wires are connected. The distributor cap is located in the front or at the top of the engine. It is held in place tightly by two latches. Remove the latches using a screwdriver. At this point, use a marker to make two lines.
What can a bad spark plug wire do?
A bad spark plug wires can affect the smooth flow of electrical current which can cause a rough engine idling. Poor fuel economy in a car is a worrisome situation. There could be other reasons like a catalyst issue. But, a bad spark plug wire is a suspect.
Which is spark plug wire goes to which cylinder?
The No. 1 terminal on the distributor will be directly in line with the No. 1 cylinder if you were to draw a straight line from the terminal to the cylinder. Route the No. 1 wire to the No. 1 terminal.
How is the distributor Connected to the spark plugs?
The points of the crown are where the distributor is connected to the spark plugs by spark plug wires. Each point connects to one spark plug, and each spark plug goes to one cylinder in your engine. So a six-cylinder car will have six contacts on the distributor.
Where does the number one spark plug go?
The electricity then moves through the spark plugs to the engine cylinders. Line up the number one spark plug. The number one spark plug terminal is supposed to be the first one to fire as the engine cycles.
Which is the first spark plug in the firing order?
Luckily most manufacturers will mark the number one terminal. You can see number 1, first, or something else. This is the wire which connects the firing terminal in question with the first spark plug in the firing order. More of this will be explained below. The firing terminal you located has to be linked to the first cylinder on the engine.
