Recommended Fuel Line Size (from the tank to the pump)Engine OutputSize (inches)Size (AN)350 hp or less5/16 in.-5350-450 hp3/8 in.-6450-650 hp1/2 in.-8
Is 3/8 fuel line big enough?
A 3/8”id fuel line can easily support 600 HP given sufficient “pump head”! Given a big enough pump a 3/8” steel line could support 1000 HP. The simple way to know is to install an electronic fuel pressure gauge. If the pressure falls as the engine RPM’s go up you need more pump head.

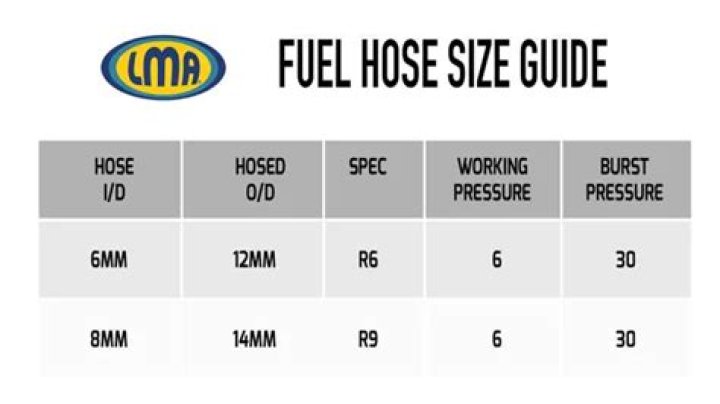

How do I know what size fuel hose I need?
Place the top of a 1/4-inch wrench with an open end over the fuel line. Slide it carefully over the line so that it fits snugly against the tubing. Read the wrench’s measurements to determine the diameter of the fuel line.
Can fuel line be too big?
However, in fuel line we are talking about diameters in fractions of inches and line length in multiple feet, so wall friction tends to dominate. Assuming everything is sized correctly, you cannot be too big with a remote pump/regulator set up.Does size of fuel line matter?
Does size really matter when it comes to fuel lines? According to the fuel delivery system experts at Fuelab, it does. It’s because fuel line size and length have a direct effect on the amount of fuel pressure drop your fuel system will experience.
What size fuel return line should I use?
The Fuel Return Line should be at least the same size, or one size larger than the supply. Make sure there are no sharp bends or kinks. The return line should direct fuel close to the bottom of the tank and away from the pickup.
What size fuel line do I need for 1000 HP?
Recommended Fuel Line Size (from the tank to the pump)Engine OutputSize (inches)Size (AN)350-450 hp3/8 in.-6450-650 hp1/2 in.-8650-1,000 hp5/8 in.-10
How much pressure does a fuel line have?
Regular Fuel Line: PSI. Fuel injection hoses must be able to take air pressure of at least 50PSI. However, an SAE 30R9-rated fuel injection hose would be able to withstand 100 PSI. A PTFE hose with AN6 can take pressure up to 2500 PSI.Which fuel line goes to the primer bulb?
The (clear) main fuel line with the filter (filter inside the fuel tank) goes to the bottom of the carburetor (or the elbow shaped nipple). The (clear) fuel intake line runs from the top of the carburetor (straight nipple) and goes to the short post on the back of the primer bulb.
What size is 6AN fuel line?Male Thread SizeAN Size*Equivalent Tube Size (Nominal OD)3/8-243AN3/16″7/16-204AN1/4″9/16-186AN3/8″3/4-168AN1/2″
Article first time published onWhat is the outside diameter of 3/8 fuel line?
X 5/8 ” Od.
What is the ID of 3/8 fuel line?
Fuel hose.
How much horsepower will a 5/16 fuel line support?
You should be fine with 5/16 line with 450hp and a 255lph pump.
What size is metal fuel line?
For most recent cars, supply is 5/16″ and return and vent are both 1/4″.
How much pressure is in a fuel return line?
around 40 PSI in an EFI system, though it could be higher or lower depending upon the application. The return line should only have residual pressure on it…a PSI or two caused by the reistance of the fuel line to flow.
How much fuel does my engine need?
The amount of horsepower that your engine has will determine how much fuel flow is required to support that engine. As horsepower increases so does the volume of fuel required to support that power. A good estimator of volume to power is approximately 10 hp per gallon or 2.64 hp per liter.
How much horsepower can a 6AN fuel line support?
“A rule of thumb; 5/16″ (-5AN) will support up to 300 horsepower, 3/8” (-6AN) will cover up to 500 HP, and 1/2″ (-8AN) is good to 700HP.”
What is the purpose of fuel filter?
The fuel filter keeps fuel running smoothly to the engine. Changing the fuel filter keeps the injectors clean longer, which means more power and better gas mileage.
Do you need a return line on a fuel cell?
if your just running a regular mechanical pump or a electric pump around 7 psi. then no need for a return line. return lines are for fuel injection where the pump is always running at full steam. just cap it off, you’ll be fine.
Do you need a fuel return line on fuel injection?
Setting up fuel lines for fuel injection. We often talk about the benefits of fuel injection on off-road vehicles. … That’s because almost all fuel injection systems require higher fuel pressures than a carbureted system, and most also require a fuel return line, not often found on a carbureted vehicle.
What is the purpose of a fuel return line?
A return-type fuel system is one that is designed with a fuel pressure regulator that diverges the fuel pressure based on the power of vacuum suction from the engine’s intake system.
Why do Weedeaters have 2 fuel lines?
There are 2 connections on carb; 1 on top 1 on bottom. … For both the carburetor and the primer, one line should be a supply line and the other a return or vent line. The supply lines need to connect to the fuel tank so that, when the weed eater is held in the operating position, they are below the fuel level.
What lines or pipes connect the engine to the fuel tank?
The fuel line typically consists of rigid metal pipes, with flexible rubber or plastic hoses running from the pipes to the tank and the fuel pump , and from the pump to the carburettor . The flexibility of the hoses allows some movement between these different components.
Do primer bulbs need to be filled with gas?
The fuel system is connected to the carburetor through a primer bulb. … This forces the fuel to come out of the fuel tank. But before entering the carburetor, it enters the primer bulb. So, a primer bulb should always be filled with gasoline.
Is vinyl tubing good for fuel line?
Small engines on your lawnmower, ATV or motorcycle use a gas-resistant vinyl tubing called Tygon. … Standard rubber vacuum or heater hose should never be used in fuel applications.
Is polyurethane tubing good for gasoline?
Polyurethane combines the best properties of both plastic and rubber. … It has exceptional resistance to most gasolines, oils, kerosene, and other petroleum-based chemicals, making PU tubing and hose, also known as PUR tubing and hose, an ideal choice for fuel lines.
What psi should my fuel pressure be?
Fuel pressure for most vehicles should stay in a 5- to 10-psi range.
What size is 6am?
AN SizeMetal Tube O.D.Thread Size-4 AN1/4″7/16″ – 20 SAE-5 AN5/16″1/2″ – 20 SAE-6 AN3/8″9/16″ – 18 SAE-8 AN1/2″3/4″ – 16 SAE
What is an an 6 fitting?
In bolts the number refers to the diameter of the bolt whereas in a fitting it refers to the OD of the tube and thereby have different threads. For example, AN6 bolt has a 3⁄8-24 thread whereas an -6 AN fitting has a 9⁄16-18 thread.
What size fits for a 5/16 hose?
AN SizeHose i.d. – Tube o.d.SAE Thread Size-41/4 in.7/16 in.-20-55/16 in.1/2 in.-20-63/8 in.9/16 in.-18-81/2 in.3/4 in.-16
What is best fuel line?
- Allstar ALL40185 Fuel Line.
- A-Team Performance Fuel Line Tube.
- Copper Nickel Fuel/Transmission Line.
- Edelbrock 8131 Fuel Line.
- Allstar ALL48328 Fuel Line.
- Dorman 800-072 Tubing.
- NBR Hose Fuel Line.
- Inline NFR0003 Replacement Kit.
