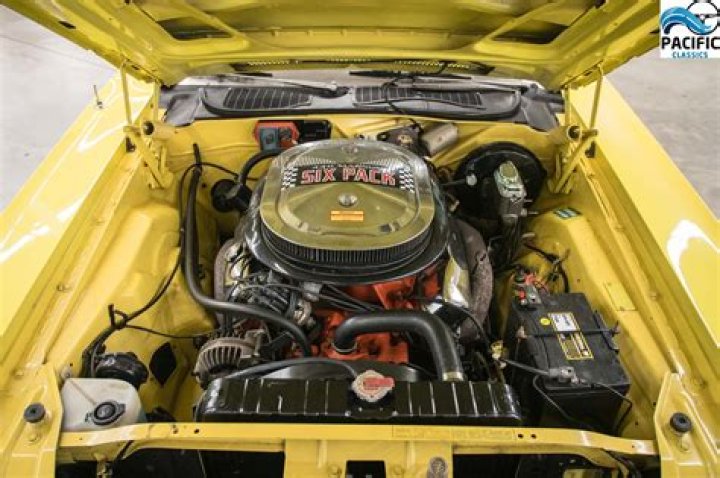

What kind of wiring does a 1970 Dodge Challenger have?
Specific to 1970 Dodge Challenger models with standard dash Includes a/c, light package, overhead console, power top, rear defogger, and fender indicators. Factory wire colors, specific to your car Large size, clear text, easy to read Laminated for…
When did headlight wiring become part of engine compartment wiring?
From 1960 thru 1967 the headlight wiring was part of the engine compartment wiring, but that doesn’t affect anything shown here. 1964 and prior had a smaller bulkhead connector with only two plugs, but the basic circuits and the color coding are very similar from 1960 into the 1970s. An electronic ignition requires an electronic voltage regulator.
What kind of speedometer does a 1970 Dodge Challenger have?
Please note that 1970 through 1974 models have 2 different diagrams available: Rallye dash cars have a factory tachometer and or tachometer/clock combo, will always have a 150 MPH speedometer and an oil psi gauge. Non rallye dash cars have an oil psi light (no gauge). (1970 & 1971 factory HEMI cars have their own diagrams which are different.
How is the battery connected to the starter motor?
The live terminal on the battery is connected by a heavy lead to a terminal on the solenoid switch which is operated when the ignition switch is turned. The other terminal on the solenoid is connected to a terminal on the starter motor .
What are the wires in a classic car starter relay?
Classic car starter relays will often have four wires in the connector. With the ignition key in the on position, there should be power on the heavy gauge red wire and a strong ground on the black wire.
Where are the electrical plugs on a Dodge truck?
Place the assembly back in its proper hole in the dash, then screw the chrome ring back onto the end of the protruding switch. When the assembly is secure, re-attach the modular electrical plug at the back of the switch.
What kind of electrical system does a 1969 Dodge truck have?
Wiring Diagram for 1969 Dodge D or W-Series 1/2 & 3/4 Ton Pickups. Print using “LANDSCAPE” paper orientation. Wiring Diagram for 1970 Dodge D or W-Series 1/2 & 3/4 Ton Pickups. Print using “LANDSCAPE” paper orientation. Wiring Diagram for 1971 Dodge D or W-Series 1/2 & 3/4 Ton Pickups.
Where is the starter located on a classic car?
On automobiles from the 40s through the early 1970s, it’s common to have an external starter solenoid. The mounting area can vary, but a commonplace is the upper part of the firewall. On classic Ford, Lincoln and Mercury cars they’re located on the passenger side inner fender skirt.
