What is the white wire on a 7 pin trailer plug?

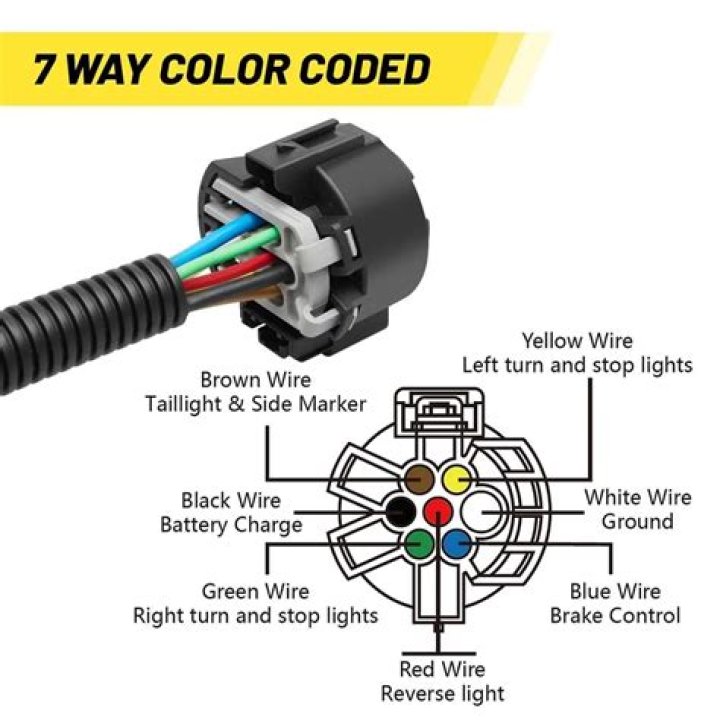

What is the Color Code for 7-Way Trailer Wiring?
- Green: Right turn/brake light.
- Yellow: Left turn/brake light.
- Brown: Tail/running lights.
- White: Ground wire.
- Blue: Brake controller output.
- Black: Battery hot lead.
- Purple: Reverse lights.
Where does the white wire go in a trailer?
The White Wire is the “Ground” or “Negative” wire connecting to the vehicle battery “minus” side. The trailer wiring diagram shows this wire going to all the lights and brakes. Also, it must connect with things (if included) that use the Aux Power and Back-up lights too.
What kind of wiring does a trailer have?
These four colored wires make up your trailer’s wiring system. Each connects to a different function: Brown wire to the tail or parking lights. Green wire to right turn signal/brake light. Yellow wire to the left turn signal/brake light. White wire to common or chassis ground.
How big of a wire gauge do you need for a 7 way trailer plug?
Red: Left turn/brake light What Size Wire Gauge is Used for a 7-Way Wiring Harness? The minimum suggested wire size for a 7-way trailer plug is 16 gauge for the turn signals, brake lights, reverse lights, and running light wires. The suggested minimum for the ground, brake power, and battery hot lead wires is 12 gauge.
What are the colors of a 7 way trailer light?
What is the Color Code for 7-Way Trailer Wiring? 1 Green: Tail/running lights 2 Yellow: Reverse Lights 3 Brown: Right turn/brake light 4 White: Ground wire 5 Blue: Brake controller output 6 Black: Battery hot lead 7 Red: Left turn/brake light
What do you need to know about 7 way trailer wiring?
You would just need to inspect any wiring you can along the vehicle to check for any exposed, pinched, or otherwise damaged portions that need to be fixed. If the 7-Way tested normal then something is going on with the wiring on the trailer side.
The White Wire is the “Ground” or “Negative” wire connecting to the vehicle battery “minus” side. The trailer wiring diagram shows this wire going to all the lights and brakes. Also, it must connect with things (if included) that use the Aux Power and Back-up lights too.
What kind of Trailer light wiring harness do I Need?
