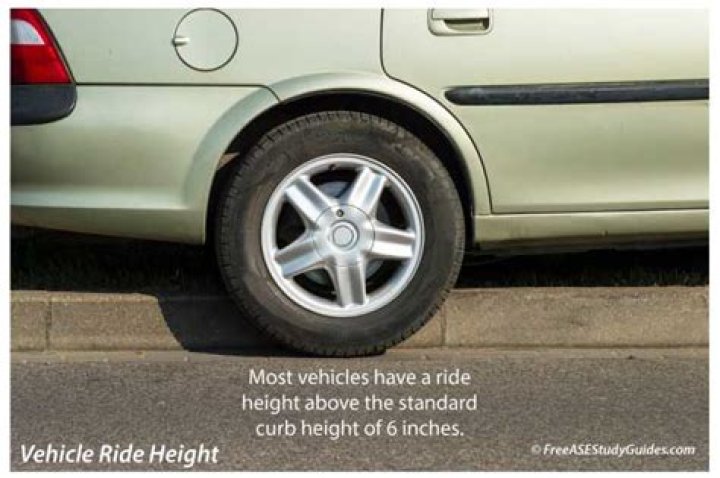

What is the vehicle ride height?
Ride height or ground clearance is the amount of space between the base of an automobile tire and the lowest point of the automobile (typically the axle); or, more properly, to the shortest distance between a flat, level surface, and the lowest part of a vehicle other than those parts designed to contact the ground ( …
Do shocks or springs determine ride height?
Bad shocks affect ride and handling, but they won’t change the ride height of the car. TOM: It sounds as if you have worn-out springs in the back. RAY: The springs are there to absorb bumps; that is, to allow the tires to bounce up without making the car bounce up with them.
Do springs determine ride height?
Weak springs can affect both camber and caster, which may result in a steering pull, a change in steering effort or return and/or uneven tire wear. Look up the ride height specifications and measure ride height in the front and rear and on both sides of the vehicle.
What causes uneven ride height?
Suspension bottoming is a common cause of uneven ride height, and it’s also a sign that the springs and other load-bearing components of your suspension system might be wearing out. Basically, suspension bottoming happens when your suspension system starts to have less total travel distance.
What is the lowest legal height of a car?
However, lowering your vehicle without proper authorisation may not only be illegal but can also be dangerous. In general terms, the road clearance of a fully laden vehicle must not be less than 100mm at any part of the vehicle except a point connected with the wheels or mudflaps.
Can shock absorbers increase ride height?
No, new shocks will not increase your ride height. Shocks aren’t stiff enough to support the weight of the vehicle. The weight is supported by the springs and only things that will increase the ride height are stiffer springs, longer springs or spacers between the spring and the frame or axle.
Do air shocks change ride height?
Today, performance air suspension provides all the same benefits as coilovers, but is unmatched in its versatility and adjustability. Air suspension is the only suspension choice that allows you to easily adjust ride height on-the-fly with the touch of a button. When your car is equipped with air suspension, you can…
How can I increase the height of my car?
Taller Tyres and Rims Another way to increase ground clearance is to fit taller rims and tyres on your car. There are two ways you can do this. One way is boosting the tyre height by upsizing, while retaining the rims. The other is using taller rims and taller tyres.
Can an alignment change ride height?
Generally, an alignment will cause very slight changes to your ride height since your tire position and pressure have been corrected. However, large changes in the ride height on your vehicle shouldn’t be alignment related.
What affects ride height?
Tire pressure: The tire is effectively a spring, and significant changes in tire pressure affect ride heights too. Camber & toe: As already discussed, camber and toe adjustments may affect the ride height. Modify the suspension geometry so that you achieve the new desired camber (or toe) at that same ride height.
What is ride height and how do I measure it?
How to Measure Ride Height. Question: What is ride height and how do I measure it? Answer: Ride height is the space between the base of your tire where it touches the ground and the underside of your vehicle.
Is the ride height the same as the ground clearance?
Ground clearance is almost the same thing as ride height, but it is measured simply from the lowest part of your car to the ground. Know the lowest part of your vehicle.
What happens when you change the ride height on a car?
Camber readings out of spec. Changes in front or rear ride height can alter front camber alignment (and rear camber on vehicles with independent rear suspensions) especially when there’s a difference in ride height side-to-side. How much the camber readings change will depend on the amount of sag and suspension geometry. Increased tire wear.
How tall does a car have to be before it is considered out of specification?
Some manufacturers allow up to an inch or more of sag (but generally no more than two inches) before ride height is considered out of specification. The point where ride height is measured is critical.
How are ride height and ground clearance measured?
Have the car passenger load as it usually is (ask a friend), and an average tank of gas, say half a tank. When you get the measurement WRITE IT DOWN, both the measurement and the details about how you took it. Ground clearance is almost the same thing as ride height, but it is measured simply from the lowest part of your car to the ground.
Where do you measure ride height on a car?
Check the manufacturer literature that came with your vehicle. You might be measuring from the rocker panel (lowest body panel betwen the wheel wells) to the ground, or the fender lip to the ground, or from the bumper to the ground. Some manufacturers may recommend measuring from the frame rail to the axle or a suspension control arm.
Camber readings out of spec. Changes in front or rear ride height can alter front camber alignment (and rear camber on vehicles with independent rear suspensions) especially when there’s a difference in ride height side-to-side. How much the camber readings change will depend on the amount of sag and suspension geometry. Increased tire wear.
Some manufacturers allow up to an inch or more of sag (but generally no more than two inches) before ride height is considered out of specification. The point where ride height is measured is critical.
