When something changes in a circuit, like a switch closes, the voltages and currents in the circuit elements adjust to the new conditions. If the change is an abrupt step, as it is here, the response of the voltages and currents is called the step response.
What is step response in RL circuit?

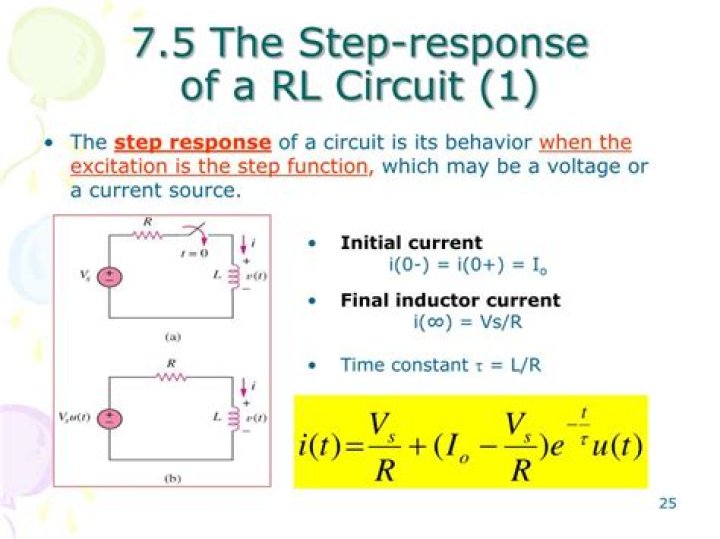

The step response of a circuit is its behavior when the excitation is the step function, which may be a voltage or a current source. ➢ At that time, the inductor becomes a short circuit, and the voltage across it is zero. The entire source voltage appears across R.
What is step response of amplifier?
An amplifier’s ability to adapt to varying input voltages is called its step response, and is important because it allows the amplifier to be used in applications where input voltage may be inconsistent or at risk of being affected by external variables.
How do you find the step response of a system?
To find the unit step response, multiply the transfer function by the unit step (1/s) and the inverse Laplace transform using Partial Fraction Expansion..What is the time response of a circuit?
If the output of an electric circuit for an input varies with respect to time, then it is called as time response. The time response consists of following two parts.
What is step response in control system?
In electronic engineering and control theory, step response is the time behaviour of the outputs of a general system when its inputs change from zero to one in a very short time.
What is step response of RC and RL circuits?
The response or the output of the series RL and RC circuits driven dc excitations is called step response of the network. in fig. (l) is zero. When the switch k is closed at t=0, the dc voltage v gets applied to the network.
What is the general form of the step response?
The step response of a system is defined as its response to a unit-step input, \(u(t)\), or \(u(s)=\frac{1}{s}\).Why do we use step response?
The step response provides a convenient way to figure out the impulse response of a system. The ideal way to measure impulse response would be to input an ideal dirac impulse to the system and then measure the output.
What is step response and impulse response?Definition: The impulse response of a system is the output of the system when the input is an impulse, δ(t), and all initial conditions are zero. Definition: The step response of a system is the output of the system when the input is a step, H(t), and all initial conditions are zero.
Article first time published onWhat is a first order response?
A first-order system is a system that has one integrator. … The total response of the system is the sum of forced response and natural response. The forced response is also called the steady-state response or a particular equation. The natural response is also called the homogeneous equation.
What is step response in Matlab?
Step Response Plots step automatically determines the time steps and duration of the simulation based on the system dynamics. example. step( sys , tFinal ) simulates the step response from t = 0 to the final time t = tFinal . The function uses system dynamics to determine the intervening time steps.
What is step response of LTI system?
The step response of a discrete – LTI system is the convolution of the unit step with the impulse response i.e. s(n) = Step Response.
What is steady-state response of a circuit?
A steady-state response is the behavior of a circuit after a long time when steady conditions have been reached after an external excitation. … A steady-state response is the behavior of a circuit after a long time when steady conditions have been reached after an external excitation.
What is the response of step input to a high pass RC circuit?
The response of the circuit is plotted in Fig. 1.4(b). At t = 0, when a step voltage V is applied as input to the high-pass circuit, as the capacitor will not allow any sudden changes in voltage, it behaves as a short circuit. Hence, the input voltage V appears at the output.
What is response in electrical engineering?
transient response in Electrical Engineering A transient response of a circuit is a temporary change in the way that it behaves due to an external excitation, that will disappear with time.
What is a step input?
A step input can be described as a change in the input from zero to a finite value at time t = 0. By default, the step command performs a unit step (i.e. the input goes from zero to one at time t = 0).
What is a second order response?
Solving Differential Equations in the Laplace Domain The second-order system is the lowest-order system capable of an oscillatory response to a step input. Typical examples are the spring-mass-damper system and the electronic RLC circuit. … The unit step response depends on the roots of the characteristic equation.
What is the impulse response of a system?
In signal processing, the impulse response, or impulse response function (IRF), of a dynamic system is its output when presented with a brief input signal, called an impulse. More generally, an impulse response is the reaction of any dynamic system in response to some external change.
Why is step response and impulse response the same?
Because the step response has a discontinuity in it (i.e., a step), and the impulse response is simply the derivative of the step response, this causes an impulse function as part of the impulse response.
How do you find the step response of a first order system?
- Take the Laplace transform of the input signal r(t).
- Consider the equation, C(s)=(1sT+1)R(s)
- Substitute R(s) value in the above equation.
- Do partial fractions of C(s) if required.
- Apply inverse Laplace transform to C(s).
What is a first order process?
When a reaction is overall first order with respect to one of the reactants, then the rate of the reaction is simply proportional to the amount of that reactant. … Nuclear decay is an excellent example of a first order process.
What do you mean by transient response?
In electrical engineering and mechanical engineering, a transient response is the response of a system to a change from an equilibrium or a steady state. … The impulse response and step response are transient responses to a specific input (an impulse and a step, respectively).
How do you find step response from impulse response in Matlab?
Create Step Response from Impulse Response load(‘PulseResponseReflective100ps. mat’); Calculate the step response from the impulse response. step = impulse2step(impulse,dt);
What is order of the system?
System Order The order of the system is defined by the number of independent energy storage elements in the system, and intuitively by the highest order of the linear differential equation that describes the system. In a transfer function representation, the order is the highest exponent in the transfer function.
What is the difference between steady-state and transient response?
The steady state is the state that is established after a certain time in your system. The transient state is basically between the beginning of the event and the steady state. That means the final output of both of them is same.
What is the natural response?
The Natural Response of a Circuit is the response of a circuit which contains an energy storage element(s), a capacitor and/or inductor, with no power source present. … Its natural response can be observed because there is no active device such as a power source present.
