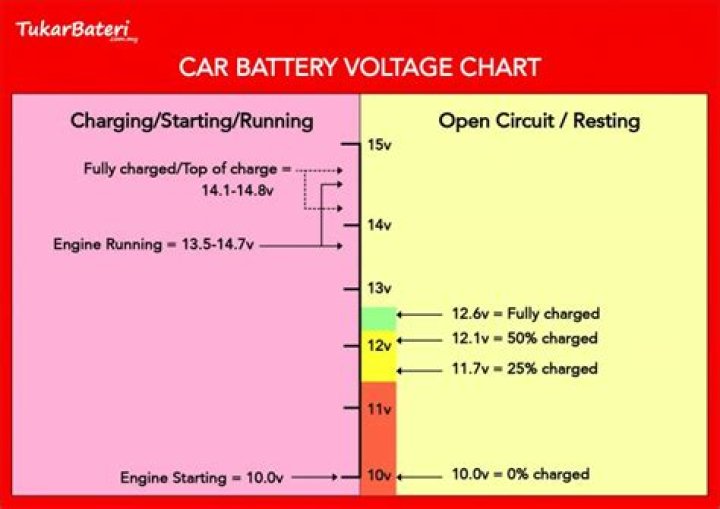

What is the normal voltage when the engine is running?
13.7 to 14.7 volts
Fully charged automotive batteries should measure at 12.6 volts or above. When the engine is running, this measurement should be 13.7 to 14.7 volts. If you don’t have a multimeter to tell you the voltage of your battery, you can do a test of your electrical system by starting the car and turning on the headlights.
What should battery voltage be while idling?
Additionally, once the engine is running, the battery should be receiving a charge from the alternator. Because of this, the multimeter should read between 13.8 and 14.5 volts when the engine is at idle.
What causes voltage drop in car?
When corrosion, loose connections or other types of resistance restrict a circuit, volts and amps both drop. If volts drop, amps drop too. That is why when you find a voltage drop in a connection or cable, you know the connection or cable is restricted.
Why is my car battery at 18 volts?
Yes. 14.4 volts is a normal voltage measured at the terminals for a car battery while the engine is running. If it was 18 volts, that would not indicate battery problem, but a malfunction of either the alternator or voltage regulator. To check the battery, measure the voltage at the terminals with the engine off.
Is 14 volts good for a car battery?
It should read close to 12.6 volts when the car is off. If the voltmeter reads between 14-15 volts then the battery is normal. But if the battery reads over 15 volts or less than 13 volts, then there might be a problem with the voltage regulator, the wiring or the alternator.
Is 12.7 volts enough to start a car?
However, what is the minimum voltage to start a car? There is no exact answer to the question. In the standard state, a fully charged battery should show a 12.6-12.7V. Many experts assure, you need to wait at least for an hour, then it should drop from 13 to 12.7V.
What should the voltage be when the engine is running?
Start the engine-make sure that you’ve put the multimeter in a safe place. Put the multimeter in a safe place, especially if the car battery is under the hood. If the multimeter falls into the engine bay while the engine is running, it can damage or crush the digital multimeter. Take a reading: 13.5 volts to 14.5 volts is OK!
What happens when voltage goes over 20 V?
If you go over 20 V nothing special will happen except that the decimals on the screen will move and it will be harder to read the output voltage. You’ll see that the tester cables are (mostly) red and black.
What should voltage drop be on DC cable?
The voltage loss along the cable also causes power loss which is wasting energy unnecessarily. The trade off is between the additional cost and weight of thicker cabling, and the loss of power and heat generation. Targeting to keep voltage drop under 3% (there and back) is good practice, although the calculator will allow you to select 1-5%.
What should the voltage drop be on a ground axle?
Check voltage drop between the transmission case and battery negative post. Voltage drop should be 0.2 volts or lower. Check individual chassis grounds by taking a voltage drop across each ground strap on the transmission. Voltage drop should be 0.2 volts or lower. Clean, repair or replace transmission grounds as necessary.
What does a voltage test on a car mean?
Car Battery Load Tests. Measuring voltage tells you about the charge of the battery, but is not an accurate indicator of the health of the battery. In other words, a battery might have a low charge (and therefore a low voltage) but still be a healthy battery. Performing a load test is a reliable check of the battery’s internal health.
What kind of electrical system does an RV have?
The DC (direct current) system (12 volts), which runs the lights, switches, slides, and thermostats. In addition, refrigerators and some appliances run on propane fuel.
When to change the voltage of a car battery?
That value will understandably be lower than the standalone voltage test. When performing a load test, you should apply a load to a fully charged battery for no more than 30 seconds and should not see the voltage drop below 9.6V. If it does, replace the battery.
