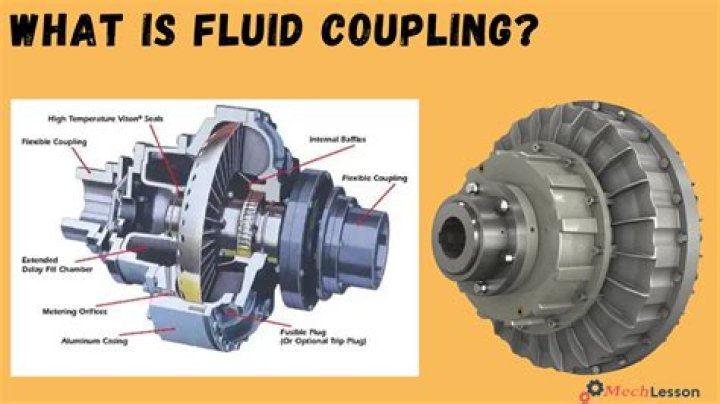

What is the function of fluid coupling?
A fluid coupling or hydraulic coupling is a device used for transmitting power from one shaft to another shaft by means of acceleration and deceleration of a hydraulic fluid. Fluid coupling is based on hydro-kinetic principles and requires that the output speed be less than the input.
What is a shaft coupler used for?
A shaft coupling is a mechanical component that connects the drive shaft and driven shaft of a motor, etc., in order to transmit power. Shaft couplings introduce mechanical flexibility, providing tolerance for shaft misalignment.
How does fluid drive coupling works?
The fluid coupling consists of a pump impeller (on the input shaft) and a runner (on the output shaft). Both impellers are housed in the same casing. The pump impeller pushes the fluid inside the casing (usually low-viscosity oil) towards the runner, which causes the output shaft to rotate.
How does a shaft coupler work?
What is a coupling (shaft coupling)? A coupling is a mechanical element part that connects two shafts together to accurately transmit the power from the drive side to the driven side while absorbing the mounting error (misalignment), etc. of the two shafts.
Is a clutch a coupling?
Clutch is a device that provides a temporary connection between the driver and driven shaft. Coupling makes the permanent and semi-permanent connection between two shaft ends. Coupling used where driven shaft required to be in continuous service. Clutch allow disconnection during the operation.
What are the components of fluid coupling?
Fluid coupling
- The main components are the pump, stator, and turbine.
- It is a torque multiplication unit.
- The turbine blades are inclined to have pitch.
- It acts as an automatic clutch and serves the purpose of an automatic gearbox to increase torque.
What is the difference between a torque converter and a fluid coupling?
A fluid coupling is a two element drive that is incapable of multiplying torque, while a torque converter has at least one extra element—the stator—which alters the drive’s characteristics during periods of high slippage, producing an increase in output torque.
What is a drive shaft coupling?
The coupling has a control cable attached to it which extends to a location under the driver’s seat. This control cable is pulled out to disengage for towing and pushed in to engage for driving the car. Purchase with new driveshaft attached or have vehicle’s driveshaft reworked.
What is difference between clutch and brake?
So what’s the difference between the brake and the clutch? The brake is used to stop or slow down the rotating wheels of a vehicle. The clutch, on the other hand, transfers power from the car’s driving shaft and is used to start and stop the vehicle.
When to use liquid coupling in a gearbox?
The liquid coupling is not suited for use with an ordinary gearbox. It is generally used in conjunction with epicyclic gears to provide a semi or fully automatic gearbox. The liquid coupling is always a major part of the engine flywheel assemble and hence it is also known as a fluid flywheel.
What causes a flexible coupling to fail on a shaft?
Failure to correct excessive misalignment Even flexible couplings which are designed for use on misaligned shafts have their limits. A common point of failure is the under-estimation of the degree of misalignment, creating loads that surpass the coupling specifications.
When do you use universal coupling in a shaft?
The universal coupling is also known as Hooke’s coupling. It is used when two shafts axis intersects at a small angle. The inclination of two shafts can be constant, but in actual practice, this changes when the motion is transferred from one shaft to another.
When to use rigid or flexible transmission couplings?
Rigid couplings are used in applications where the two shafts are more precisely aligned, but flexible couplings allow for issues such as angular, axial and parallel misalignment which are more common in many industrial applications.
What does it mean when a shaft coupling slips?
One side has a coupling that connects to your shaft; the other is the converted shaft size. Also called slip clutches, these couplings slip when they exceed specific torque levels to protect motors and drivetrains and ensure safe operation.
What makes a rigid shaft coupler last so long?
Extend the life of your rigid shaft couplings by blocking out dirt, water, lubricants, and other contaminants. These two-piece covers twist together to form a shell around the coupling. These U-joints are made of steel or plastic. These U-joints are made of steel or zinc.
What are the different types of shaft couplings?
There are two types of couplings: rigid and flexible. Rigid couplings connect two shafts that are aligned. They are also good for handling high-torque applications. Flexible couplings connect two shafts that are misaligned. Couplings are rated by maximum torque and maximum rpm. Use this formula to determine the maximum torque you need:
How does a clamping shaft coupling work on a motor?
Access one shaft without disconnecting the other. These rigid couplings have a solid bottom that connects the shafts and two top pieces that clamp the shafts independently. Support the weight of a motor and transfer torque to another shaft at the same time with these couplings.
