What is power pack in hydraulic system?

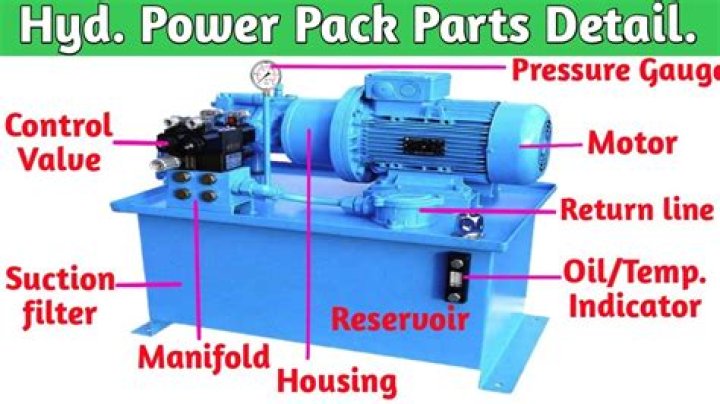

In basic terms, a hydraulic power pack is a self-contained unit that consists mainly of a motor, a reservoir and a hydraulic pump. Using fluid to transmit power from one location to another, hydraulic power packs can generate massive amounts of power which can be used to drive hydraulic machinery.
What causes hydraulics to lose power?
Air and Water Contamination Air and water contamination are the leading causes of hydraulic failure, accounting for 80 to 90% of hydraulic failures. Faulty pumps, system breaches or temperature issues often cause both types of contamination. Usually, loose connections or leaks in the system cause this issue.
Is used as a hydraulic power unit?
Hydraulic power units (sometimes referred to as a hydraulic power pack) is a self-contained system that generally includes a motor, a fluid reservoir, and a pump. It works to apply the hydraulic pressure needed to drive motors, cylinders, and other complementary parts of a given hydraulic system.
Where is hydraulic power used?
As a result, hydraulic power systems are extensively used in modern aircraft, automobiles, heavy industrial machinery, and many kinds of machine tools. Motors in a hydraulic power system are commonly classified into two basic types: linear motors and rotational motors.
Which fluid is used in hydraulic power system?
A hydraulic fluid or hydraulic liquid is the medium by which power is transferred in hydraulic machinery. Common hydraulic fluids are based on mineral oil or water….Functions and properties.
| Function | Property |
|---|---|
| Pump efficiency | Proper viscosity to minimize internal leakage High viscosity index |
What are examples of hydraulic systems?
Examples of Hydraulic System
- Hydraulic Lifts. Hydraulic lifts are used for moving goods or people vertically.
- Hydraulic Brakes. Braking system of the vehicle is an important example of hydraulics.
- Hydraulic Steering.
- Hydraulic Jacks.
- Heavy Equipment.
- Airplanes.
- Hydraulic Shock Absorbers.
What are the three types of hydraulic system?
Three common varieties of hydraulic fluids found on the market today are petroleum-based, water-based and synthetics. Petroleum-based or mineral-based fluids are the most widely used fluids today.
How is power transmitted through a hydraulic system?
Hydraulic systems are used for transmission of power through the medium of hydraulic oil. The hydraulic system works on the principle of Pascal’s law which says that “ the pressure in a fluid at rest is transmitted uniformly in all directions”.
What do you need to know about hydraulic power units?
What are Hydraulic Power Units? Hydraulic power units (sometimes referred to as a hydraulic power pack) is a self-contained system that generally includes a motor, a fluid reservoir, and a pump.It works to apply the hydraulic pressure needed to drive motors, cylinders, and other complementary parts of a given hydraulic system.
Which is the working principle of a hydraulic system?
The hydraulic system works on the principle of Pascal’s law which says that the pressure in an enclosed fluid is uniform in all the directions. The Pascal’s law is illustrated in the figure. The force given by fluid is given by the multiplication of pressure and area of cross-section.
What should I do if I have a hydraulic problem?
1. Drain and flush system. Disassemble and clean, if necessary. 2. Small fittings or pipe. 3. Check pilot pressure system. 4. Check for proper source voltage and frequency. Remove solenoid and check fields. 5. Align body and piping to remove strains.
How is mechanical power converted into hydraulic energy?
Mechanical power is converted into hydraulic energy using the flow and pressure of a hydraulic pump. Hydraulic pumps operate by creating a vacuum at a pump inlet, forcing liquid from a reservoir into an inlet line, and to the pump. Mechanical action sends the liquid to the pump outlet, and as it does, forces it into the hydraulic system.
How does pressure work in a hydraulic system?
In a hydraulic system, pressure, applied to a contained fluid at any point, is transmitted undiminished. That pressurized fluid acts upon every part of the section of a containing vessel and creates force or power.
How does a truck mounted hydraulic system work?
PRINCIPLES OF HYDRAULICS Truck-mounted hydraulic systems, regardless of their application, have in common the basic components and operating principles of any hydraulic system. They utilize a power source, reservoir, pump, directional control valve, and actuators to move and control fluid in order to accomplish work.
What are the symptoms of a hydraulic system failure?
Many of the failures in a hydraulic system show similar symptoms: a gradual or sudden loss of high pressure, resulting in loss of power or loss of speed in the cylinders. The cylinder (s) may not move at all, or if they do they may move too slowly or may stall under light loads.
