Atmospheric ducting is a mode of propagation of electromagnetic radiation, usually in the lower layers of Earth’s atmosphere, where the waves are bent by atmospheric refraction. … It also causes long distance propagation of radio signals in bands that would normally be limited to line of sight.

What is duct propagation?

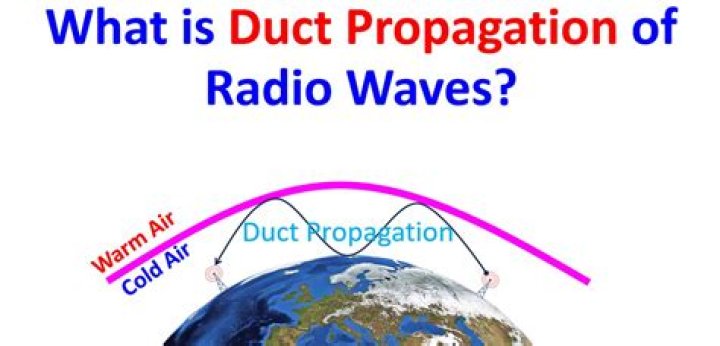

Duct propagation is the phenomenon of transmitting UHF and VHF signals to longer distances. … Basically, the wave propagates inside a duct by undergoing successive refractions inside it. The change in the refractive index due to warm and cool layers in the atmosphere causes duct propagation.

What is troposphere ducting?

When a radio signal is broadcast from a transmitter, some of it disappears upwards into space and is lost. … Potentially, this signal can travel great distances – up to many hundreds of miles. This is known as tropospheric ducting and it can distort, or prevent radio reception.

What is ducting in communication?

This condition, called superrefraction or ducting, causes the curvature of radio rays to exceed the curvature of the earth’s surface. This effect can trap or reflect radio waves. If refractivity increases with height near the earth, a positive refractive gradient condition called subrefraction exists.

What causes atmospheric ducting?

Atmospheric ducts are caused by rapid decrease in the refractive index of the lower atmosphere, and they significantly alter the near-surface wave propagation by trapping propagating signals.

How are ducts formed?

Ducts are typically formed by folding sheet metal into the required shape. The most common shapes are round, rectangular, and oval ducts. There are some advantages and disadvantages of each duct shape.

What is surface duct?

The surface duct is an effective channel for sound propagation near the ocean surface. The features of the duct, including oceanographic and acoustic characteristics, have been studied extensively.

What is an evaporation duct?

The evaporation duct is a downward refracting layer that results from the rapid decrease in humidity with respect to altitude occurring in the atmospheric surface layer above bodies of water. The evaporation duct affects radar detection ranges at frequencies of approximately 1 GHz and above.

What is inversion layer in space wave propagation?

Explanation: Duct propagation is due to temperature inversion layer. This layer occurs due to super refraction and at lower atmospheric layers. Around 50m of height from earth surface temperature increases with height, at this level the EM waves tend to refract continuously than to reflect into ionosphere.

Which waves are trapped in duct?

The electromagnetic waves are trapped within the ducting layer with weak propagation loss and enhanced propagation range, usually known as atmospheric ducting [1,2].

Article first time published on

How troposphere ducts are formed?

Tropospheric ducting is a type of radio propagation that tends to happen during periods of stable, anticyclonic weather. … This is termed a temperature inversion, and the boundary between the two air masses may extend for 1,000 miles (1,600 km) or more along a stationary weather front.

What is tropospheric scatter propagation?

tropospheric scatter: 1. The propagation of radio waves by scattering as a result of irregularities or discontinuities in the physical properties of the troposphere.

What is tropospheric bending?

Radio waves can propagate over the horizon when the lower atmosphere of the earth bends, scatters, and/or reflects the electromagnetic fields. These effects are collectively known as tropospheric propagation, or tropo for short. … This effect is known as tropospheric scatter, or troposcatter.

What is space propagation?

Space Wave Propagation is defined as the mode of transmission in which the radio waves are transmitted to reach the receiving antenna after travelling through space. Space wave propagation has application in line-of-sight communication, microwave linking, satellite communication, etc.

What causes anomalous propagation?

Anomalous Propagation (AP) refers to false radar echoes usually observed when calm, stable atmospheric conditions, often associated with super refraction in a temperature inversion, direct the radar beam toward the ground. … Inversion of temperature exists too ahead of warm fronts, and around thunderstorms’ cold pool.

What is the frequency range of ground wave propagation?

The ground wave is the preferred propagation type for long distance communication using frequencies below 3 MHz (the earth behaves as a conductor for all frequencies below 5 MHz). The ground wave is also used for short distance communications using frequencies between 3 and 30 MHz.

What is elevated duct?

Introduction. Ducts are atmospheric layers formed when M decreases with height. Radar or other EM waves can be trapped within ducts and may propagate over much greater distances than normally expected. … In this case, we see an elevated duct where the duct is above the surface.

What is sonic layer depth?

Sonic layer depth (SLD) is the depth of maximum sound speed above the deep sound channel axis or the depth up to which the increasing sound speed penetrates3,4,5. SLD has significant strategic implications as it characterizes surface acoustic ducts.

What is sub refraction?

Definition of subrefraction : a state of refraction (as of the atmosphere) that is less than normal and is usually associated with a sharp vertical gradient of some physical factor (such as temperature)

What is a duct and its function?

In anatomy and physiology, a duct is a circumscribed channel leading from an exocrine gland or organ.

What is the function of duct?

Ducts are conduits or passages used in heating, ventilation, and air conditioning (HVAC) to deliver and remove air. The needed airflows include, for example, supply air, return air, and exhaust air. Ducts commonly also deliver ventilation air as part of the supply air. … A duct system is also called ductwork.

What is duct tube?

Ductwork, ducts, or ducting, are conduits, or tubes, that typically form part of a ventilation system, used to convey air throughout a building. … Ducts can be fabricated from a range of materials: Galvanised mild steel: This is the most common material used as the zinc coating prevents rust forming.

What is a low level inversion?

In regions where a pronounced low-level inversion is present, convective clouds cannot grow high enough to produce showers and, at the same time, visibility may be greatly reduced below the inversion, even in the absence of clouds, by the accumulation of dust and smoke particles. …

What is meant by super refraction?

Super-refraction occurs when atmospheric conditions cause the radar beam to bend more than in the Standard Atmosphere (Figure 2). If the beam is not bent enough to intersect the Earth’s surface, low altitude precipitation echoes that would ordinarily be below a standard refracted beam can be detected. …

What is sporadic E layer?

Sporadic E (Es) layers are narrow layers with high electron densities consisting mainly of metallic ions. These layers appear sporadically in the region predominantly at altitudes between 90 and 120 km.

What is evaporation duct height?

The vertical distance from the surface at the switchover location is called the evaporation duct height. Another important parameter is the strength of the evaporation duct, ΔM. The strength is defined as the value of M at the surface minus the value of M at the top of the duct.

What is skip distance in radio communication?

skip distance. noun. the shortest distance between a transmitter and a receiver that will permit reception of radio waves of a specified frequency by one reflection from the ionosphere.
