What is a typical specific gravity reading for a battery in good condition?

Will the float reading be higher or lower if the battery is very weak Why?

If the battery seems weak or fails to crank your engine normally, it may be low. All balls floating would indicate a fully charged battery, no balls floating would indicate a dead or fully discharged battery. Some sealed-top batteries have a built-in hydrometer to indicate charge.

Which cell has the highest voltage?

Answer: Lithium has the highest voltage.

Why specific gravity is important in battery?

A battery’s specific gravity is a great way of measuring a battery’s state of charge. This is because, during discharge, the specific gravity decreases linearly with ampere-hours discharged. The specific gravity also increases as the battery is recharged.

How do you test specific gravity on a battery?

In the case of battery testing, the hydrometer is measuring the specific gravity of the battery’s electrolyte. The higher the acid concentration in the electrolyte, the higher the specific gravity. Based on the specific gravity, the user can determine the state of charge of the battery.

What should the specific gravity of a battery be?

Specific gravity is used as an indicator of the state of charge of a cell or battery. Also Know, how do you increase the specific gravity of a battery? The specific gravity of the electrolyte in a fully charged cell should be from 1.280 to 1.300.

Can you test the gravity of a closed battery?

You cant test the specific gravity of the closed battery, and thats a drawback. If its a gel deep cycle battery it is probably OK, they are designed to be recharged afetr full discharge hundreds of times. Sounds like you may still have a phantom or parasitic load going on. Use a ampmeter to tell.

How can I tell if my battery is fully charged?

The Specific Gravity or Open Circuit Voltage readings for a battery at 100 percent state-of-charge will vary by plate chemistry, so check the manufacturer’s specifications for a fully charged battery. For non-sealed batteries, check the specific gravity in each cell with a hydrometer and average cells readings.

Can a bad battery test as being good?

Batteries tested fine. Someone finally told me that while batteries can test out okay – they can lose some of their capacity for “cold cranking amps”. I replaced them and all was fine again. I keep my old batteries in my garage. I still work them like a dog for emergency auxiliary power sources when the power goes down during storms.

You cant test the specific gravity of the closed battery, and thats a drawback. If its a gel deep cycle battery it is probably OK, they are designed to be recharged afetr full discharge hundreds of times. Sounds like you may still have a phantom or parasitic load going on. Use a ampmeter to tell.

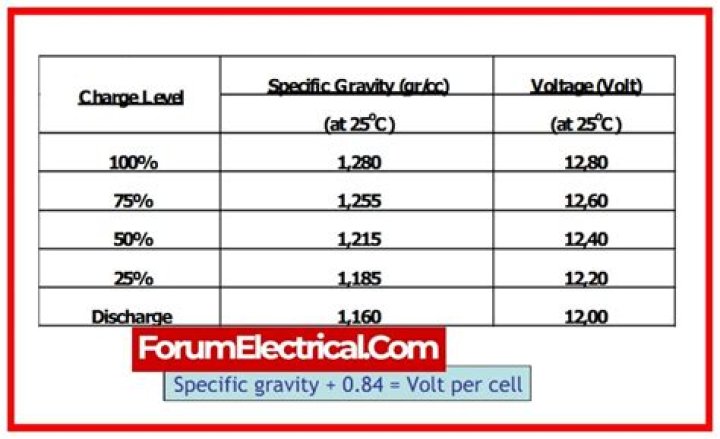

What is the specific gravity of a battery?

Specific gravity can be measured using a hydrometer. These are inexpensive and can be purchased at most automotive parts stores. Plain water is the baseline for measurement and has a gravity of 1.000. A fully charged battery will have a concentration of sulfuric acid to water of 1.280, while a discharged battery will test out at about 1.145.

The Specific Gravity or Open Circuit Voltage readings for a battery at 100 percent state-of-charge will vary by plate chemistry, so check the manufacturer’s specifications for a fully charged battery. For non-sealed batteries, check the specific gravity in each cell with a hydrometer and average cells readings.

What should I do if my battery fails the load test?

If the battery bounces back to less than 75 percent state-of-charge (1.225 specific gravity or 12.45 VDC), then recharge the battery and load test again. If the battery fails the load test a second time or bounces back to less than 75 percent state-of-charge, then replace the battery because it lacks the necessary CCA capacity.
