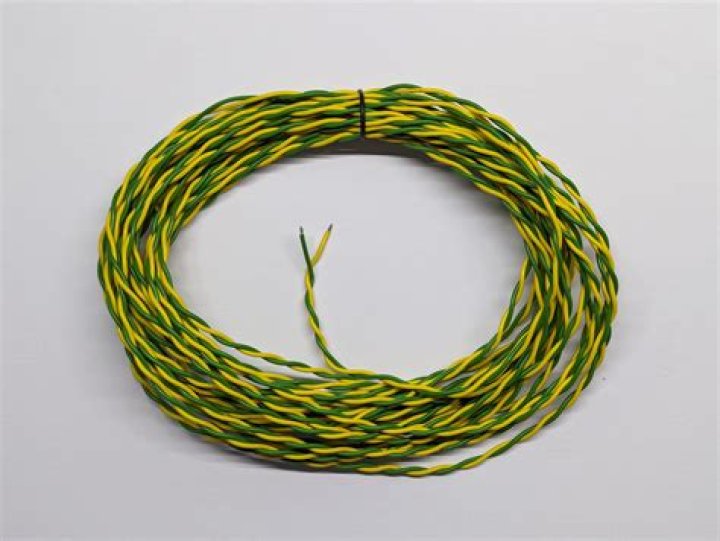

What is a green and yellow wire used for?
The green and yellow cable is known as the earth wire and it serves an important safety role. This means that, if the live or neutral wires develop a fault causing any exposed metal to become live, there is a risk of electrocution as electricity can attempt to find its way to earth via the human body.
What does red black and green wires mean?
The standard for electrical wiring color code in India is as follows. According to the old standard, Red is used for live (or line) power conductor, Black for neutral and Green for protective earth or ground.
Which is the live wire black or red?
The live wire is brown in new systems and red in old systems. The neutral wire is blue in new systems and black in old systems.
What are the colors of the electrical wires?
See Table below. The protective ground is green or green with yellow stripe. The neutral is white, the hot (live or active) single phase wires are black , and red in the case of a second active. Three-phase lines are red, black, and blue.
What is the colour of an earthing wire?
The protective ground is green or green with yellow stripe. The neutral is white, the hot (live or active) single phase wires are black , and red in the case of a second active. Three-phase lines are red, black, and blue.
What does it mean when a white wire is red?
If you see a white wire marked with black or red (or a piece of black or red electrical tape at its ends), that means it’s acting as a hot wire and is no longer neutral. Green Electrical Wires Green wires connect to the grounding terminal in an outlet box and run to the ground bus bar in an electrical panel.
What are the colors of electrical wiring in Russia?
Russia New Wiring Color Codes 1 BROWN= Phase , Hot or Line, (L) 2 BLACK = Neutral (N) 3 GREEN / YELLOW = Earth Conductor “Protective earth” (PE)
Is black wire hot?
Hot: The black wire is the hot wire , which provides a 120 VAC current source. Neutral: The white wire is called the neutral wire. It provides the return path for the current provided by the hot wire.
What are black and white wires?
Answer: Well, the black one is the wire that’s actually termed as the hot wire . It carries electricity to your light source or switches from your breaker panel. Then the white is one is known as the common or neutral wire. This wire sends back unused electricity to that same breaker panel.
What is green electrical wire?
The purpose of green wires is to ground an electrical circuit. They connect to the grounding terminal in an outlet box and run to the ground bus bar in an electrical panel. In this way, green wires act as a failsafe, giving electricity a place to escape into the ground if a live wire within the circuit touches metal or something else conductive.
What is black and white wire?
The black wire is hot . The white wire goes by many names that all mean the same thing: neutral, common, or return . Power flows from the box to the outlet through the black wire and back to the box through the white one. The neutral wire can also be gray.
