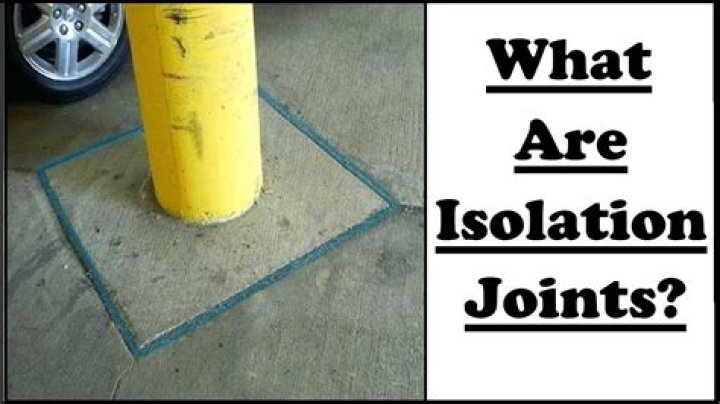

An isolation joint is a separation between adjacent sections of a concrete structure to allow relative movement in three directions and through which all of the bonded reinforcement is interrupted.

What is the purpose of isolation joint?

Isolation joints allow for anticipated differential horizontal and vertical movements between pavements and structures. Their purpose is to allow movement without damaging adjacent structures.

What are the three types of concrete joints?

Joints create a plain of weakness in the concrete directing the concrete where to crack. There are three types of joints: Contraction Joints, Construction Joints and Isolation joints. The most common are contraction joints which control cracks which are caused by restrained shrinkage, loads and other stresses.

What is the difference between expansion joint and isolation joint?

While isolation joints are recommended both inside and out, expansion joints are designed primarily for outdoor situations where weather extremes can add to slab movement.

What is an isolation slab?

An isolation joint is a separation of an existing concrete slab from a new concrete slab or wall. A piece of expansion joint (usually ½” wide and made of cork or recycled fiber material) is placed against the existing concrete slab and when the new concrete slab is poured, this expansion joint separates the two slabs.

Do you need joints in concrete?

Concrete expands and contracts with changes in temperature and moisture. If not properly controlled, cracks can begin to appear. Placement of concrete control joints and expansion joints are crucial when designing and pouring concrete slabs and sidewalks.

Does concrete need to be cut?

Cutting freshly poured concrete too late can lead to unwanted cracks in the concrete, rendering the joints ineffective. Too early and the concrete will not have cured enough to support the saw and operator. … For most concrete work, cutting should take place within the first 6 to 18 hours and never beyond 24 hours.

How do you make an isolation joint?

Isolation joints are created by placing the preformed joint material in the desired location before the concrete slab is poured. The slab is then cast with the isolation joint material acting as formwork between the slabs, though unlike formwork, the joint material remains permanently within the slab.

How big can a concrete slab be without expansion joints?

Rule #1 – Keep joints as square as possible. Rule #2 – In order to prevent intermediate cracking, space joints (in feet) no more than 2 – 3 times the slab thickness (in inches).

What happens if you don't put expansion joints in concrete?

If you have a concrete floor in your commercial building, you know expansion joints are necessary to allow for the natural expansion and contraction that occurs from temperature changes. Without these joints, large cracks can travel across your floor, creating costly damage.

Article first time published on

Does a concrete driveway need expansion joints?

Every concrete slab, inside (basements, garages, etc.) or outside (driveways, patios, entries, etc.) are required to have joints every eight feet horizontally and vertically. Expansion Joints provide space between concrete slabs as a buffer for expansion on hot days and contraction when it is cold.

How often do I need expansion joints in concrete?

Usually, expansion joints should be no farther apart than 2 to 3 times (in feet) the total width of the concrete (in inches).

What are concrete joints called?

In slabs, there are three types of joints: Isolation joints (also sometimes functioning as expansion joints) Construction joints (which can also function as contraction joints) Contraction joints (also sometimes called control joints)

What are the seams in concrete called?

Contraction/control joints are placed in concrete slabs to control random cracking. A fresh concrete mixture is a fluid, plastic mass that can be molded into virtually any shape, but as the material hardens there is a reduction in volume or shrinkage.

What can you put between concrete joints?

Expansion joints must be sealed with a flexible sealant, like QUIKRETE® Self-Leveling Polyurethane Sealant or QUIKRETE® Non-Sag Polyurethane Sealant…or an expansion joint strip, to prevent water from penetrating the joint and deteriorating the sub-base.

What are control joints and isolation joints?

Control joints- intentionally weakened sections through concrete slab. Resist tensile forces caused by concrete drying. Allows the concrete not to be disfigured. Isolation joints- completely separate the slab from adjacent elements. Major reason is to relieve potential stresses.

What is isolation joint in pipeline?

Insulating joints (or isolating joints or isolation joints) provide electrical isolation and cathodic protection in pipeline, tanks and pumping station where petroleum, gas and water are carrier fluid.

How does a monolithic isolation joint work?

Monolithic insulating joints (or isolation joints) provide just such protection. Specially designed to be shock absorbent and insulated against electrical charge, they isolate sections of pipeline so that currents can only pass so far. … The anode protects the pipeline from corrosion.

What happens if you don't cut concrete?

In hot weather, concrete might crack if joints are not cut within 6-12 hours after finishing concrete. In this condition, if you don’t want to use a grooving tool to cut joints, there are early-entry dry-cut lightweight saws that can be used almost immediately after finishing.

How do you cut concrete without cracking it?

Make sure there are no electrical or plumbing lines under the area. Next, connect your concrete saw to a running supply of water and power it up. Make sure you wear the necessary safety gear and clothing before you begin cutting. Finally, position the saw on one of the edges of the marked area and start cutting slowly.

How many times do you float concrete?

For a really smooth finish, repeat the troweling step two or three times, letting the concrete harden a bit between each pass. At first, hold the trowel almost flat, elevating the leading edge just enough to avoid gouging the surface.

Does a concrete patio need expansion joints?

Expansion joints are virtually never needed with interior slabs, because the concrete doesn’t expand that much—it never gets that hot. Expansion joints in concrete pavement are also seldom needed, since the contraction joints open enough (from drying shrinkage) to account for temperature expansion.

How do you join two concrete slabs together?

Tie Into the Existing Slabs When you’re joining two concrete slabs, connect the two with rebar to keep them at the same height. Drill the holes as deep as you can (the entire length of the bit) so the rebar fits snugly into the holes. Insert chunks of rebar and tie them into the grid.

What is the best material for concrete expansion joints?

Why Silicone is the Best Expansion Joint Filler First and foremost, it is flexible and durable, allowing it to accommodate the natural expansion and contraction of the slab without cracking or breaking its seal.

How thick should a concrete slab be?

Standard concrete floor slab thickness in residential construction is 4 inches. Five to six inches is recommended if the concrete will receive occasional heavy loads, such as motor homes or garbage trucks. To prepare the base, cut the ground level to the proper depth to allow for the slab thickness.

What makes concrete crack?

A piece of concrete in the open air usually shrinks during hardening. This shrinkage is due to the evaporation of part of the water contained in the concrete. Cracking occurs when shrinkage forces become greater than the strength of the concrete.

What do you put between House and concrete?

Seal cracks in concrete with durable urethane caulk. It’ll keep water out and protect your foundation and walks from further cracking and eroding. You can do it in less than a half hour.

What is the material between concrete slabs?

Trim-A-Slab is made from a rubber-like material that flexes and holds itself into the gap between concrete slabs. It is immune to rot, moves with slab expansion and contraction, and is not affected by moisture.

Where are expansion joints required?

Expansion joints occur through all parts of a structure to provide complete separation – through floors, walls, ceilings, and roofs (interior & exterior).

Where do you need expansion joints in concrete?

Concrete expansion joints are particularly important where there have been consecutive concrete pours and are also useful when laying concrete within an area bordered by walls or buildings or if objects such as manhole covers need to be incorporated.

What are the cracks in the sidewalk called?

If concrete sidewalks were poured as one continuous slab, weather-related expansion and contraction would cause them to crack, buckle and break. To combat this, contractors add uniform, evenly spaced cracks, known as expansion joints.
