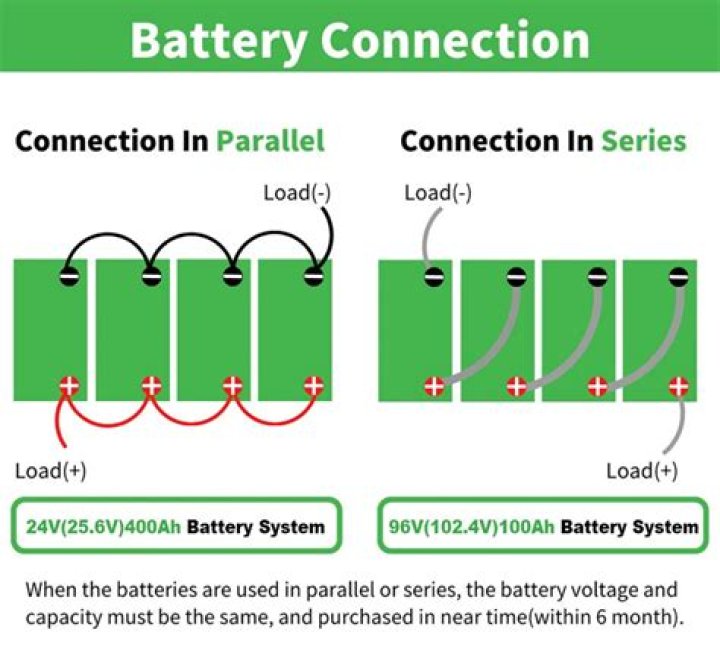

What happens when batteries are connected in parallel?
When two or more batteries are placed in parallel, the voltage in the circuit is the same as each individual battery. When batteries are connected in parallel, the current flowing through the circuit increases with the number of batteries in the circuit.
What happens when you connect batteries in series?
Make sure there is enough space between batteries to allow for minor battery expansion that occurs during use and to allow proper airflow to keep battery temperature down in hot environments. Connecting batteries in series does not increase the capacity of the batteries; it simply increases the overall voltage to meet your system requirements.
Can a SW inverter charge 6V lead acid batteries?
More detailed instructions are available in the user manual. The factory default settings on the SW inverter are not adequate for charging 6V Lead Acid Batteries. If the unit is disconnected from the batteries it will lose all settings & revert to factory defaults. The new SW Plus inverter will retain settings.
What should the battery selector be for deep cycle batteries?
For normal operation, the battery type selector should be set to # 1 – Deep cycle lead acid. For an Equalize charge, set the battery type selector to Equalize. We highly recommend the use of Battery Temperature Sensors (BTS), which is an option for DR inverters and C-series controllers, included with SW series inverter.
Can a battery be sealed in a battery box?
AGM batteries can also not be completely sealed inside a battery box, as they need some ventilation. In the image below, you can see how we decided to relocate our RV batteries to the pass through storage compartment under the bed of our Geo Pro 19fbs.
What kind of cable do I need to connect series parallel batteries?
Connecting Batteries in Series Parallel to Increase Battery System Capacity. When connection 6 volt batteries together, it is recommended to use thick diameter cable. 2/0 gauge Excelene welding cable has high flexibility and is rated for 600 volts. To purchase battery connector cables, click here
How are 6V batteries wired in series configuration?
In a Series Configuration the batteries are wired per the diagram below and the result would be a doubling of the voltage while the capacity remains the same. In our illustration we show two 6V batteries with 225AH wired together. The result would be a battery bank that produces 12V and 225AH.
What kind of cable do you use to connect 6 volt batteries?
When connection 6 volt batteries together, it is recommended to use thick diameter cable. 2/0 gauge Excelene welding cable has high flexibility and is rated for 600 volts. To prevent battery terminal damage due to electric arcing , it is also a good idea to use split washers to prevent the battery connection cable from coming loose.
Do you have to wire batteries in series?
You’re right, the two batteries need to be connected in series in order to turn them into one big 12-volt battery (so one short cable would connect the “+” of one battery to the “-” of the other… you can see a diagram showing that a the top of this page: ).
