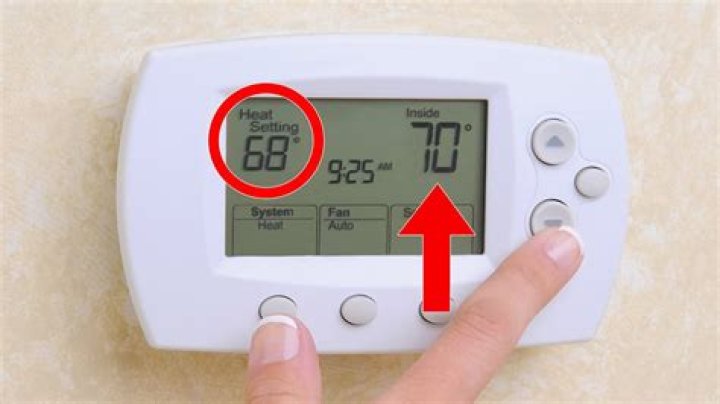

What happens to the thermostat when the time switch is off?
Rotating a room thermostat to a lower setting will result, the room can be controlled at a lower temperature and saves energy. The heating system doesn’t work if the time switch or programmer switch is off. The simple circuit of the electronic thermostat using IC LM356 is shown below.
How does the NTC work in a thermostat?
To adjust the proposed transistor thermostat circuit, the NTC is enclosed inside a glass tube and its leads are terminated out through long wires so that it can be placed over the desired location for the required sensing.
How is a circuit set in a thermostat?
The circuit is set by placing the thermistor glass tube along with a mercury thermometer inside a container filled with melting ice water, and in the next procedure its placed at ambient temperature and finally close to a gas burner for implementing all the setting levels.
What can a thermostat be used to control?
The electronic thermostat explained here can be used to control the room temperature by appropriately switching (turning on and off) a heating device. The circuit employs a thermistor NTC (negative temperature coefficient) as the sensor device.
How do you run a new thermostat wire?
Running New Thermostat Wire. The keyword there is “may” solve our problem. If the wire is not long enough for a proper termination at the new thermostat then take a small piece of thermostat wire about 6 inches long and use a small wire appropriate for #18 solid wire and wire nut the short piece to the 6-inch wire.
Where does the Red Wire go on a thermostat?
Yellow – The yellow wire connects to your compressor. Green – The green wire connects to the fan. Orange – This wire connects to your heat pump (if you have one). Red – Now, there can be two separate wires for this. One is for cool and the other is for heat, hence the abbreviation “RH” and “RC”.
What do you need to know about senasys thermostat switch?
Senasys Thermostat Switch was exactly what I needed to control a pair of cooling fans for my compressor. I purchased this switch to turn two 220 volt 6″ pancake fans on and off to cool the cylinder head of my Ingersoll Rand SS5L5 compressor pump.
What does each thermostat wire do or control?
What does each thermostat wire do or control and when are the various wires connected, taped-off, or connected to a labeled connector different than the wire’s ID label? In thermostat applications where a blue wire is used, the blue is usually a common circuit wire – e.g. providing the return path for the circuit. Trane heat pump products.
