What does a phase diagram of steel show?

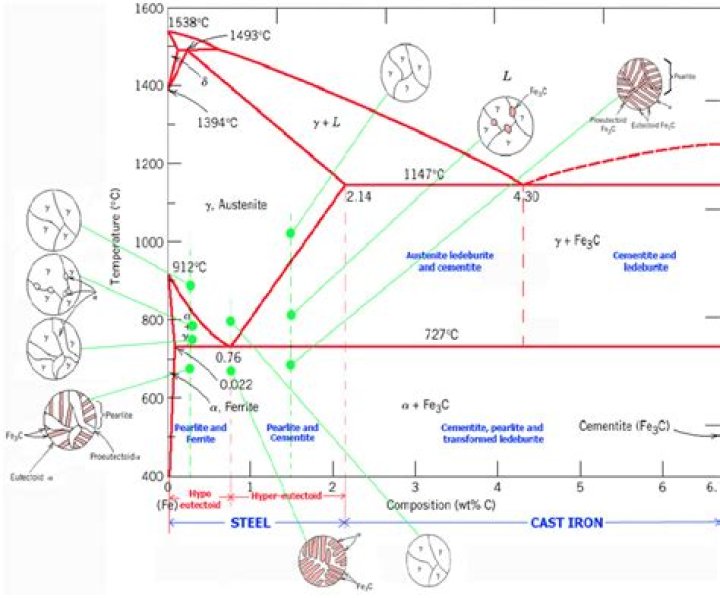

A phase diagram is a chart which shows the number and nature of phases that are present in a given alloy at any temperature and composition under equilibrium condition. Fig. 1.13 shows the different constituents of steel. There are four main phases of steels, viz., ferrite, cementite austenite and pearlite.
Which is the best description of structural steel?
Structural steel. Many structural steel shapes take the form of an elongated beam having a profile of a specific cross section. Structural steel shapes, sizes, chemical composition, mechanical properties such as strengths, storage practices, etc., are regulated by standards in most industrialized countries.
Is the shape and size of structural steel regulated?
Structural steel shapes, sizes, chemical composition, mechanical properties such as strengths, storage practices, etc., are regulated by standards in most industrialized countries.
What is the TTT diagram of steel in material science?
TTT diagram of steel has a very important application like austempering, martempering Patenting, and isothermal annealing which is commonly employed in industry for achieving specific properties in steel. What Is the TTT diagram in Material Science?
What kind of drawings are used for steel structures?
DRAWINGS OF STEEL STRUCTURES Blueprints used for the fabrication and erection of steel structures usually consist of a group of different types of drawings such as layout, general, fabrication, erection, and false work. These drawings are described in the following paragraphs. Layout Drawings
What do you need to know about structural steel?
Structural Steel – the structural elements that make up the frame that are essential to supporting the design loads, e.g. beams, columns, braces, plate, trusses, and fasteners. It does not include for example cables, ladders, chutes, grating, stairs, catwalks, handrails or ornamental metal.
How is the microstructure of steel formed during solidification?
The steel part of the phase diagram terefore has the typical lenticular two-phase region during solidification. The start of solidification is described by the liquidus line and the end of solidification by the solidus line. The microstructure is formed between these lines with a correspondingly slower cooling rate.
What are the dimensions of a structural steel bar?
The structural shape referred to as bar has a width of 8 inches or less and a thickness greater than 3/16 of an inch. The edges of bars usually are rolled square, like universal mill plates. The dimensions are expressed in a similar manner as that for plates, for instance, bar 6 inches by 1/2 inch.
