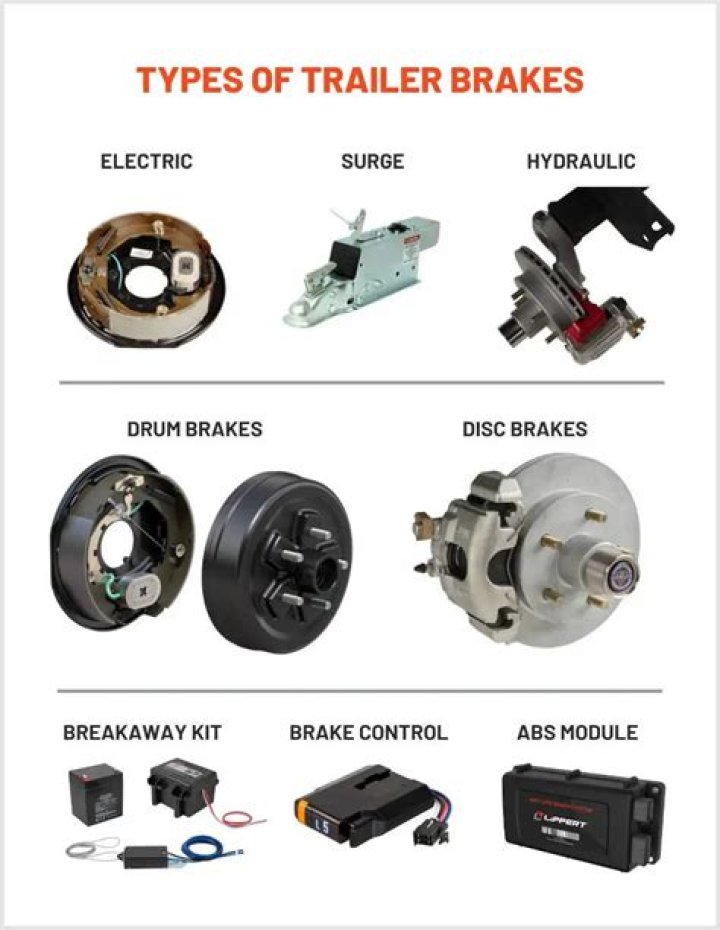

What causes weak electric trailer brakes?
Troubleshooting Brand New Trailer with Weak Electric Brakes Since the trailer is brand new most likely the issue is that the brake assemblies aren’t adjusted properly as this is the most common cause for weak brakes on a new trailer.
How much voltage should trailer brakes have?
If the power output is set to the maximum on the brake controller, it should be getting close to 12 volts. If the brake controller has a leveler knob that isn’t level, it won’t work if it’s titled or turned to the side.
How do you test trailer brakes with a 12 volt battery?
You can indeed test a trailer’s electric drum brakes by directly applying +12V power from a fully-charged battery. You can apply this power to the hot and ground contacts on the trailer’s plug (see photo please) or to an individual brake assembly’s two wires.
How much voltage does a trailer brake wire have?
I still get constant voltage at the trailer brake wire. When the brakes are not being pushed it shows ~4 volts at the rear of the truck, and when the brakes are being pushed it shows ~12 volts. This is all with the trailer not hooked up.
Can You tow a trailer without electric brakes?
This is a major safety benefit on longer and heavier trailers. In conclusion, if your trailer has electric brakes on it, you should properly equip the tow vehicle with a brake controller so that you can use the brakes on the trailer, and have a safer, more enjoyable towing experience.
Why are the brakes on my trailer not working?
This can cause a short inside the connector and the brake feed circuit and ground are at the bottom of the connector so moisture affects these connections first. Next, check the ground wire on the vehicle and trailer connectors, trailer brake magnets and the brake controller itself.
How does the break away system on a trailer work?
The breakaway switch wires – one is grounded to the trailer frame, the other is spliced into the brake wire going to the trailer tires. When I test the switch the brakes to not engage. The break away system on a trailer would typically have its own battery, like that shown with part # 20400.
I still get constant voltage at the trailer brake wire. When the brakes are not being pushed it shows ~4 volts at the rear of the truck, and when the brakes are being pushed it shows ~12 volts. This is all with the trailer not hooked up.
Are there any problems with electric trailer brakes?
Electric trailer brakes are a very well-engineered products. With few moving parts and no fluid to leak, they are as close to trouble free as any brake could be expected to be. For this reason, when there is an issue with electric brakes it is usually quite quick to diagnose.
What happens to trailer brakes when a magnet wears through?
When a magnet wears through, it is a dead short to GROUND, kills ALL the trailer brakes, and makes a controller act weird. It is truly amazing when electric brakes actually work and work well for an entire trip; I am surprised they are D.O.T. legal.
Why does the brake light come on when no trailer is plugged in?
That is true for the older non-electronic controllers. However, on an electronic controller, there is some voltage at the BRAKE wire at all times; because, when no trailer is plugged in, the little GREEN light is not lit; as soon as the trailer is plugged in, the GREEN light comes on.
