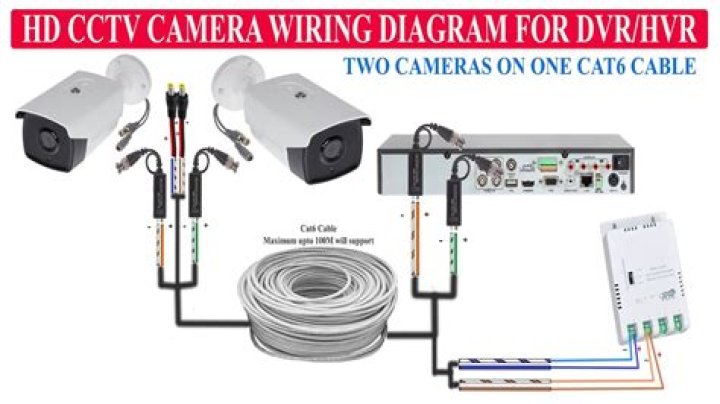

What cable do I need for security cameras?
If you have an analog or HD-TVI security camera system, you will need RG-59 Siamese cables to send power to and receive video from your security cameras. If you’re setting up an IP security camera system, you will most likely use cat5e Ethernet cables to send both power and data to your IP security cameras.
How many wires are there in CCTV camera?
A combination of two cables, it is made up of RG59 and 18/2 cable, the former for video transmission quality and the latter for power purposes. In other words, since RG59 is a coaxial cable, it helps in running the video to the security camera, whereas 18/2 cable helps in the AC/DC power to the camera.
Do BNC cables provide power?
Each one has its benefits. Such would include the fact that the RJ-45 cables we introduced today are able to carry power, video and audio all under one line while BNC cables are only good for power and video.
Can you use Cat 5 cable for security cameras?
Security cameras can be operated using only CAT-5 for both video and power. Category 5 cables and category 5 enhanced cables are normal copper 24 AWG, or American wire gauge, wires. They can carry current to devices that require low-voltage electricity. It can provide up to 15.4 watts of power.
Can you cut and join CCTV cable?
To splice one without using connectors, strip the outer insulation from the braid and pull it away from the cable, twisting as you go. Then cut away the inner insulation from the center wire, which may be braided or solid. Connect the two center wires by crimping them into a butt connector or soldering them.
What kind of power cable do I need for my CCTV camera?
The power cable in RG59 Siamese is 18 gauge. The power cable in pre-made cables is typically thinner and can not carry low voltage power as far. In summary, CCTV Camera Pros recommends using RG59 Siamese when possible. If the distance from your DVR to your security camera is 150 feet or less, pre-made cable works well.
How is the power supply for a security camera connected?
The power lead of the camera simply pushes onto the power lead of the Siamese cable. This is what it looks like when the cable is connected to the camera. If you are using an single security camera power supply, this is what it looks like when you connect the power supply to the cable.
What kind of plug n Play Cable do I need for a security camera?
These cables are tested to work with the following BNC camera types: analog CCTV (CVBS), AHD, HD-TVI, HD-CVI, HD-SDI. AHD and HD-TVI up to 4K resolution has been tested and verified. We guarantee to provide the highest quality plug-n-play security camera cables on the market. These cables allow you to run both video and power in one cable.
What are the different types of camera cables?
Not all camera cables and connectors are the same. There are three types of cables and connectors that are common in CCTV systems: BNC, DIN, and RCA.
What kind of cable do I need for my security camera?
Security Camera Cables, CCTV BNC Camera Cable, Video Power. CCTV Camera Pros sells various lengths of pre-made security camera cables with BNC and power connectors. This type of cable is known as Siamese cable and BNC video power cable.
What kind of power supply do I need for a CCTV camera?
Power Supply Box Wiring. If you are using a CCTV power supply box with pre-made cable, you need to attach a PT-3 power lead to the DVR side of the cable. This is because power supply boxes do not use the 2.1mm plug connector on the cable. Power supply boxes have + / – screw terminals.
What kind of BNC cable do I need for a surveillance camera?
This type of cable is known as Siamese cable and BNC video power cable. Our pre-made surveillance camera cable enable quicker installations for DIY and professional security installers. Our pre-made BNC camera cables are HD CCTV rated.
What does an 18 / 2 wire do on a surveillance camera?
The 18/2 wire is actually two separate 18-gauge wires and they are used to transmit power from a power supply to the surveillance camera. These two combined cables let you bring power and video to your cameras by just pulling one cable.
