What are the wires on a solenoid?
Solenoid wiring typically is a simple, two-wire system consisting of power feed and return wires connected to the solenoid coil, interrupted at some point by a control circuit trigger mechanism.
How does a two wire solenoid work?
A solenoid works by producing an electromagnetic field around a movable core, called an armature. When compelled to move by the electromagnetic field, the motion of that armature opens and closes valves or switches and turns electrical energy into mechanical motion and force.
What are the 4 terminals on a solenoid?
Sometimes, there are 4 terminals on the solenoid cap, and those are: terminal B (or 30), terminal M (or C), start terminal S (or 50) and ignition terminal R (or 15a), as shown in Fig below.

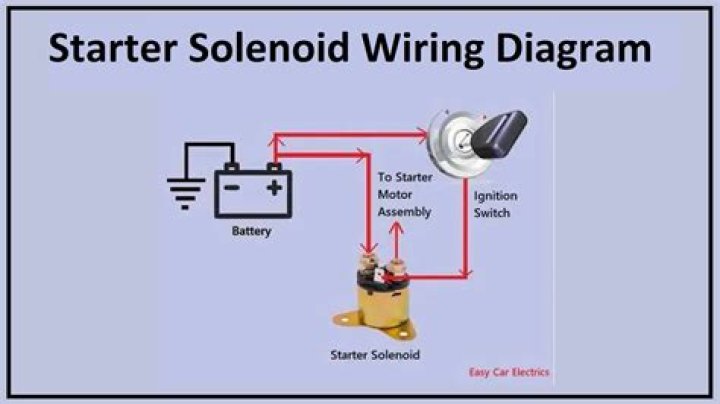

How are the terminals on a solenoid starter connected?
One of the larger terminals is connected to the hot wire coming from the battery, the second large terminal is connected to the starter, the first smaller terminal (S) connects to the ignition switch, the second small terminal connects to either ballast resistor (R) or ignition coil (I) and is generally unused.
What do you need to know about a solenoid?
WHAT IS A SOLENOID? Solenoids are an electrical device that move a plunger in a straight line by running an electric current through a coil and using the resultant magnetic force. This straight line movement allows us to reach speeds unachievable with a motor, making solenoids suitable for a wide range of uses and limited only by your imagination.
What kind of wire to use for solenoid?
If you want, you can use brown or orange cables on the high current end of the circuit, to distinguish them from the solenoid to battery connections. The color of those wires will depend on whether you are switching ON and OFF the negative or the positive cable of the device that you are going to handle with the solenoid.
How does a 4 pole solenoid switch work?
When a small current is applied to a solenoid, a coil located inside generates a magnetic field that moves a plunger that drives the high current switch to the closed position. Please watch this video for more detailed information on 4-pole solenoid wiring (schematics):
