What are the symptoms of a bad master brake cylinder?
Diagnosing a bad brake master cylinder
- No Brakes. The most obvious symptom of a bad master cylinder is brakes that don’t work at all.
- Poor Braking. Since usually only the brakes at the front or back will go out at a time, you will likely notice your car doesn’t stop as well as it should.
- Inconsistent Brakes.
- Leaks.
How do I know if my brake booster is leaking master cylinder?
The Symptoms of a Bad Brake Booster or Master Cylinder
- Illuminated brake warning light on the console.
- Leaking brake fluid.
- Insufficient braking pressure or hard brakes.
- Spongy brakes or sinking brake pedal.
- Engine misfire or stalling when the brakes are applied.
Can brake fluid leak from the master cylinder?
Brake fluid leaking from the rear of the master cylinder bore is usually bad news because it means the seals are leaking. But sometimes a leak at the vacuum booster input seal and/or pushrod misalignment can cause a fluid leak, so a closer inspection is needed to determine the cause.
What causes a brake master cylinder to leak?
If the rubber seals get damaged or are worn out, then it can result in an internal leak. This can cause the brake pedal to feel spongy and soft.
What does the brake warning light on a master cylinder mean?
Usually, the brake warning light will illuminate to indicate low brake fluid level or parking brake engagement, and some vehicles may also illuminate the brake warning light to indicate brake pressure problems. Before condemning the master cylinder, though, check for leaks in other parts of the brake system.
What causes a spongy response on the brake pedal?
The master cylinder generates the right level of hydraulic pressure to activate the brakes in the front and rear wheels. If there is a problem with the master cylinder, you may notice a very spongy response in the brake pedal. One of the most common reasons why you may have a master cylinder-related spongy brake pedal is worn-out rubber seals.
What causes the master cylinder in a car to wear out?
As the heart of the brake system, the master cylinder performs a number of important functions: it holds the brake fluid, generates hydraulic pressure, and feeds it to the front and rear brakes. Unfortunately, the master cylinder can wear out and develop leaks.
What happens if your brake master cylinder leaks?
Aside from contaminating the fluid, a brake master cylinder with worn seals will not be able to hold brake pressure as effectively and may result in a mushy pedal or one that slowly sinks to the floor. 3. Leaking brake fluid
Usually, the brake warning light will illuminate to indicate low brake fluid level or parking brake engagement, and some vehicles may also illuminate the brake warning light to indicate brake pressure problems. Before condemning the master cylinder, though, check for leaks in other parts of the brake system.
Where is the brake fluid located on a master cylinder?

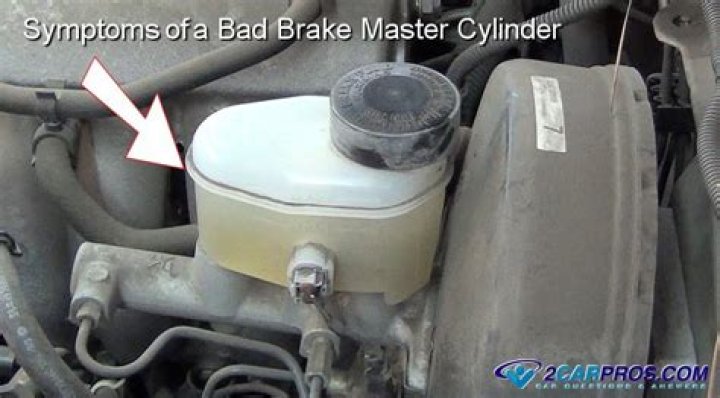

On top of the master cylinder is the brake fluid reservoir, usually attached directly, but sometimes connected by a hose. Gravity feeds brake fluid to the master cylinder, filling the space around two pistons, one for each circuit.
What causes a brake master cylinder to turn brown?
Contaminated brake fluid. Another symptom of a bad brake master cylinder is contaminated brake fluid. Brake master cylinders use rubber seals which can break down and wear out over time. When they do, they can contaminate the brake fluid and will turn it dark brown or black color.
