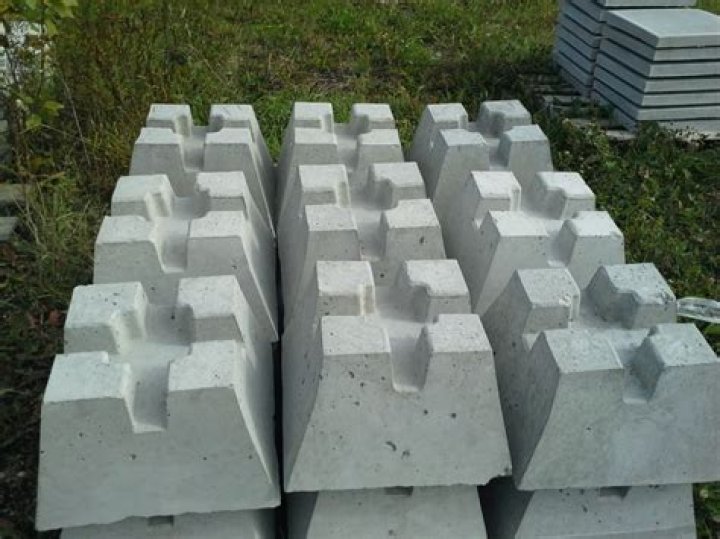

Deck blocks are precast concrete blocks used to hold up beams for supporting structures, especially floating decks. There are different types of deck blocks; some have notches to hold beams, joists, and posts, which makes them excellent for constructing freestanding decks (decks not attached to the building.)
What do you put under deck blocks?
Deck blocks should be installed on stable, non-organic material with good drainage. You can put gravel, sand, or limestone screening under a deck block. Deck blocks can also be set on poured concrete columns dug to below the frost level.
When can deck blocks be used?
Deck blocks can only be used for floating decks. If you are not comfortable with the idea of your deck rising and falling with the ground. Then deck blocks are not for you. Frost level footings are more stable and can support more weight, and last much longer than deck blocks.
How do you use deck blocks?
Simply placing them on the ground or on a poured concrete pad a few inches deep usually isn’t enough to comply with codes — they must be set at least 12 inches deep in undisturbed soil. However, concrete deck blocks can be used without restriction for a freestanding deck that’s not attached to your house.Will deck blocks sink?
The deck blocks can sink if the soil under them erodes for some reason or the weight is unevenly distributed. That’s why it’s a good idea to use more than less. … Especially in loose soils or wet conditions which requires more weight distribution.
How much weight can a concrete deck block hold?
All concrete blocks must support at least 1,700 pounds of weight per square inch according to standards published in 2003 by the international building standards non-profit. Minimum requirements are only described in the standard.
Do deck blocks need to be buried?
Although they can be buried, and sometimes are, they’re really designed to rest on the ground and spare the builder from digging, although the ground may require some leveling first. One advantage of sitting on top of the ground is that deck blocks are unaffected by frost heaving.
How much space should be between deck blocks?
Space the deck blocks at 4′ to 6′ intervals to offer the frame good support.Can you use concrete deck blocks for Shed?
Small- to medium-sized sheds, up to 160 square feet, can rest on an on-grade foundation. The types of foundation for these sheds can include a gravel pad, paving blocks and lumber, solid concrete blocks and lumber, or deck blocks and lumber.
How many deck blocks do I need for a 10X10 deck?For example, a 10 x 10 floating deck needs four-deck blocks. Four deck blocks can hold 8 000lbs, almost twice the support necessary for a 10 x10 deck.
Article first time published onHow many deck blocks do I need for a 10X10 shed?
Shed SizeNumber of Blocks8X10108X121210X101410X1216
Can you use concrete blocks for shed base?
Concrete shed foundation blocks are a great way to create a level base for your shed. They can be doubled up to give a wide base, or stacked to build piers for higher clearance or uneven slopes. Concrete blocks are ideal for flat or on-grade foundation support. They raise your structure off the ground and won’t rot.
How many concrete blocks do I need for shed foundation?
To build a shed, you will need 20 to 60 blocks for the foundation, depending on the size of your shed. If your shed is on unlevel ground, you will need more blocks to stabilize it. If you are building a 6ft x 8ft or smaller shed, concrete blocks are not required as long as the ground is level.
How do you build a deck without digging?
If you’re ready to start planning, there are two great options to build a deck without digging any holes: surface deck blocks and deck foot anchors. The cheapest foundations are deck blocks, which can be purchased for less than $12.00 a piece. Deck blocks sit on the ground, so proper planning is essential.
How do you put a block on a shed?
- Use only solid concrete blocks for a permanent shed foundation. Concrete blocks with openings in them eventually crack and crumble under the weight of a shed.
- Place your shed in full sun in an open area at least 3 feet away from structures and overhanging trees.
How do I keep my deck from sinking?
Jack up the deck, using high-lift jacks. Dig under the deck post just enough to place the deck post into the hole and release the pressure on the jacks. The post settles into the 4-by-4 hole in the footing for a permanent concrete foot that resists sinking.
How do I keep my floating deck from sinking?
This is accomplished by threading a 2×4 through the top of the post, then turning it to auger the post into the ground. As if that’s not enough, once the post has been driven into the earth, a sled hammer is used to make sure the pier is compacted into the earth, preventing sinking once the weight of the deck is added.
Can I use cinder blocks for deck foundation?
When it comes to floating decks, which are decks that are built very close to the ground, they don’t need any sort of footing. You can either use small concrete blocks and planks, or you can use a post that sets into a pre-formed hole.
What is a floating deck?
A floating deck is a deck that isn’t attached to a building and they “float” above the ground. Generally, floating decks are low to the ground and don’t require handrails or even staircases. They are sometimes called “grade-level” or “freestanding” decks because they’re built just above the ground level, or grade.
How do you build a floating deck over grass?
- Prepare the Deck Area. Clear the ground where the deck will be installed, removing grass and all other organic material, as needed. …
- Set the Concrete Blocks. …
- Build the Outer Frame. …
- Position and Square the Deck Frame. …
- Check the Blocks. …
- Install the Remaining Joists. …
- Install the Deck Boards.
Are concrete deck blocks good?
The blocks are preformed concrete units, as such, makes it easy and quick to construct decks. They make excellent foundations for small to medium decks when used correctly, as they have considerable load-bearing abilities. … Deck blocks are great options for building a grade-level deck that requires no permits.
What is the difference between a cinder block and concrete block?
Cinder blocks are hollow rectangle-shaped structures usually made of concrete and coal cinders which find use in construction sites. Concrete blocks often, on the other hand, are flattened constructs made of steel, wood or cement.
Are concrete blocks load-bearing?
Concrete blocks should: The maximum load-bearing capacity of the wall should not be exceeded. Other factors may dictate the strength of blocks required in certain circumstances, e.g. sulfate resistance may require blocks of greater strength.
How many block do I need for my foundation?
Add the wall lengths to determine the total linear length. A standard block is 16 inches long, which means that one foot equals three-quarters of a block. Multiply the total linear length (in feet) by 0.75 to obtain the total number of blocks needed for one course.
Should I put my shed on blocks?
Foundation Blocks Do Not Block Grass and Weeds Grass and weeds growing against the sides of your shed can be a problem because it does not allow the bottom of your shed to dry out after rain. This can cause premature rot and supports the growth of mold and mildew.
Where do you put block on a deck?
One of the most popular ways to install deck blocking is to snap a chalk line across the center of your joists and install the blocking on alternating sides of the chalk line. This is done to allow direct nailing of each block.
Can I use deck pier blocks instead of footings?
Pier blocks can be used instead of footings for a ground-level deck not requiring permits. … Any decks higher than 24” require concrete piles 10” in diameter and 48” below grade. These footing size requirements are to ensure enough soil bearing to prevent the joist from sinking in the ground.
How many footings do I need for a 12x12 floating deck?
For an attached 12 x 12′ deck, you’ll need at least 3 footings, plus at least 2 more if you’re planning on building stairs with it. If your deck will be a different size, it’s easy to figure out how many you’ll need.
What material do I need for a 12x12 deck?
You will need 18 boards of 2-by-6-inch lumber or nine 2-by-10 inch boards to build the joists, also known as the beams. You should purchase an additional 25 percent wood to allow for framing pieces and waste.
Do I need joist hangers for a floating deck?
2 Answers. You don’t need joist hangers. Joist hangers are for use in spots where you’re unable to put the nails directly through the frame into the joist already.
Can I use cinder blocks for a shed foundation?
Any time you build a shed, it needs some sort of foundation to act as a buffer between the shed and the ground. An on-grade shed foundation made out of cinder blocks is a quick and easy foundation to construct. Made of concrete masonry units, or CMUs, this type of foundation usually takes very little work to set up.
