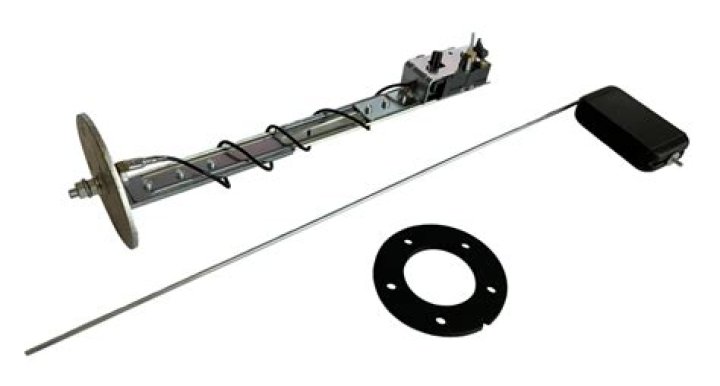

Is it hard to replace a fuel sending unit?
In most cars this is a fairly straightforward process. Check your repair manual, but if your car’s fuel tank sending unit is located under the rear seat or in the rear cargo area, where a large percentage of fuel senders are accessible, you’re in luck. It’s easy!
How long does it take to replace a fuel sending unit?
A professional mechanic would require roughly 5 hours. (If just the regulator is replaced that takes about 1 hour). A professional mechanic would require roughly 5 hours.
How much does it cost to change a fuel sending unit?
The average cost for fuel level sending unit replacement is between $844 and $1,002. Labor costs are estimated between $156 and $197 while parts are priced between $687 and $805.
How do I know if my fuel sending unit is working?
Make sure there is a good ground connection as well. To verify the fuel sending unit is receiving proper voltage, set the multimeter to 20 volts. With the battery turned on, back-probe the input connector on the sending unit and check for voltage. Refer to the Service Manual for proper voltage.
How to replace an in-tank fuel sending unit?
Lower the new unit into the tank, being certain that if there are any wires or hoses in the tank, the movable float arm remains clear of interference. Install the lock ring, and do not overtighten it. Reconnect the hoses and wiring connectors, and secure all covers in the reverse order they were removed.
Can a fuel gauge be modified to fit a sender?
Note that senders are not usually “plug and play” units. The length of the sender arm may have to be modified to fit the dimensions of your fuel tank. This also ensures that the gauge reads properly. First measure tank depth from the top of the tank, near the sending unit, to the bottom.
How do you remove a fuel gauge from a tank?
Remove the screws that hold the sending unit to the tank and take it out. Next, remove the three wires on the back of the old gauge. One wire goes to the center pin on the tank sending unit, one goes to ground, and the third connects to a 12-volt source, normally the ignition switch. Remove the fuel gauge.
Do you need to remove fuel tank pickup?
The Duramax Fuel sending unit pickup assembly is very restrictive and not designed to provide the large volume of fuel required to support high horsepower numbers. It is relatively easy to improve the flow potential on these vehicles. To start, you will need to remove the fuel tank from the vehicle.
