How to wire two 6 volt batteries in series to double?

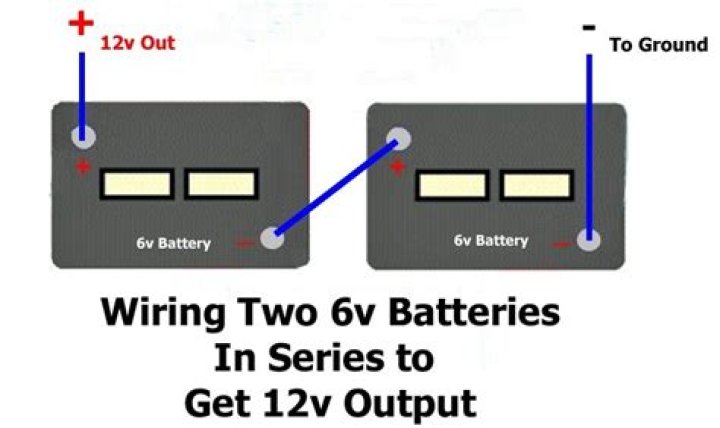

Expert Reply: To wire two 6-volt batteries in series to produce 12-volts, you would connect the load to the positive terminal of battery # 1. Connect the negative terminal of battery # 1 to the positive terminal of battery # 2. Ground the negative terminal of battery # 2. I have produced a diagram showing the connections for you. Click to Enlarge
Can you wire more than one battery to an RV?
If you are creating a large solar power bank with 8 or more batteries you are going to need to apply methods like these to keep all your batteries healthy but for a few extra RV batteries, you can wire in other ways to create balanced camper batteries.
What kind of batteries are used in RVs?
There are three major type of batteries: flooded lead acid batteries, Absorbed Glass Mat (AGM) batteries, and Gel Cell batteries. We will only address the first two, since the Gel Cell batteries are no longer used much as RV batteries. There is an additional subdivision of whether the battery is a starting battery or a deep cycle battery.
Can a 12V battery be connected to a 6V battery?
This way of parallel connecting 12V RV batteries does technically work. You can see in the graphic below that the positive terminals are connected and the same with the negatives. Having both of the load wires from the RV on the same battery will create an unbalanced circuit.
If you are creating a large solar power bank with 8 or more batteries you are going to need to apply methods like these to keep all your batteries healthy but for a few extra RV batteries, you can wire in other ways to create balanced camper batteries.
How does a parallel battery bank work in a RV?
Another set of cables connects the remaining positive and negative terminal to whatever you are connecting the batteries to. Connected batteries should have the same voltage and amp rating. A parallel RV battery bank increases the current but allows the voltage to stay the same.
What kind of batteries are in a travel trailer?
Even my travel trailer came with two deep cycle 12 volt batteries in two plastic battery boxes wired in parallel on the tongue of the trailer. In the graphic above you see that the terminals are wired in parallel using even lengths of cable.
This way of parallel connecting 12V RV batteries does technically work. You can see in the graphic below that the positive terminals are connected and the same with the negatives. Having both of the load wires from the RV on the same battery will create an unbalanced circuit.
