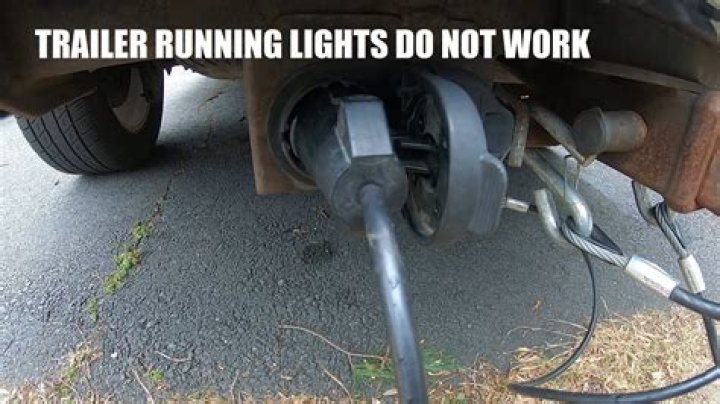

How to troubleshoot no running lights on trailer but turn?
Testing the truck’s connector tells if the problem is on it or the trailer. If everythig checks out here then the issue is on the trailer side. If you have a problem on the truck then you need to trace the wires coming from the connector looking for any damage. You should also check the ground connection making sure it’s clean and solid.
What kind of wiring do you need for a trailer?
For trailers that have a little more going on electrically, we recommend 7-pin connectors. The 2 added pins are for Auxiliary Power and Back-up Lights. Expanded Use Trailer + with Brakes, Aux Power & Back-up Lights = 7-Pin Connector . (6-Pin Connectors also exist, but they are less common.)
What should I do if there are no lights on my camper?
The main trailer connector grounds and the grounds for each of the lights need to be attached to clean and corrosion free bare metal surfaces. On the 7-Way connector, check to make sure there is no corrosion built up where the wires attach.
Where does the white wire go in a trailer?
The White Wire is the “Ground” or “Negative” wire connecting to the vehicle battery “minus” side. The trailer wiring diagram shows this wire going to all the lights and brakes. Also, it must connect with things (if included) that use the Aux Power and Back-up lights too.
Testing the truck’s connector tells if the problem is on it or the trailer. If everythig checks out here then the issue is on the trailer side. If you have a problem on the truck then you need to trace the wires coming from the connector looking for any damage. You should also check the ground connection making sure it’s clean and solid.
How does a custom trailer light wiring harness work?
A custom wiring harness has multiple plugs that are used to ‘T’ into the vehicle’s taillight assembly, drawing power directly from the taillights or from a direct battery connection and providing a standard trailer light wiring connector. While custom wiring harnesses usually require two or more connection points, splicing and soldering are
What kind of wiring do I need for a light duty trailer?
4-Way Connectors 4-Way connectors are available allowing the basic hookup of the three lighting functions (running, turn, and brake lights) plus one pin is provided for a ground wire. Most standard light duty trailers will use a 4-pole flat connector.
What causes a trailer wiring harness to short out?
If the wiring harness worked properly when installed but then went bad, there is a strong possibility that it has shorted out because of a problem with the trailer wiring. Make sure to correct any trailer wiring problems before installing a new wiring harness. When too many amps are drawn through the converter box, it can be shorted out.
