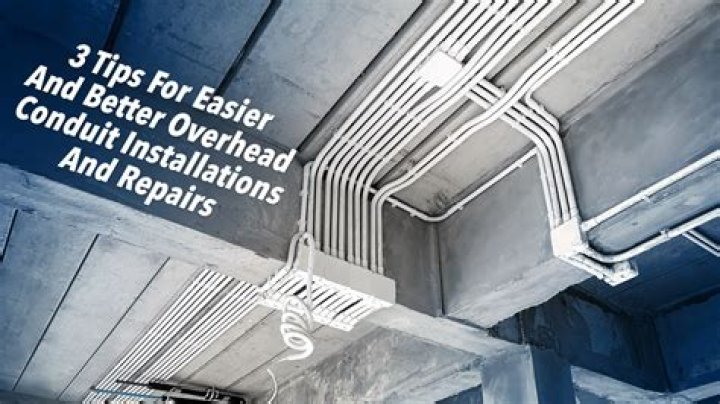

PVC must be supported every 3 ft. for trade sizes ½ inch through 1 inch. The support distance increases as the conduit size gets larger. For example, 2 inch PVC conduit can be supported every 5 ft; 6 inch PVC conduit can be supported every 8 ft.
How far can conduit span without support?
Conduit SizeDistance Between Supports1″12 Feet1¼” – 1½”14 Feet2″ – 2½”16 Feet3″ and larger20 Feet
How often should flexible conduit be supported?
Once in a great while an electrician might use flexible metal conduit (FMC). The general rule for securing and supporting FMC is to fasten it within 12 inches of the box and secure it no further than every 4.5 feet.
How often does rigid conduit need to be supported?
RMC must be supported at intervals not exceeding 10 ft.(2) Straight Horizontal Runs. Straight horizontal runs made with threaded couplings can be supported in accordance with the distances contained in Table 344.30(B)(2).Do conduit bodies need to be supported?
Conduit Bodies (Condulets) Conduit bodies (condulets) of any size can be supported by the attached raceways as stated in the exception to Section 370-23(e). Unless the conduit body is independently supported, two raceways must be installed for support.
What is the minimum distance between conduits?
Multiply one of the 2-inch conduits by six (2 x 6 = 12). Unlike the requirement for sizing an angle pull, do not add anything else to this number. The minimum distance between the two raceways on the bottom is at least 12 inches (see Figure 2).
How often should an electrician secure conduit between enclosures?
The general rule for straight runs of RMC, IMC, and EMT is that they are required to be securely fastened at intervals of no more than 10 feet (3 m).
How often should you secure Romex?
General Cable Support Runs of NM cable must be supported at least every 54 inches. 1 They also must be secured within 12 inches of an electrical box that includes a cable clamp or within eight inches of a box or enclosure without a cable clamp.What is the maximum distance 3/4 RMC conduit can be strapped or supported?
RMC shall be securely fastened within 900 mm (3 ft) of each outlet box, junction box, device box, cabinet, conduit body, or other conduit termination. Fastening shall be permitted to be increased to a distance of 1.5 m (5 ft) where structural members do not readily permit fastening within 900 mm (3 ft).
What is conduit support?The versatile z-shaped design of the B-Line series conduit trapeze support allows for quicker installation and support of multiple sizes. of conduit, MC/AC cable, cable tray and other accessories, such as electrical boxes. The solution installs up to 50% quicker than traditional strut.
Article first time published onHow often does FMC need to be supported?
FMC shall be securely fastened in place and supported in accordance with 348.30(A) and (B). FMC shall be securely fastened in place by an approved means within 300 mm (12 in.) of each box, cabinet, conduit body, or other conduit termination and shall be supported and secured at intervals not to exceed 1.4 m (4 1/2 ft).
Do you need to use primer on PVC conduit?
PVC Conduit Doesn’t Need Primer Some PVC pipes require primer, but you don’t need to use primer when gluing conduit and fittings. Home centers usually sell the appropriate glue/cement near the the PVC conduit and fittings. Measure as carefully as you can so you can avoid dry-fitting your connections.
Can conduit support a box?
Essentially, rigid metal or intermediate metal conduit can support an enclosure that is supporting a fixture where the conduit is secured within 18 inches of the enclosure. … This exception also permits a single conduit to support a box used for fixture support or a wiring enclosure used in lieu of a box.
How often does PVC conduit need to be supported?
PVC must be supported every 3 ft. for trade sizes ½ inch through 1 inch. The support distance increases as the conduit size gets larger. For example, 2 inch PVC conduit can be supported every 5 ft; 6 inch PVC conduit can be supported every 8 ft.
What does LB stand for in electrical conduit?
LB stands for line box. It is often used at the point where you will begin pulling wire through the conduit. However, it is not a junction box and should not contain wire connections.
What is the difference between EMT and RMC?
The biggest different between RMC and EMT is that EMT is a lot lighter. It has thinner walls and is also unthreaded. As a result, it’s a very popular option for use in commercial buildings. Connecting sections of EMT is easier.
How often should MC cables be strapped?
According to NEC Article 330.30, MC cable must be supported and secured at intervals of 6 feet or less (unless routed through a framing member) and cables containing four or fewer conductors sized no larger than 10 AWG must be secured within 12 inches of every termination.
Is EMT rigid conduit?
Electrical Metallic Tubing—EMT EMT is also called “thin-wall” conduit because it is thin and lightweight, especially compared to RMC. EMT is rigid but can be bent with a simple tool called a conduit bender.
How far apart should junction boxes be?
In it, the specification is very clear: for internal pipes, the distance must be up to 15 meters, and, in external pipes, it must be up to 30 meters, in a straight line. When it comes to curves, the limit of 15 and 30 meters must be reduced by 3 meters for each 90º curve.
What should be used to cut conduit?
You should use a powered handsaw when you have a good deal of conduit to cut or many cuts to make. This keeps you from tiring out and helps you hold the blade at a 90-degree angle with the pipe.
How Far Can 3/4 EMT span?
Conduit Trade SizeMax Distance Between Supports Rigid Metal (PVC)(in)(mm)(ft)3/42110127121 1/43514
What is the combination of bends between pull points?
National Electrical Code or NEC limits the total number of bends in one continuous run to 360 degrees or four 90 degree bends. It specifically states, “There shall not be more than the equivalent of four quarter bends (360 degrees total) between pull points, for example, conduit bodies and boxes.”
Where NMSC is run between boxes and fittings It shall be supported by straps or other devices located within?
Exposed NMSC must be strapped or supported at intervals of not more than 1.5 metres and within 300 mm of every box.
Is it OK to run Romex in conduit?
Running Romex in a Conduit When using any non metallic wire outdoor, including Romex, it is a good idea to run it through a conduit. Yes, they can be used outdoors, it is better to be safe than sorry. We recommend using a conduit when running the wire underground.
How far apart should Romex be stapled?
334.30 Securing and Supporting Nonmetallic-sheathed cable shall be supported and secured by staples, cable ties, straps, hangers, or similar fittings designed and installed so as not to damage the cable, at intervals not exceeding 1.4 m (4 1⁄2 ft) and within 300 mm (12 in.) of every outlet box.
How far apart does Romex have to be stapled?
If stacking Romex cables is important, it must be done with stack fasteners and not under staples to make sure that there is no risk of your house failing inspection, and therefore, you get fined. The clamps, staples, or braces holding a Romex cable shouldn’t be any further than 4.5 feet.
What is the maximum support distance for 3 inch PVC conduit?
Maximum Support Spacing (feet)NPS (inches)Operating Temperature (oF)273.5384494.5
What supports service drop on the building?
Where a service mast is used for the support of service-drop conductors, it shall be of adequate strength or be supported by braces or guys to withstand safely the strain imposed by the service drop.
How many Number 8 wires can you fit in a 1 inch conduit?
Size and Type of Conduit14 AWG Wire8 AWG Wire1/2-inch EMT1233/4-inch EMT2261-inch EMT3591 1/2-inch EMT8422
How long can a conduit run be?
Section 250-18 limits flexible metal conduit to 6 ft only for grounding. In lengths over 6 ft, you must install a separate grounding conductor.
Can flexible conduit be exposed?
According to 348.10 of the 2011 NEC, flexible metal conduit (FMC) is permitted in exposed or concealed locations.
