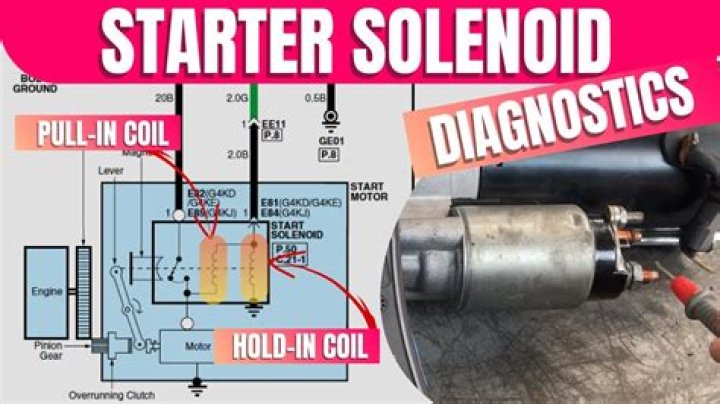

How much voltage does a starter solenoid need?
Repair the circuit or replace the ignition switch as needed. Minimum solenoid pull in voltage is 8 volts. The solenoid grounds through the starter. Poor starter grounds or poor connections at the solenoid to starter terminal will cause solenoid engagement problems.
How can you tell if a 12 volt solenoid is bad?
Our Expert Agrees: If your starter solenoid is bad, you may hear a clicking sound when you turn the key, or your vehicle may not have any power at all. Check the battery. If your starter is failing to engage, it may be because the battery does not have sufficient energy to power it.
What should the voltage be on a starter solenoid?
Today I checked the voltage to the solenoid while starting and found it was about 9.5 V (see ). Voltage at the battery is about 12.4. So I’m thinking there’s a wiring issue between the battery and the solenoid or the ground. Has anyone run into this issue?
Why is my solenoid running at low voltage?
If the solenoid only has a single connection for the +12v and no ground connection, just uses the steel for a ground, then its more than likely the incoming +12v is bad. I would try to figure out if the +12v power to operate the solenoid is ran thru any relays.
What is the small terminal on the solenoid?
It is the small terminal with the “L” shaped rubber boot that is a push in type connector. I thought this was ignition switch related but wasn’t as I just replaced it with a new one today. Brand new starter relay works because I jumped the small terminal and the car cranked over.
Is the solenoid on a truck a safety switch?
Vocational, Technical or Tra… Truck will not start, bypassed starter solenoid and starts fine, suspect Clutch Starter Safety switch. Please give your opinion … read more
What to do if solenoid does not have voltage?
If you do not have voltage at the post on the solenoid that connects to the battery, check your connection at the battery and then trace the cable from the battery to the solenoid checking for any breaks or a loose connection. The other wire should not have a voltage reading.
Can a four wire solenoid start a lawn mower?
If your solenoid is a four wire solenoid, check both small wire terminals as one is ground and the other is power from the ignition switch. If your solenoid is a three wire solenoid, make sure the solenoid body is not corroded where it bolts to the chassis of the mower as this is your ground path back to the battery.
What do you need to know about a starter solenoid?
A starter solenoid is a switch that controls a high amp load with a low amp. Starter solenoids come in all different shapes and sizes, but normally they have a round or square body with two larger and two smaller wires.
