How many wires do I need for a heat only thermostat?
What Is a Heat Only Thermostat? A heat only thermostat is a home thermostat which can only heat the air temperature, and not cool it down. Because they only have one function, they are 2 wire thermostats, usually consisting of a red wire for power and a white wire for heating.
What kind of C wire do I need for my thermostat?
You may already have a C-Wire installed in your existing thermostat. Look for a blue or a black wire – this is the common colors used for a C-Wire. Most of HVAC professionals are labeling the wires they put into homeowner’s walls.
Can you run a C wire on an Emerson thermostat?
Emerson offers a thermostat common power extender kit, like the ecobee PEK. It makes possible to run a C-Wire when any sort of extra wiring isn’t an option. This adapter seems to be variation of Add-A-Wire kit mentioned above.
How many wires does a heat pump thermostat need?

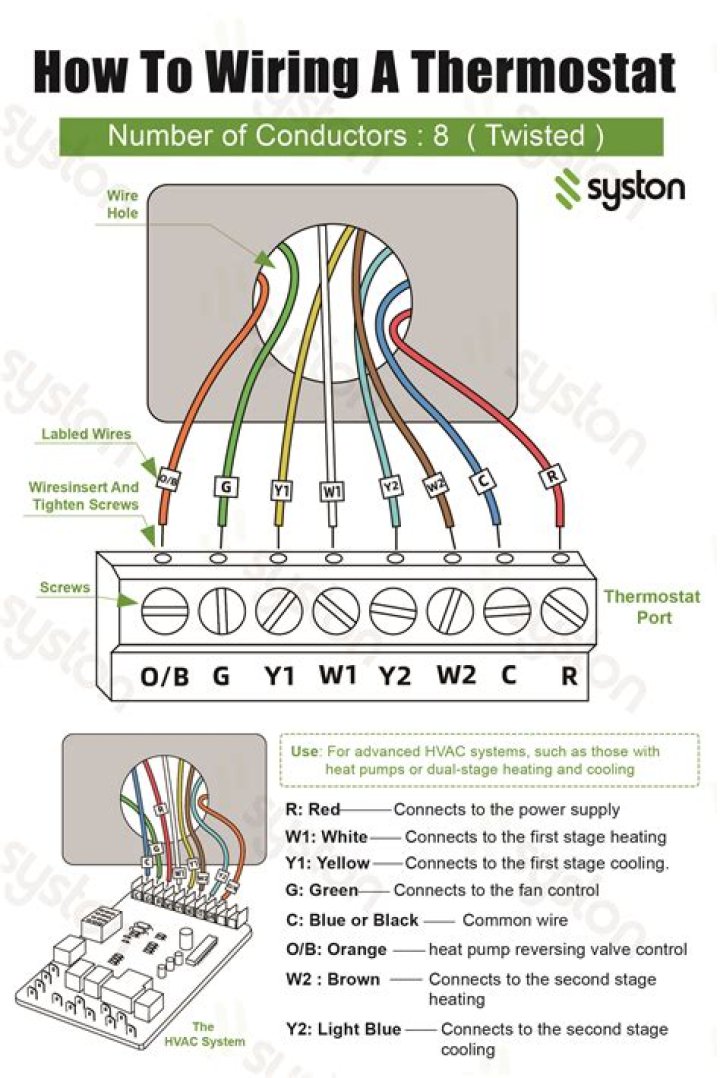

In heat pump system, there are at least 8 wires that need to be connected to the thermostat for proper operation. Heat pump thermostat wiring – A typical wire color and terminal diagram. As shown in the diagram, you will need to power up the thermostat and the 24V AC power is connected to the R and C terminals.
How are Y1 and W2 wires chosen for a thermostat?
Y1 wire controls 1st stage cooling and W2 controls 2nd stage cooling. As you can see technicians selected the names for the wires mainly based on the insulation colors. Wiring letters and colors help them to choose the right wire to connect to the correct terminal on the thermostat.
Where does the C wire go on a thermostat?
If you have a C wire, place it into the C terminal on your wall plate. Let’s take a look at the G wire. This wire will go to the G terminal on your new thermostat. For the Y, Y1, and Y2 wires, Y or Y1 will go to the Y terminal, and Y2 will go to the Y2 terminal. The O/B wire can have many configurations.
Emerson offers a thermostat common power extender kit, like the ecobee PEK. It makes possible to run a C-Wire when any sort of extra wiring isn’t an option. This adapter seems to be variation of Add-A-Wire kit mentioned above.
Y1 wire controls 1st stage cooling and W2 controls 2nd stage cooling. As you can see technicians selected the names for the wires mainly based on the insulation colors. Wiring letters and colors help them to choose the right wire to connect to the correct terminal on the thermostat.
Where are the your and G terminals on a thermostat?
R Terminal is Connected to the Red Wire or R Wire – this is 24-volt power for the thermostat and controlled devices. Origin is the control transformer and then the R Terminal. G Terminal is connected to the Green Wire or G Wire – This is for the blower fan in the air handler.
