Disk Size (GB)Rebuild Timeraid5 with 1 hotspareDLO/y50013 hours, 53 minutes1 in 12.610001 day, 3 hours1 in 7.820002 days, 7 hours1 in 4.6

How long does it take to build a RAID 5 array?

With RAID 5, rebuilding a 2TB array (built from 500GB drives) drive can take as long as 134 hours—that’s more than five days—if you expect to keep using your system while the rebuild occurs. For a 40TB array (built from modern 10TB drives), that time turns into a whopping 4,200 hours, or nearly six months.

Does RAID 5 auto rebuild?

When a hard disk drive goes defunct (DDD), a Rebuild operation is required to reconstruct the data for the device in its respective disk array. Only RAID level 1 and RAID level 5 logical drives are reconstructed.

How long does it take to rebuild RAID?

What’s The Estimated Time for RAID Rebuild? For a 300 GB hard drive, it takes 1 hour, 450 GB, 1.5 hours, 600 GB, 1.8 hours. For SAS type hard drives with 15,000 revolutions per second, the estimated RAID reconstruction time for a 300 GB hard drive is 1 hour, 450 GB, 1.5 hours, and for 600 GB, 1.8 hours.

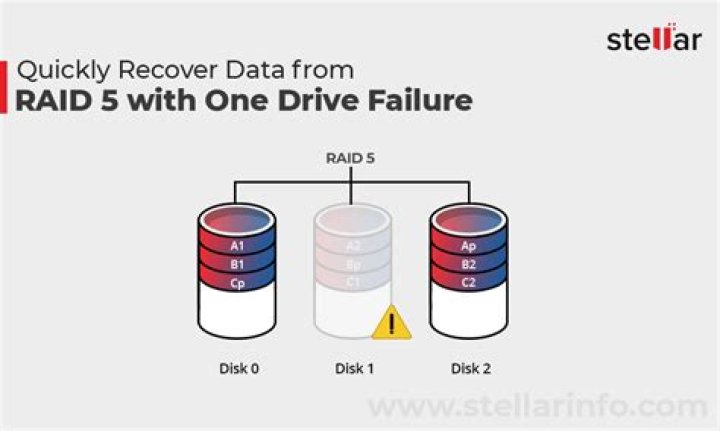

Can RAID 5 be recovered if one disk fails?

RAID 5 protects the data with parity information distributed on all member disks. The data can be recovered from the remaining disks if one disk fails.

How long does it take to setup a raid?

Depending on the RAID level selected and size of hard drives, a RAID configuration can take from 24-40 hours to complete. When setting up a RAID level the green System Status LED should turn solid amber indicating the RAID is not configured and then turns solid green indicating RAID initialization is complete.

How long does a raid 10 rebuild take?

A smaller RAID array can be rebuilt in just a few hours, while more complex ones can take well over 24 hours.

How do I know if my raid is rebuilt?

  1. Log into the Platform Web interface as a user with Admin privileges to the Storage Groups page.
  2. A rebuilding storage group will show as an orange color. …
  3. Select the “Properties” menu.
  4. The rebuild status will display as a small line in the bottom right listed as “Status” (See attached image)

How many disks can you lose in RAID 5?

Only 1 disk failure is allowed in RAID5. If 2 disk fails data cannot be retrieved.

How do I fix a failed RAID 5 drive?
  1. Attach all failed disks to the bootable disk.
  2. Recover content to the recoverable storage disk.
  3. Replace the existing disk with working drives.
  4. Rebuild and configure RAID as a duplicate of the original.
Article first time published on

Does rebuilding RAID array erase data?

Even if two RAID disks go down, you have nothing to worry about. If you do not have any backup, be sure to use RAID Recovery software to recover data from a damaged RAID disk. Because after rebuilding a RAID 5 array, the data will be overwritten; i.e., it will disappear forever.

Will RAID automatically rebuild?

A normal RAID will have nowhere to rebuild into when the disk fails, it will only rebuild when a new good disk will be placed in its stead.

How often does RAID 5 fail?

But even today a 7 drive RAID 5 with 1 TB disks has a 50% chance of a rebuild failure. RAID 5 is reaching the end of its useful life.

How many drives minimum does it require to have a RAID 5 set?

RAID 5 provides fault tolerance and increased read performance. At least three drives are required. RAID 5 can sustain the loss of a single drive. In the event of a drive failure, data from the failed drive is reconstructed from parity striped across the remaining drives.

How many drives can fail in RAID?

A standard four-disk RAID 10 setup can only withstand one drive failure in each mirrored pair of disk drives. Otherwise, total data loss occurs. And as with the standard two-disk RAID 1 configuration, total storage capacity of RAID 10 is halved.

Which RAID rebuilds fastest?

Advantages of RAID 10 If something goes wrong with one of the disks in a RAID 10 configuration, the rebuild time is very fast since all that is needed is copying all the data from the surviving mirror to a new drive. This can take as little as 30 minutes for drives of 1 TB.

Can you rebuild RAID 0?

Rebuilding RAID 0 without losing data is a challenging task because it lacks fault-tolerance. This RAID is sensitive and has a high risk of losing entire data in case of a drive failure. However, you can rebuild it and recover all data if member disks still move.

How do I recover a RAID drive?

  1. Scan the RAID drive. Choose the RAID drive from which you wish to recover data, and then click “Scan”. …
  2. Find and preview lost RAID files. You can use “Filter” as quick navigation to find lost files. …
  3. Restore lost RAID drive files. Select the wanted files and click “Recover”.

How long does it take to create a raid 1?

To answer your base question, the creation of the RAID set is usually about 20 to 30 seconds. That is all. Try smaller drives. Or get crazy and partition the drives and then raid the partitions.

What does raid initialization do?

When you initialize you are setting the partition size and then you would format that partition. If your drive is already partitioned and formated then windows will see it. If you are building a computer or changing your hdd setup and you create a raid and then load Windows 7 it will partition and format the drive.

Why is RAID 5 bad?

Using RAID 5 is portrayed as an unreasonable risk to the availability of your data. … As you know RAID 5 can tollerate a single drive failure. If a second drive dies and the first drive was not yet replaced or rebuild, you lose all contents of the array.

Which is faster RAID 5 or RAID 6?

In general, RAID 6 offers greater data protection and fault tolerance than RAID 5, but at the same time, it’s write performance is slower than RAID 5 because of double parity, though the read operations are equally fast.

Which RAID level is best?

RAID 10 is a combination of RAID 1 and 0 and is often denoted as RAID 1+0. It combines the mirroring of RAID 1 with the striping of RAID 0. It’s the RAID level that gives the best performance, but it is also costly, requiring twice as many disks as other RAID levels, for a minimum of four.

How do I fix RAID failure?

  1. Turn off the computer.
  2. Replace the failed hard drive with a new hard drive of equal or greater capacity.
  3. Turn on the computer. …
  4. Click 2. …
  5. Use the up or down arrow keys to select the failed RAID 0 volume.
  6. Press Delete to delete the volume.
  7. Press Y to confirm the deletion.
  8. Click 1.

How do I fix RAID degradation?

Go to Storage > Storage/Snapshots. Select your Storage Pool or Static Volume and click on the “Manage” button. Select the degraded RAID group section and click “Manage” and then “Configure Spare Disk”. Select the new drive and click Apply.

Can you create a RAID array without losing data?

It depends on your RAID solution. Many RAID solutions format a disk when constructing a RAID or adding a new disk. Desktop versions of Windows Windows have a built-in software RAID capability which will attempt to preserve your data during conversion.

How do I know if my RAID disk failed?

Look in the syslog, and look at /proc/mdstat to see how the RAID is doing. Did it work? Faulty disks should appear marked with an (F) if you look at /proc/mdstat . Also, users of mdadm should see the device state as faulty .

How do I add a hard drive to my RAID 5?

  1. Right-click on the RAID 5 volume, select “Resize/Move”.
  2. Drag the RAID 5 right handle to add unallocated space into the volume and click “OK” to confirm.
  3. Click the “Execute Operation” and click “Apply”.

Can RAID 5 recover from a two disk failure?

If a second disk in a RAID level 5 disk array fails, you must replace the failed disks, then delete and recreate the disk array. … You must then recreate the file systems on the disk array and copy data to the restored disk array from your backup media.

Can RAID 5 Use 2 drives?

You can indeed run a RAID 5 with only two drives but it’s degraded and a single bit failure on either drive will bring down that RAID. Dell calls this a RAID Puncture and the only recovery is to restore from backup.

What happens if RAID controller fails?

If your RAID controller fails, your data may or may not be accessible, even if there is no damage to the hard drive’s magnetic platters – it all depends on the level of RAID. … This means that one disk in the array can fail and the inherent ‘redundancy’ will automatically recover all the data within the controller.
