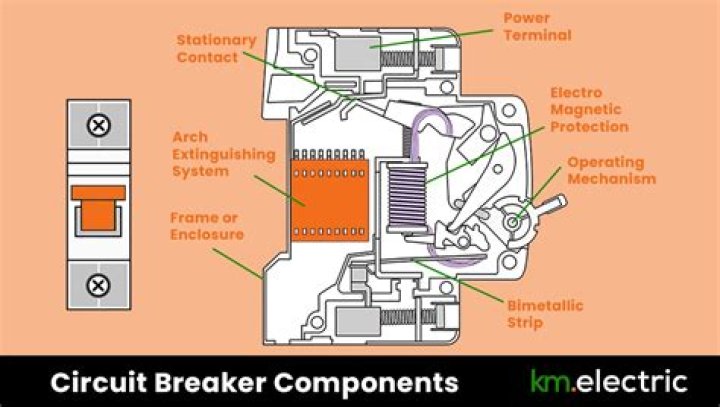

How does a DC circuit breaker work?
DC circuit breakers automatically shut off the power when a circuit is threatened of becoming overloaded. This protects the electrical circuit and all devices using the power from damage. The breaker detects a fault and immediately interrupts the continuity in the electrical flow.
Why do I need a breaker on my battery?
Incorrect, because you have bus bars. That means the charge controller and inverter (as well as any other DC loads) connect to the bus bars. The breaker on the battery will protect output to everything, but not to the individual circuits that branch off from the bus bars.
How does a circuit breaker in a house work?
How Does a Circuit Breaker Work? A circuit breaker is an important safety device that works by cutting off the flow of electricity through a circuit whenever it gets too high. Fires, shocks and other accidents would be much more common if modern homes weren’t fitted with circuit breakers and their alternative, fuses.
Which is the correct current for a circuit breaker?
As circuit breakers (CBs) and Overcurrent Protection Devices (OCPD) are designed for 100% rated current i.e. a 30A circuit breaker can safely carry the exact 30A current but NEC suggests 80% as a safe current limit as compared to the rated current of CBs.
What causes a circuit breaker to trip or blow?
A short circuit happens when a hot or active, electrical wire and a neutral wire touch, causing a large amount of current to flow and overload the circuit. A short circuit should always cause a breaker to trip or a fuse to blow and may also cause sparks, popping sounds and possibly some smoke.
Do you need a circuit breaker for a starter motor?
A source of power, in this case a battery or multiple batteries. Overcurrent protection, a fuse or circuit breaker. The only exception to this rule is for engine starter motor circuits, although some builders are now installing breakers in those circuits as well. A switch, which is often integral with the circuit breaker at the DC panel board.
As circuit breakers (CBs) and Overcurrent Protection Devices (OCPD) are designed for 100% rated current i.e. a 30A circuit breaker can safely carry the exact 30A current but NEC suggests 80% as a safe current limit as compared to the rated current of CBs.
How big of a circuit breaker do I Need?
For example, a 30 amp circuit breaker will trip at 30 amp no matter if is it continuous or non continuous load. That’s why we must select 20-25% higher size of current for circuit breaker than the flowing current in the cables and wires to the connected device.
Can a 30A circuit breaker be used for continuous load?
An exact 100% rated for 30A circuit breaker can be used for 30A non-continuous load. In case of continuous load, rate of %125 is applicable. An over sized breaker used for protection can damage the water heater or other connected appliances even leads to the fire due to overheat.
