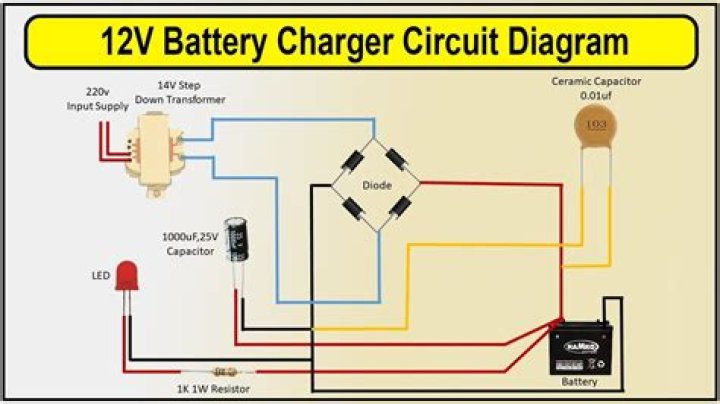

How does a car charger circuit diagram work?
Let’s have a look at the circuit diagram. The voltage supplied by our charger’s transformer is rectified by diodes D1 and D2 but is not smoothed. Strange as it may seem, this is vital for it to work properly, because as a result the rectified voltage consists of a succession of sinewave half-cycles, and hence falls to zero 100 times per second.
How is the power dissipated in a charger calculated?
Given the value of the other elements in the circuit (D1, D2, TR1, and the fuse), do not exceed 5 A. The power dissipated in R6 can be calculated from PR6 =36 / R6 with P expressed in watts and R6 in ohms, of course.
What kind of charger does a magnum inverter use?
Basic Layout Magnum Inverter With Solar Charging Demo Electrical System Layout With Victron 24 Volt Multiplus Inverter Charger Solar Panels And Generator 2000w Inverter 200 400ah Lithium 200w 520w Solar High Res Wiring Diagram Explorist Life Inverter Installation Motorhome Home Wiring Diagram
How does an Auto Charger charge a battery?
When thyristor THY2 is conducting, the battery is effectively charged, the charging current being limited only by resistor R6, which has to be calculated as shown below. This thyristor is triggered via resistor R4 for each half-cycle of the mains, except when thyristor THY1 is itself triggered.
Are there any cheap mobile charger circuit diagrams?
The market is flooded with cheap mobile charger circuit. Some of you may be looking for this type of charger circuit diagram and components list. These mobile chargers uses only few parts, very simple design. But there’s a drawback too, they got damaged easily.
Is the charger circuit the same as the transformer?
First of all, lets have a look at the charger’s circuit diagram. As transformer is a bit odd, so I’ve also decided to draw it by hands. Unfortunately every charger circuit is not same, some of them contains few extra capacitors or resistors. But even though, you can get a clear overview of the mobile charger circuit from the above diagram.
How does a solar battery charger circuit work?
This solar battery charger circuit has auto cut off function so it will automatically stop charging when the battery become full charge… This is a circuit of a simple single cell li ion battery chager. This lithium ion battery charger circuit uses a LP2931 regulator IC…
How many amperes does a 12V battery charger use?
This is a schematic diagram of a full automatic 12v battery charger for charging the batteries of automobiles etc. This circuit has a maximum 2 amperes charging rate… The circuit is able to charge 2.4V, 4.8V, and 9.6V NiCd batteries.
