How do you replace a Bal ACCU slide?
Solution: 1. Remove the tension from the cable via the cable adjustment nut. 2. Remove the screws from the standoff bracket and adjust to the appropriate location. 3. Re-attach standoff bracket and adjust cable tension. 4. Replace the cable if it has become frayed.
How to adjust the cable on an Accu slide out system?
Having issues with cable driven slide outs, having a hard time adjusting them. I cannot find any information on how to do it either on video or manual form. Any suggestions? RV slide outs can be powered in a few different ways.
What causes Cable to kink on Bal ACCU slide?
Cause 3:Improper stand-off bracket alignment (cable is kinked) Solution: Loosen cable nut to allow slack. Remove screws from stand-off and align cable with slot. Re-attach standoff. Adjust cable tension. 3 Service ManualPrinted in the U.S.A. I. Troubleshooting BAL Accu-Slide™ System 4 Printed in the U.S.A. Service Manual
Where does the sticker go on a Bal ACCU slide?
Shipped with your system is a sticker that should be placed near the slide for instructions on adjusting this system. You will notice each cable-chain connector has a colored tag on it corresponding to the colors of the sticker above. The example diagram below is showing the association between cable adjusters and cables.
Solution: 1. Remove the tension from the cable via the cable adjustment nut. 2. Remove the screws from the standoff bracket and adjust to the appropriate location. 3. Re-attach standoff bracket and adjust cable tension. 4. Replace the cable if it has become frayed.
Is the Norco slide out system leak proof?

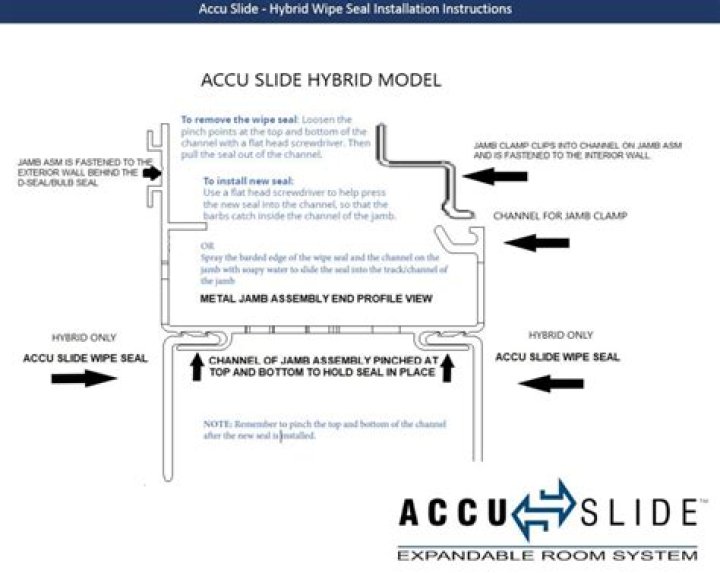

As with any slide out system, special attention must be paid to water management. Without proper seals, no system is leak proof. However the Accu-Slide system lends itself to making this job easier by pulling tight at all four corners.
What causes Cable to break on Bal ACCU slide?
Cause 2:Cable is loose from connector bracket Solution: Open access panel, loosen nut on loose cable and attach to bracket, then adjust. (refer to section 2.02) Cause 3:Drive chain has too much slack Solution: Open access panel & tighten adjustment nuts. (refer to section 2.02) Cause 4:Broken Cable BAL Accu-Slide™ System I. Troubleshooting 3
Why is my Bal ACCU slide making a grinding noise?
Cause 3:Improper stand-off bracket alignment (cable is kinked) Solution: Loosen cable nut to allow slack. Remove screws from stand-off and align cable with slot. Re-attach standoff. Adjust cable tension. I. Troubleshooting BAL Accu-Slide™ System 4 Prin ted in the U.S.A. Service Manual PROBLEM: Loud grinding noise when room operates.
