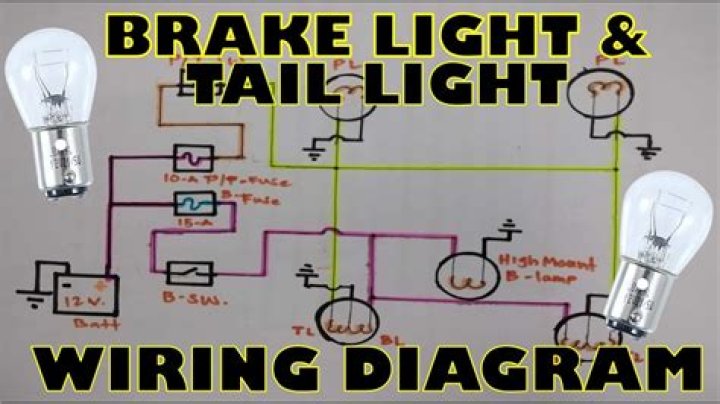

How do you check a tail light circuit?
Test the tail light bulb socket with a digital multimeter Touch the black probe to a clean metal surface. Then probe the two terminals in the socket. You should see +12 volts. If the test light doesn’t light, power isn’t getting to the socket.
How do you check a tail light with a multimeter?
Press the red probe for the multimeter against the electrical connections inside the light bulb socket. If the vehicle is a 12-volt system, the multimeter should register 12 volts. Vintage cars often ran on 6-volt systems and commercial trucks routinely work on 24-volt systems.
How do you check car lights with a multimeter?
Here’s the deal
- Remove the plastic or glass cover on your car to get to the bulb.
- Unscrew the bulb out of the socket and take the multimeter.
- Set the multimeter to continuity mode.
- Place black probe to the negative side of the bulb.
- Take the red probe and for a moment press it against the positive pole.
How can I tell if my tail lights have a fuse?
When you have located the fuse for the tail lights use a fuse tester to check the connection. If the tester lights up – your fuse is functioning fine. If it does not light up then, replace the fuse with another of the similar amperage and size. In many instances, you can see the break in the metal strip of the fuse.
What to do if your tail light is not working?
Once the fuse that controls your tail lights is identified, it can be tested using a fuse tester, which will light up if the fuse is good. If it doesn’t light up, the fuse should be replaced with one of the same size and amperage.
What are the relays for a tail light?
1. TAIL fuse 2. TAIL relay (USA only) 3. Headlamp dimmer switch assy 4. Daytime running light relay (USA only) 5. Wire harness The tail lamp relay is relay number B, 2md from the left in the RH junction box 15. TAILLAMP RELAY (a) Measure the resistance according to the value (s) in the table below.
Can a multimeter be used to check a tail lamp?
Tail lamps for cars, trucks or motorcycles can be easily checked for proper operation using a standard multimeter. These tools allow you to diagnose problems with vehicle electrical systems by determining where the problem with your lights may be at. Rather than just checking the terminals inside…
Once the fuse that controls your tail lights is identified, it can be tested using a fuse tester, which will light up if the fuse is good. If it doesn’t light up, the fuse should be replaced with one of the same size and amperage.
When do you need to replace a tail light fuse?
On most new cars, the fuse would have to be removed to be checked due to the arrangement of the fuses. If the piece of metal inside the taillight fuse is intact, the fuse is still good. If the piece of metal looks broken or fractured, the fuse is blown and will need replacing.
Can a tail light be connected to a left turn signal?
Thinking fast, I removed the opposite tail light assembly and connected it to the left side connector I had removed. The left turn signal worked fine when connected to the right tail light. Problem solved! Almost. I was very grateful the tail light wiring issue was not somewhere in the truck.
Tail lamps for cars, trucks or motorcycles can be easily checked for proper operation using a standard multimeter. These tools allow you to diagnose problems with vehicle electrical systems by determining where the problem with your lights may be at. Rather than just checking the terminals inside…
