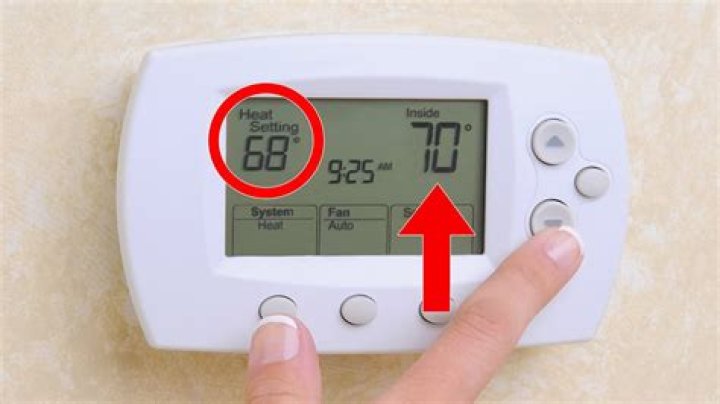

How do I troubleshoot my thermostat without power?
Follow these four easy steps to troubleshoot a thermostat not getting power.
- Make sure the thermostat is turned on.
- Replace the batteries.
- Check the circuit breaker panel.
- Open the thermostat housing and make sure it’s clean.
How do I reset my electric thermostat?
A common way to reset almost any thermostat is to hold down the reset button for 5+ seconds. Alternatively, try resetting battery-powered thermostats by flipping the battery directions around for 5s, then flip them back. If all else fails, switch off the power at the circuit breaker for a couple minutes.
Is there a wiring diagram for a thermostat?
It is written for the “give a man a fish” crowd. They provide no wiring diagram or troubleshooting table, that’s all I need. A thermostat is just a simple switch triggered by a temperature monitor. The furnace does the fan delay on its own, it just needs a run signal.
When do you disconnect a digital thermostat?
Set Temperature Value to 40°C. Set CP value to 10°C. The relay will be connected when the temperature reaches 50°C (set temperature value+CP value). And the relay will be disconnected when the temperature drops to 40°C. Front panel size: 75 (L) x 34.5 (W) (mm) Mounting size:71 (L) x 29 (mm) Product size:75 (L) x 34.5 (W) x 85 (D) (mm)
Do You need A C terminal for a thermostat?
If you are replacing an old thermostat with a new digital thermostat, the electronics in these units may need yet another wire for a terminal labeled ‘C’. This terminal is for a common connection from the control transformer that will provide steady 24 volt power between terminal ‘R’ and ‘C’ to power the thermostat itself.
How do I set my digital thermostat to D Code?
Press “SET” key and hold more than 3 seconds to enter the menu display, with “▲” or “▼” key adjusted to the screen, appearing “D” code, press the “SET” key to display the hysteresis set value, press “▲ “Or”▼”key to adjust the parameters.
What to do if your digital thermostat does not work?
The back display light for the digital thermostat does not function but the air conditioning and heating system works fine. Check the batteries as some digital thermostats require AA or AAA batteries for the back light to function on the thermostat.
How to troubleshoot a broken thermostat at home?
Troubleshooting Broken Thermostats 1 Check the power circuit at the circuit breaker and the HVAC equipment. 2 If the thermostat is battery-powered try replacing the batteries on the thermostat. 3 Make sure to double-check the components and settings in the program for a digital thermostat. 4 Check for drafts and other location problems. More
Why does my thermostat not sense room temperature?
You want the thermostat to sense room temperature and not be influenced by direct sunlight or other heat sources. Additionally, thermostats installed where direct sunlight can hit the thermostat is going to be a problem also. This will give you false readings and cause your heating and cooling HVAC system to run erratically.
When does the thermostat send a 12VDC signal?
When the need for Cooling or Heating exists the thermostat sends a 12VDC(+) signal to the control relays or a P.C. board which in turn energizes the air conditioner components or the furnace. (Note: Relays and P.C. boards will be further discussed later in lesson II).
