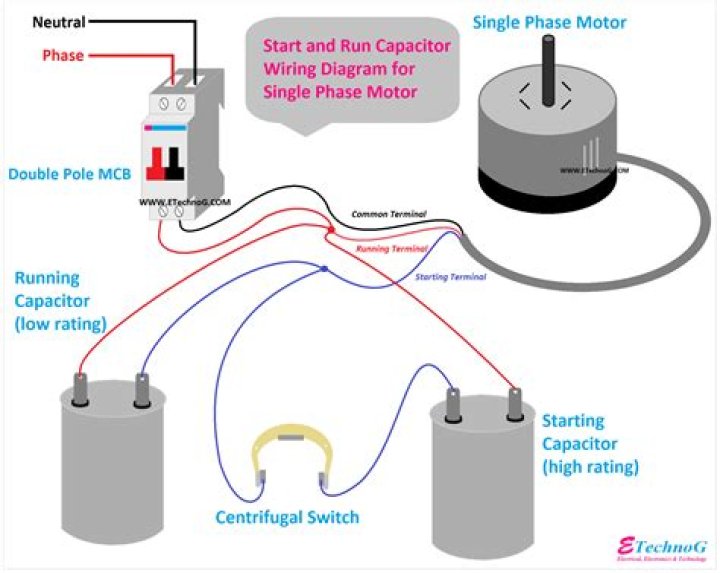

How do I know if I need a run or start capacitor?
The voltage classifications are 370V and 440V. Capacitors with ratings above 70 microfarad (uF) are starting capacitors. Run capacitors are designed for continuous duty, and are energized the entire time the motor is running. Single phase electric motors need a capacitor to energize a second phase winding.
What is compressor run capacitor?
The run capacitor is one of two types of capacitors that could be found on single-phase compressors. The run capacitor is used to improve the running efficiency of a compressor’s motor. The run capacitor is placed in series with the start winding of the compressor and will remain in the circuit as the motor operates.
How does a compressor start capacitor work?
The starting capacitor works by “accumulating” a large electrical charge inside the capacitor. During compressor or other motor startup, the start capacitor releases its charge to give a voltage “boost” to get the electric motor spinning.
What does the start capacitor on a compressor do?
The purpose of the start capacitor is to help the compressor get going. If your compressor motor also has a run capacitor, that one helps to keep the motor running. The start capacitor cover on your compressor motor may look the same as the one shown in the photo, or might differ slightly.
When do you use a run capacitor on a motor?
Also, most motors have a start capacitor, which is only used to START the motor. The capacitor and the start windings are only used to get the motor up to speed. A few motors (usually the bigger ones) also have a run capacitor.
What happens if capacitor on air compressor is too low?
If your replacement capacitor is too low the air compressor will not start, if it’s too high then you are likely to cause electrical faults. The last thing you need to figure out is whether or not the new capacitor will fit on your compressor motor.
Where can I buy a capacitor for my air compressor?
A simple Google search string such as “buy capacitor for _ air compressor” will typically return a number of sources. Pick one that suits you according to the details noted above, and you are in business. If you’re unsure if your capacitors are being problematic then check out our how-to test air compressor capacitors page.
Where is the start capacitor on an air compressor?
It may be under a motor capacitor cover. Some air compressors more than one start capacitor. Each compressor will have a start capacitor while some have a start and run. Others have a combination of start/run capacitors.
How to fix a bad capacitor in a compressor?
Strip the insulation off the ends of the wires. While touching one wire to one terminal and the other wire to the other terminal of the run cap, turn on the compressor. Quickly pull these wires off the run cap. If the compressor starts and run normally, chances are you have a bad potential relay and/or start cap. Want to narrow it down even more?
Also, most motors have a start capacitor, which is only used to START the motor. The capacitor and the start windings are only used to get the motor up to speed. A few motors (usually the bigger ones) also have a run capacitor.
What do you need to know about Start capacitors?
Start Capacitors Start capacitors are the second most commonly found capacitor within an AC system. Without a start capacitor, your AC will not start up at all, as it is the start capacitor that provides the initial energy needed for start-up.
