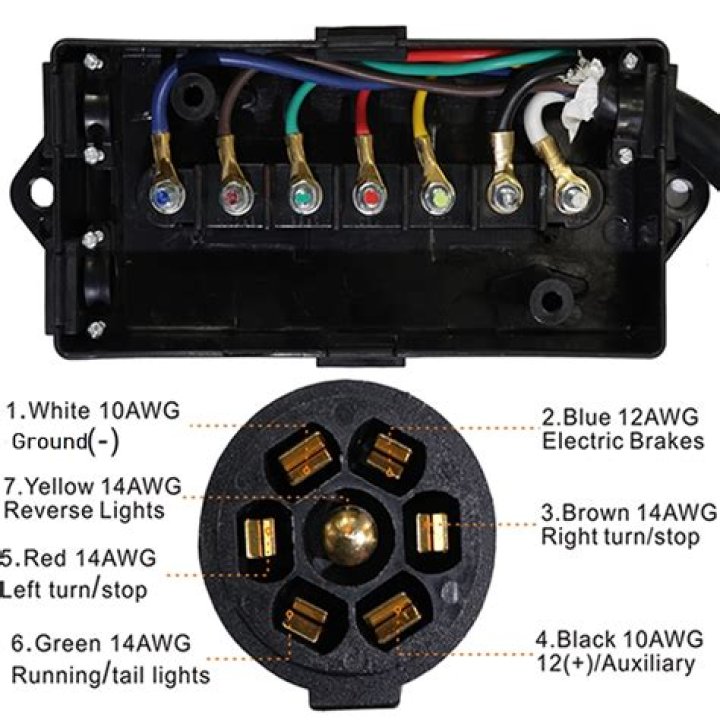

How big of a wire gauge do you need for a 7 way trailer plug?
Red: Left turn/brake light What Size Wire Gauge is Used for a 7-Way Wiring Harness? The minimum suggested wire size for a 7-way trailer plug is 16 gauge for the turn signals, brake lights, reverse lights, and running light wires. The suggested minimum for the ground, brake power, and battery hot lead wires is 12 gauge.
Is the trailer hitch wiring what I think it is?
If this is correct (and as the Norwegian diagram seems to indicate) there is probably another module that is the actual trailer lights interface that converts LIN bus trailer light signals to switched voltages for the trailer lights.
Can a 7 pole trailer plug be replaced?
Replacement 7-way plug installed on vehicle OEM connector. Relevance Newest Rating – High to Low Rating – Low to High This 7-pole, sealed, RV-style trailer connector plugs into the factory socket on your truck or SUV. Connector is an exact OE replacement on Chevy, Ford, GMC and Nissan.
Where are the plugs for the trailer lights?
The plug-in location is typically near the taillights, underneath the vehicle, or behind the paneling in the back cargo area. You may have to remove your trim access cover, scuff panels, taillights, etc. in order to access the plug.
Do you need a 4 Way Plug for a trailer?
A 4-way plug connects your trailer and tow vehicle and provides the required running lights, turn signals, ground, and brake lights. Most of us aren’t electricians, but that doesn’t mean wiring a trailer or replacing corroded wiring is beyond us.
How to choose the right trailer wiring connectors?
With all the different shapes and sizes of connectors it’s not always easy when it comes to trailer wiring and choosing the right one for your application. Trailer or towed vehicle wiring can be confusing with all of the different purposes for connectors that you might not be aware of.
How do you test a 7 pin trailer plug?
You can then move the red probe into the first light slot – let’s pick the middle right slot in the plug for the right brake light. Ask the person assisting you to then press on the brake light. If the pin wiring for that is working correctly you should see 12 volts appear on your screen.
What kind of wire do you need for running lights on a trailer?
Traditionally, the running light circuit (typically the brown wire) is carried on a single wire, so a jumper wire and some additional butt connectors are required to feed the running lights on the opposite side of the trailer. As a simpler alternative, you can use a wishbone harness (also known as a Y harness) such as this one.
