The Sensi Wi-Fi Programmable Thermostat works on most combined heating and cooling systems without a c-wire. The Sensi Smart Thermostat also works on most combined heating and cooling systems without a c-wire, however, will require a c-wire for Apple HomeKit functionality.
Can I install Sensi thermostat without C wire?
The Sensi Wi-Fi Programmable Thermostat works on most combined heating and cooling systems without a c-wire. The Sensi Smart Thermostat also works on most combined heating and cooling systems without a c-wire, however, will require a c-wire for Apple HomeKit functionality.
What if my thermostat has no C terminal?
If your current thermostat didn’t need a C-wire, it (or a wire that can be used as a C-wire) might be rolled up inside the wall. … This wiring indicates a line voltage system, and you’ll need an adapter or a smart thermostat designed for line voltage.
Does Sensi touch require a C wire?
The Sensi Touch smart thermostat always requires a c-wire. On heat-only or cool-only systems, Sensi thermostats require a c-wire.Do all thermostats require C wire?
A common wire (C-Wire) provides Wi-Fi thermostats continuous power by connecting it to a heating and cooling system (e.g. furnace). C-Wires are required on most Honeywell Wi-Fi thermostats, with the exception of the Smart Round Thermostat (formerly known as the Lyric Round).
How does Sensi thermostat get power?
Sensi Touch requires a “C” wire to provide 20-30VAC to power the thermostat. Sensi does have a battery powered light in the sub-base for installation, but that light will only last for about an hour, and is not an indicator that there is power to the thermostat. Without system power, Sensi Touch will not turn on.
Is C wire the same as RC wire?
The C wire, or “common wire” enables the continuous flow of 24 VAC power to the thermostat. Technically speaking, power flows from the R (red) wire, but not continuously (not on its own, anyway).
Do I need batteries in my Sensi thermostat?
For Sensi Wi-Fi Touch Thermostat, all system types require a common wire (c-wire). Two AA batteries (included) provide backup power that can last for months.What color is the C wire on a thermostat?

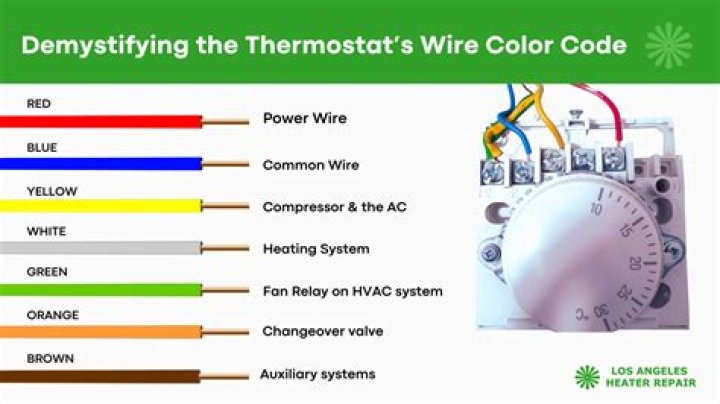

Blue wires are also called “C” wires because they are the Common wire. C wires are necessary for any “smart” thermostat that needs to be connected to a power source 24/7, regardless of your heat pump type.
What is the purpose of the C wire on a thermostat?A C-wire, or a common wire, runs from your low voltage heating system (24v) and carries continuous power to your thermostat. In today’s electric market, most newer heating and cooling systems have C-wires, which guarantees compatibility for the installation of all smart thermostats.
Article first time published onIs the C wire blue?
For the thermostat to work properly, the red wires must be connected to the correct corresponding terminal. The C, or common wire, provides smart thermostats with continual power. It’s usually blue, but it may also be black, brown or purple. The O or orange wire connects to your heat pump (if applicable).
Do I need a jumper from R to RC?
If you have a wire in the R terminal, and no wire in the RC terminal, use the jumper selector switch, the jumper plug, or a small jumper wire to connect the R and Rc terminals. … If you have a wire in the R terminal, and another wire (not a jumper) in the RC terminal, you will not need to connect the R and RC terminals.
What does R and W mean on thermostat?
W wire – heat. R wire – heat power. W wire – heat.
Does the C wire provide power?
Typically, the wires that provide the power (often called the “hot” wires) are labeled Rc (cooling) and Rh (heating). They provide a source of 24V power coming from the HVAC control board. … That’s what the other wires do. So, the c wire doesn’t actually provide the power.
What wire is used for thermostat?
The most common thermostat cabling is 18/5 (18 gauge, 5 conductor), because 5 conductors typically offer enough functions for a modern thermostat/low voltage device.
Where does R wire go on Sensi thermostat?
Sensi thermostat has a built-in RC/RH jumper wire on the back of the thermostat face plate. Clip the RC/RH jumper wire on the Sensi thermostat if you have two separate wires (one running to RH and the other to RC) on your old thermostat that are coming from the wall.
Where does the K wire go on a Sensi thermostat?
2. Install the K wire to the G terminal of Emerson thermostat. The other 3 wires will be used to R or RH, Y and W terminals. Typically, a Red wire is used for R or RH, White to W and Yellow to Y terminal.
What is AC wire adapter?
OVERVIEW. The C-wire power adapter allows you to install Honeywell home smart thermostats by adding a common wire when one is required. Quickly and easily power connected thermostats that require a c-wire. Use for Wi-Fi, 24v thermostats when a common wire is needed but not present.
How do you c wire a boiler?
It’s pretty simple actually. When a thermostat calls for heat, the valve for that zone opens, and the boiler is also signaled via the auxiliary switch in the valve. To get a C wire to one or more of the thermostats, you’ll simply run a wire from the other side of the transformer on the wall.
Where is the C wire on a thermostat?
Simply remove your current thermostat face from its baseplate and look for the terminal labeled with the letter “c.” If this terminal has a wire attached to it, you have an active “c-wire.” If you don’t see a wire connected to your “c” terminal, you have a few options.
Why is my C wire Brown?
A brown wire is mostly likely a heat pump wire and should be connected to the O/B connector on the Nest thermostat. If the B wire is blue, it should most likely be connected to the C connector.
How long do batteries last in Sensi thermostat?
My house’s thermostat wiring was a very basic four-wire setup with no C wire, which provides power for some new-fangled thermostats. The Sensi runs on two AA batteries, so it doesn’t need a separate power wire. The batteries should last more than a year, and there’s a battery level icon on the Sensi’s display.
Can I use a Sensi thermostat without WIFI?
Yes, Sensi thermostats are designed to control your heating and cooling even if you lose Wi-Fi connection. If you are running a schedule when you lose internet access, Sensi will continue to run the current schedule.
Why did my carrier thermostat go blank?
Thermostat Batteries Died and Need to be Replaced If your thermostat is blank, the first thing you should do is check the batteries. Chances are, the batteries have died and the thermostat simply can’t power on. Replace the batteries and see if your thermostat turns on.
Is white wire always neutral?
The white wire is the “neutral” wire, it takes any unused electricity and current and sends it back to the breaker panel. The green wire (or it can sometimes be uncolored) wire is the “ground” wire, it will take electricity back to the breaker panel, then outside to a rod that’s buried in the ground.
What color is the common wire?
Red, Black, and White are the colors of switch wiring for three-ways. Red and Black are connected to the switches if the White is used for neutral. The White is often referred to as Common, but the colored wires are also used as hot wires.
What is the Blue C wire on a thermostat?
The Blue or C Wire C wires or varying colors apply to every thermostat, but blue C wires belong to thermostats attached to a heat pump. Blue wires are for heat pumps. This wire connects to terminal B on your thermostat.
What color is common wire on furnace?
Blue or Black – C – The common wire. Red – R – 24 VAC power from the transformer in your furnace. Red – Rc – 24 VAC provides power to Cooling.
How many wires does a thermostat need?
The most basic thermostat has 2 wires; usually a red and a white wire. Two wire thermostat wiring is used for furnaces only and usually doesn’t need a “C” or “Common” wire.
