Does it matter which way trailer brakes are wired?
The brakes are not grounded, so the wires coming out of the back of the brakes does not have polarity ( no hot or ground). It does not matter which wire you connect to which wire, only that they are not connected to each other! Run a the two conductor wire to each brake, and hook to the two wires on the brake.
What is a trailer brake controller and how does it work?
What is a Trailer Brake Controller and How Does it Work? A trailer brake controller is a small electronic device that installs in your tow vehicle’s cab and activates your trailer brakes via an electrical signal whenever you apply your tow vehicle brakes.
What kind of brake controller do I need for towing?
The next step is choosing the type of brake controller that best suits your towing needs. Brake controllers can be categorized by two main types: proportional and time-delayed. These categories have to do with the intensity and consistency in which the controller applies your brakes.
How does a time delayed brake controller work?
A time-delayed brake controller applies your trailer’s brakes when the brake pedal in your tow vehicle is engaged. Every time you apply the brakes in your tow vehicle, a signal is sent – via the brake switch – to the brake controller.
What are the different types of brake controllers?
Brake controllers can be categorized by two main types: proportional and time-delayed. These categories have to do with the intensity and consistency in which the controller applies your brakes. Most newer brake controllers are proportional, and most users will opt for one of these.
Where to wire electric brakes on a tandem axle trailer?
It does not matter which wire is used for power or ground because they are not polarized. If the trailer wiring is running down the left side of the trailer, then we splice the left side brake assemblies into the main electric brake power wire coming from the 7-way connector.
How big of a wire do I need for trailer brakes?
Another way is to have an adapter that goes from the trailer 5-pin to a standard 7-pin (with 2 wires left blank). That way the trailer brakes are ready, if the tow vehicle has a 7-pin connector. Size: Don’t skimp on wire size for your brakes. For a single axle, 14 gage is good, but for tandem axles, use 12 gage wire.
Why does my truck say service trailer brake system?
So after about 5 months of dealing with the stupid “service trailer brake system” message on the display every time the truck was started as well as random points while driving with and without a trailer, I decided to dig into it. After reading other posts and stories of dealer guess work, I was given a good head start.

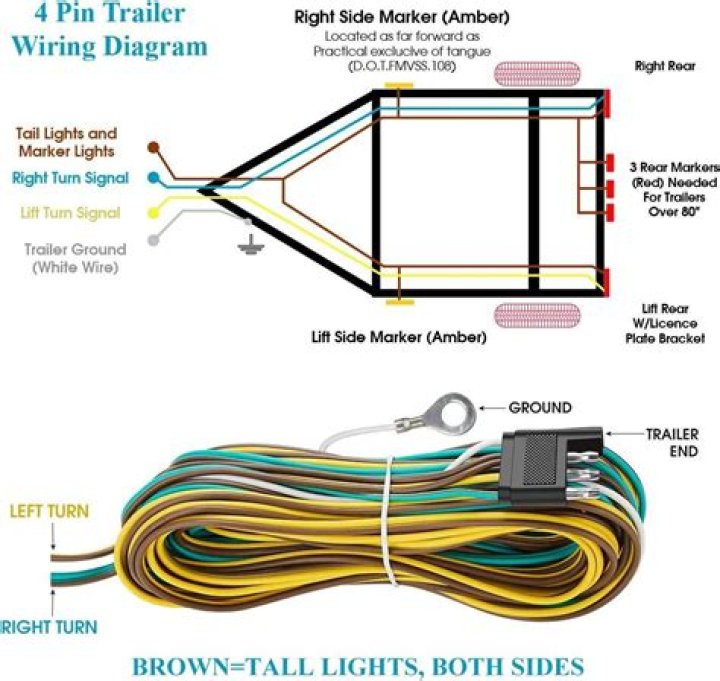

What are the different wires in a trailer?
Only the (blue) brake and (white) ground wires are different. You can expand the same conditions for more axles. Use only the needed wires, and ignore the others. For example, if you don’t need Auxiliary Power, just leave it out. If the axles do not have brakes, then no need for that.
